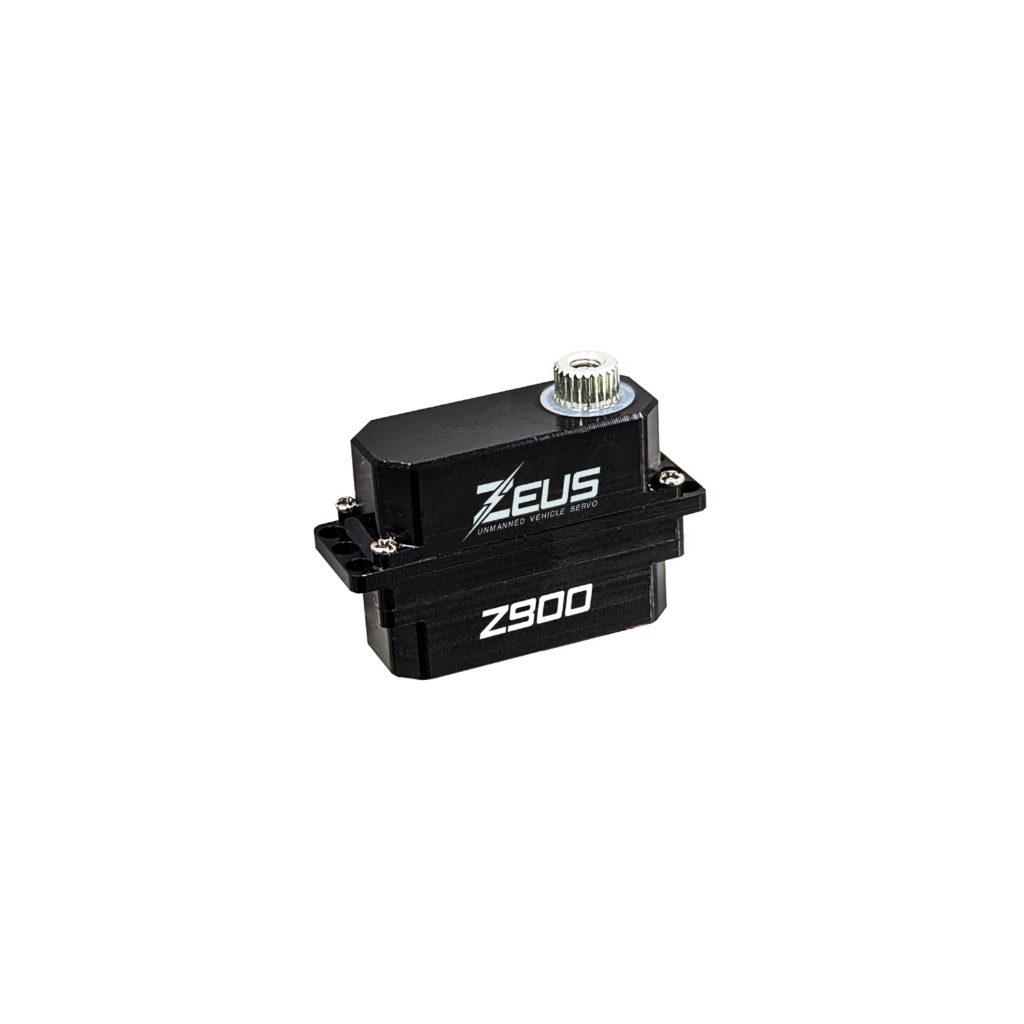

Z900 Series (9mm) Actuator
Weighing in at just 9 grams, the Z900 Series servos are ideal for ailerons and flight control surfaces of small UAVs, The compact and waterproof actuators are also highly suited to small unmanned and autonomous underwater vehicles.
Specifications:
| Case Dimensions | 23 x 9.5 x 17.9 mm |
| Weight | 8.46 g |
| Max Torque | 21.5 Ncm / 30.5 oz-in / 2.2 kg-cm |
| Continuous Torque | 6.8 Ncm / 9.7 oz-in / 0.7 kg-cm |
| Max Travel Angle (default) | 120 ± 0.5° |
| Input Voltage Range | 3.7 – 6 VDC |
