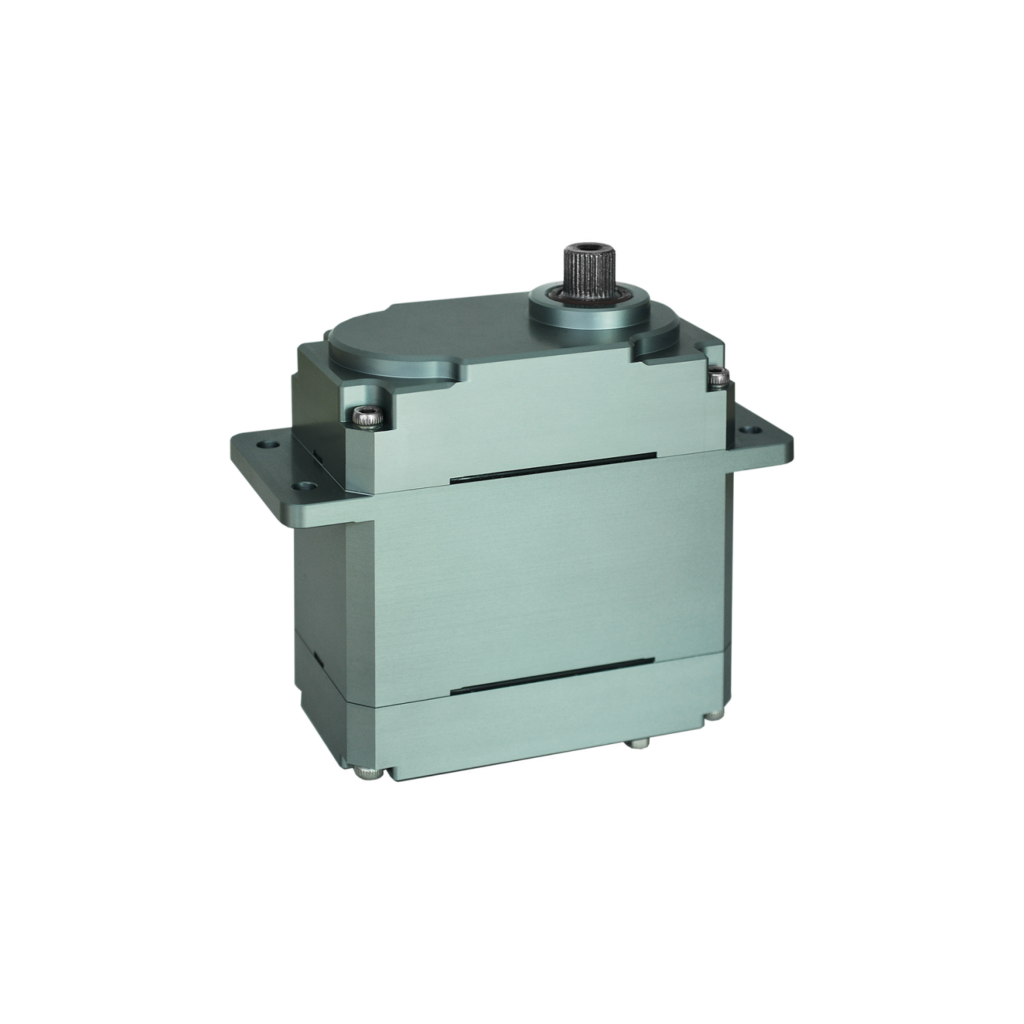

Z4200 Series (42mm) Actuator
The Z4200 Series provides high torque output in a robust impact-resistant housing. It is designed for low-speed yet high-power applications such as UAV landing gears and throttles.
Specifications:
| Case Dimensions | 76 x 42 x 79.5 mm |
| Weight | 588 g |
| Max Torque | 29.41.9 Ncm / 4166.2 oz-in / 300 kg-cm |
| Continuous Torque | 686.4 Ncm / 972.1 oz-in / 70 kg-cm |
| Max Travel Angle (default) | 90 ± 0.5° |
| Input Voltage Range | 16 – 30 VDC |
