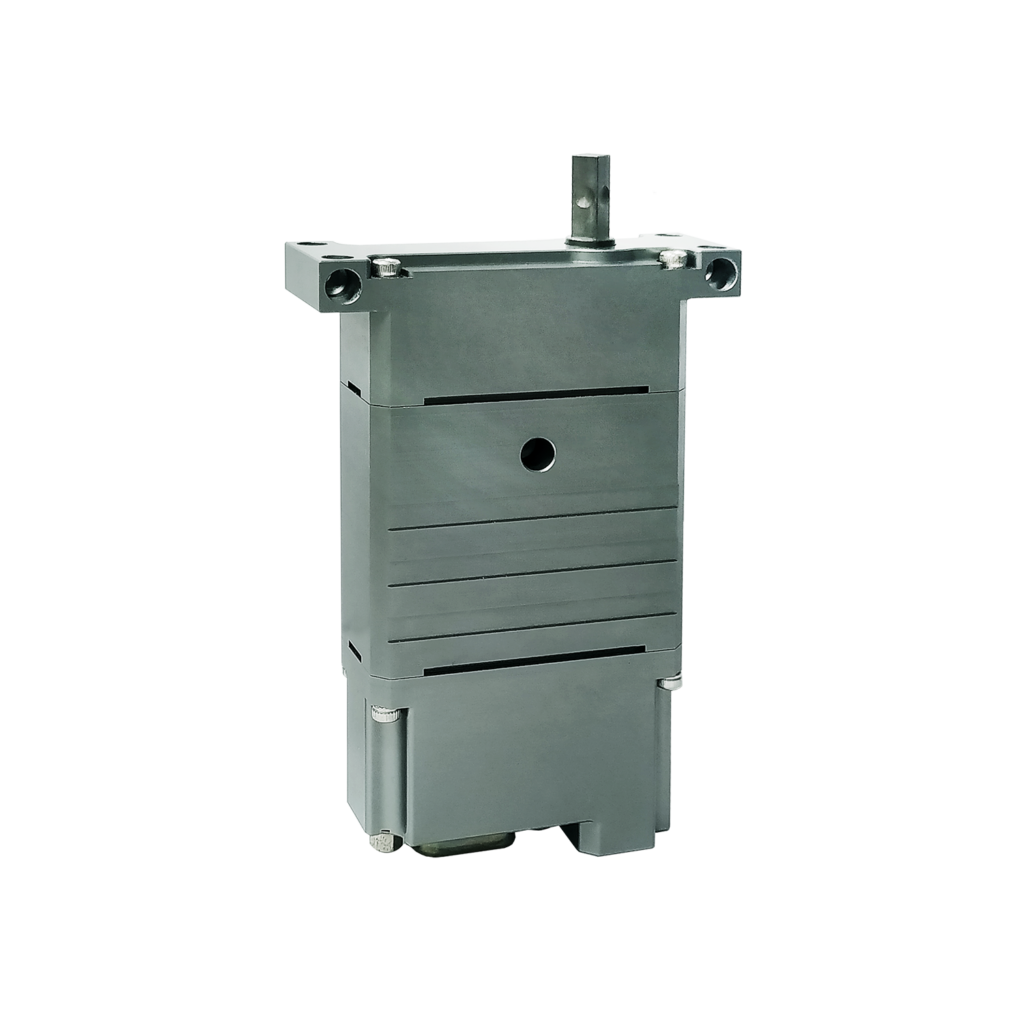

Z2300 Series (23mm) Actuator
The Z2300 Series features a rugged design with a hardened gearbox and high-performance multi-pole brushless motors. It is ideal for applications requiring load application over extended periods of time, such as in long-endurance fixed-wing drones.
Specifications:
| Case Dimensions | 52 x 23 x 103.4 mm |
| Weight | 280 g |
| Max Torque | 980 Ncm / 1388 oz-in / 100 kg-cm |
| Continuous Torque | 294 Ncm / 416.6 oz-in / 30 kg-cm |
| Max Travel Angle (default) | 90 ± 0.5° |
| Input Voltage Range | 16 – 30 VDC |
