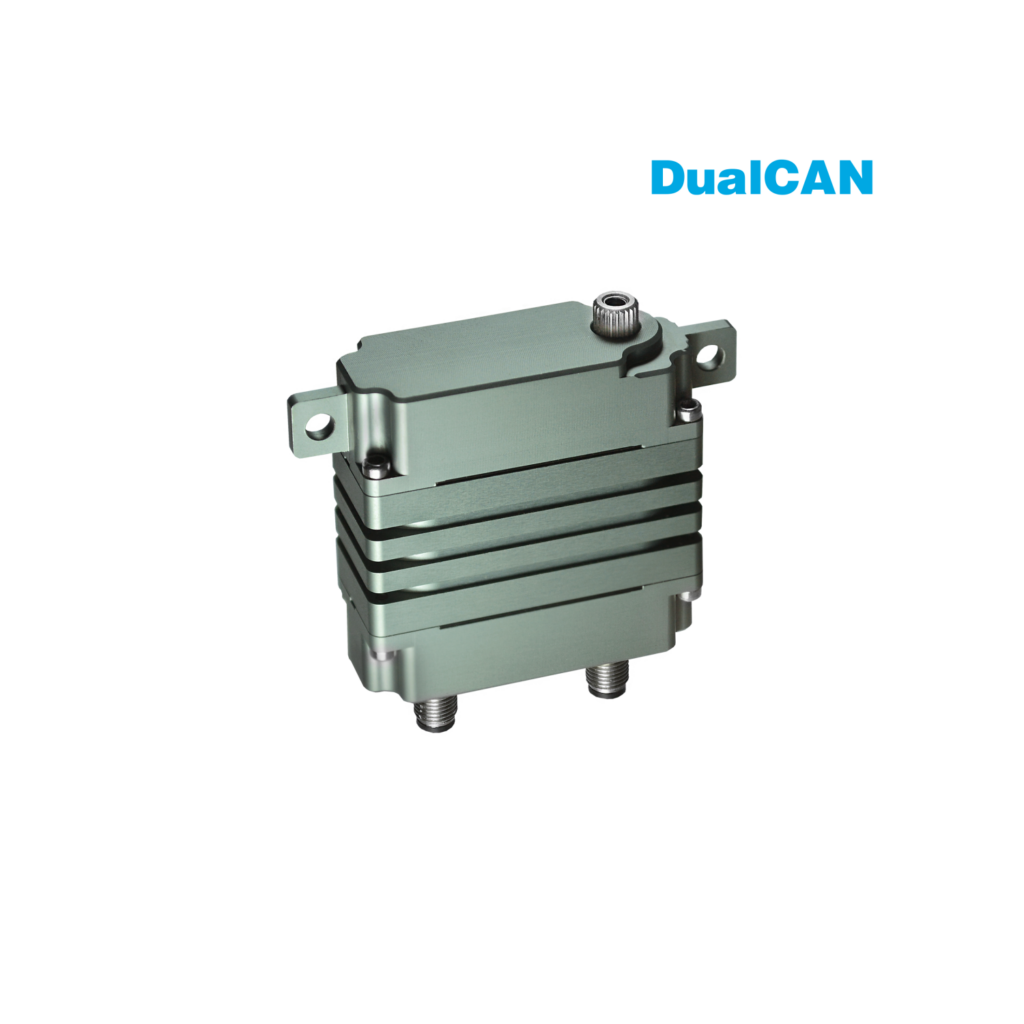

Z1538 Series (15mm) Actuator
The Z1538 Series is ideal for hard-wearing applications, tested for over 2000 hours with a load of 3kg-cm. The miniature servo actuator incorporates a dual CAN bus communications interface, enabling flexible switching of command and feedback channels.
Specifications:
| Case Dimensions | 38 x 15 x 43 mm |
| Weight | 46 g |
| Max Torque | 196.1 Ncm / 277.7 oz-in / 20.0 kg-cm |
| Continuous Torque | 58.8 Ncm / 83.3 oz-in / 6.0 kg-cm |
| Max Travel Angle (default) | 120 ± 0.5° |
| Input Voltage Range | 7 - 15 VDC |
