Brushless Servo Motor Actuator Systems for Uncrewed Aircraft/Drones & Marine Robotics
Z1500 Series (15mm) Actuator High-reliability servo actuator for industrial applications
Z1500 Series (15mm) Actuator

High-reliability servo actuator for industrial applications

Visit Website Contact
Saved
Save

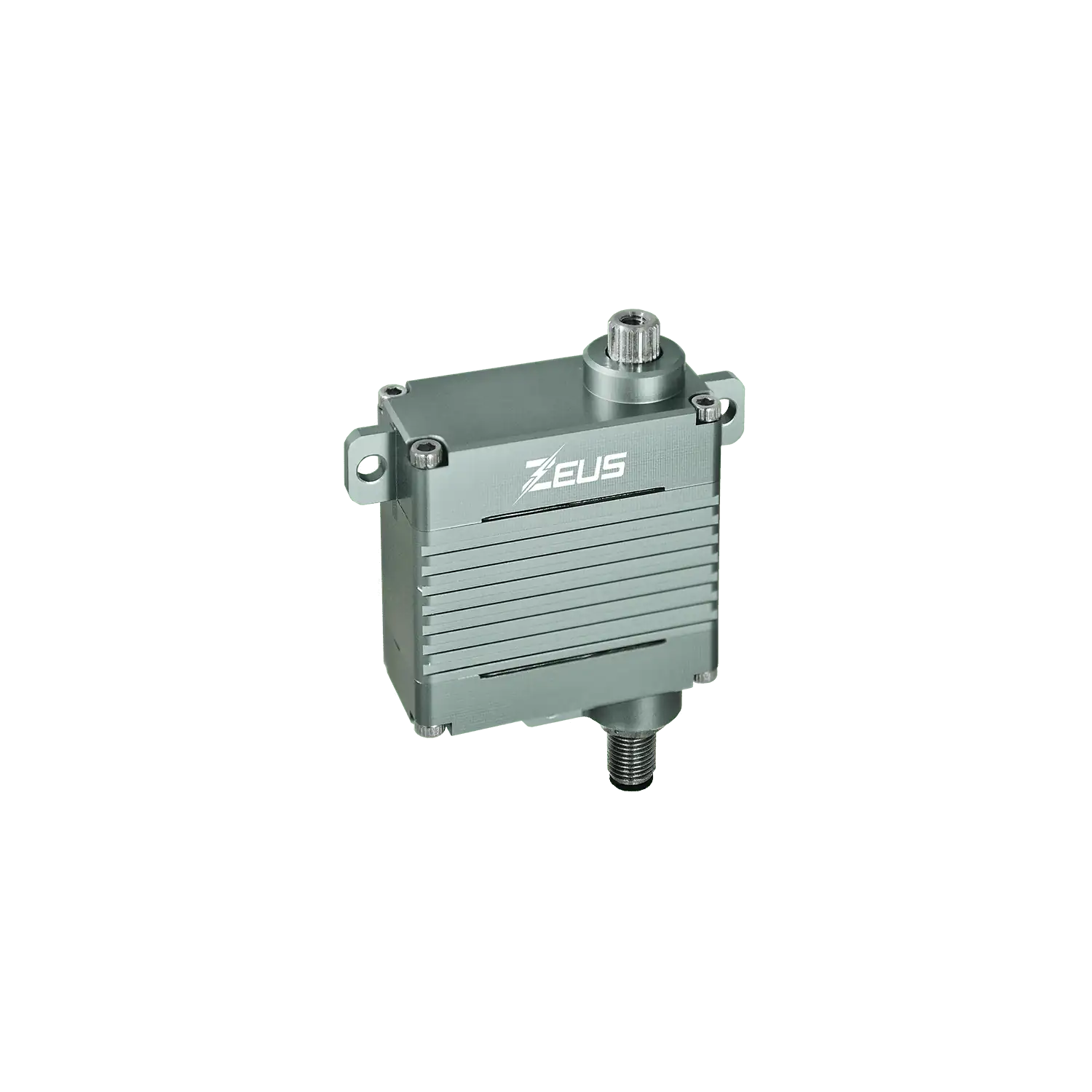

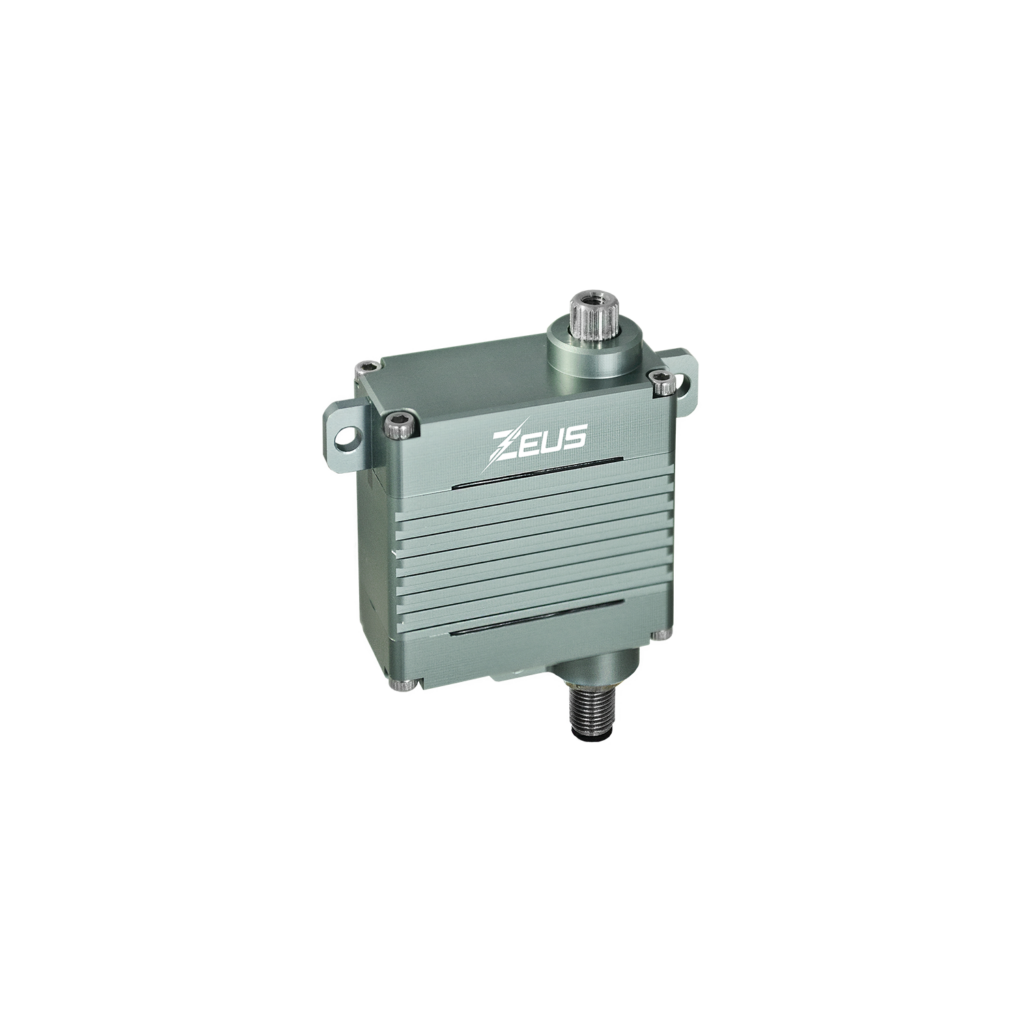

Z1500 Series (15mm) Actuator

The Z1500 Series has been designed for ultra-long lifespan applications, surviving operational tests of over 2000 hours with a rated load of 3kg-cm. It is ideal for heavy-duty industrial robotics and drone applications.

Specifications:

Case Dimensions 30.2 x 14.6 x 29.4 mm
Weight 36 g
Max Torque 196.1 Ncm / 277.7 oz-in / 20.0 kg-cm
Continuous Torque 58.8 Ncm / 83.3 oz-in / 6.0 kg-cm
Max Travel Angle (default) 90 ± 0.5°
Input Voltage Range 7 - 15 VDC
