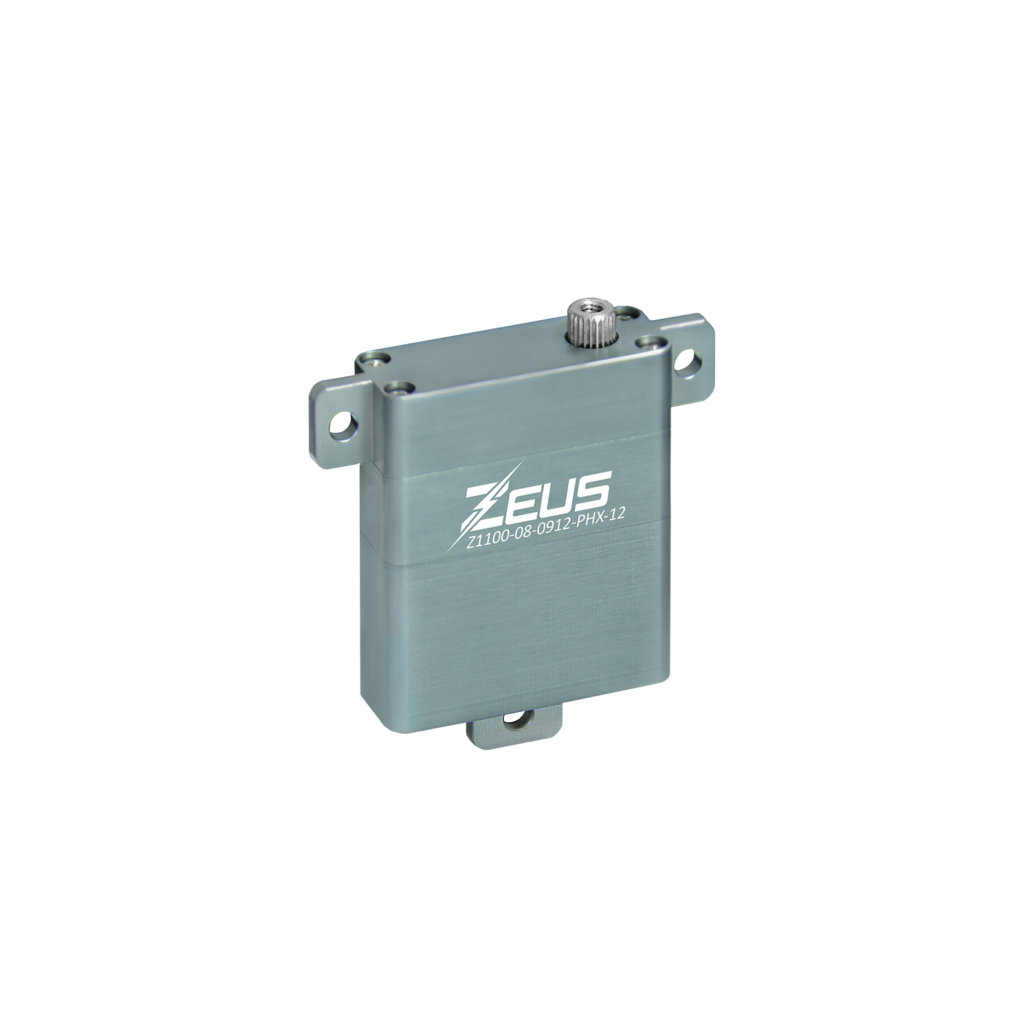

Z1100 Series (10mm) Actuator

The Z1100 Series features a lightweight and thin construction for space-constrained vehicles. With high torque of up to 10kg-cm, it is ideal for high-speed unmanned gliders. This servo was selected for a record-breaking remote-control aircraft that reached speeds of 870km/hr.

Specifications:

Case Dimensions 31 x 11 x 36.25 mm
Weight 34.31 g
Max Torque 92.1 Ncm / 130.5 oz-in / 9.4 kg-cm
Continuous Torque 14.7 Ncm / 20.8 oz-in / 1.5 kg-cm
Max Travel Angle (default) 120 ± 0.5°
Input Voltage Range 4.5 – 8.4 VDC
