High-Performance, Rugged GPS & GNSS Antenna Solutions for Drones & Autonomous Vehicles
Single-Band Helical GNSS Antennas Rugged Helicore GNSS antennas for GPS L1
Single-Band Helical GNSS Antennas

Rugged Helicore GNSS antennas for GPS L1

Visit Website Contact
Saved
Save
Single-Band Helical GNSS Antennas

Maxtena single-band GNSS antennas are designed for the GPS L1 band, and are ideal for high-performance positioning for drones, robotics and autonomous vehicles.

Designed using patented Helicore technology, the antennas optimize key characteristics such as pattern, polarization purity, and efficiency, featuring smaller and lighter footprints than traditional ceramic-based solutions.

The antennas feature rugged IP67-rated construction, with integrated active circuitry and filtering.

Weight Frequency Gain Mounting

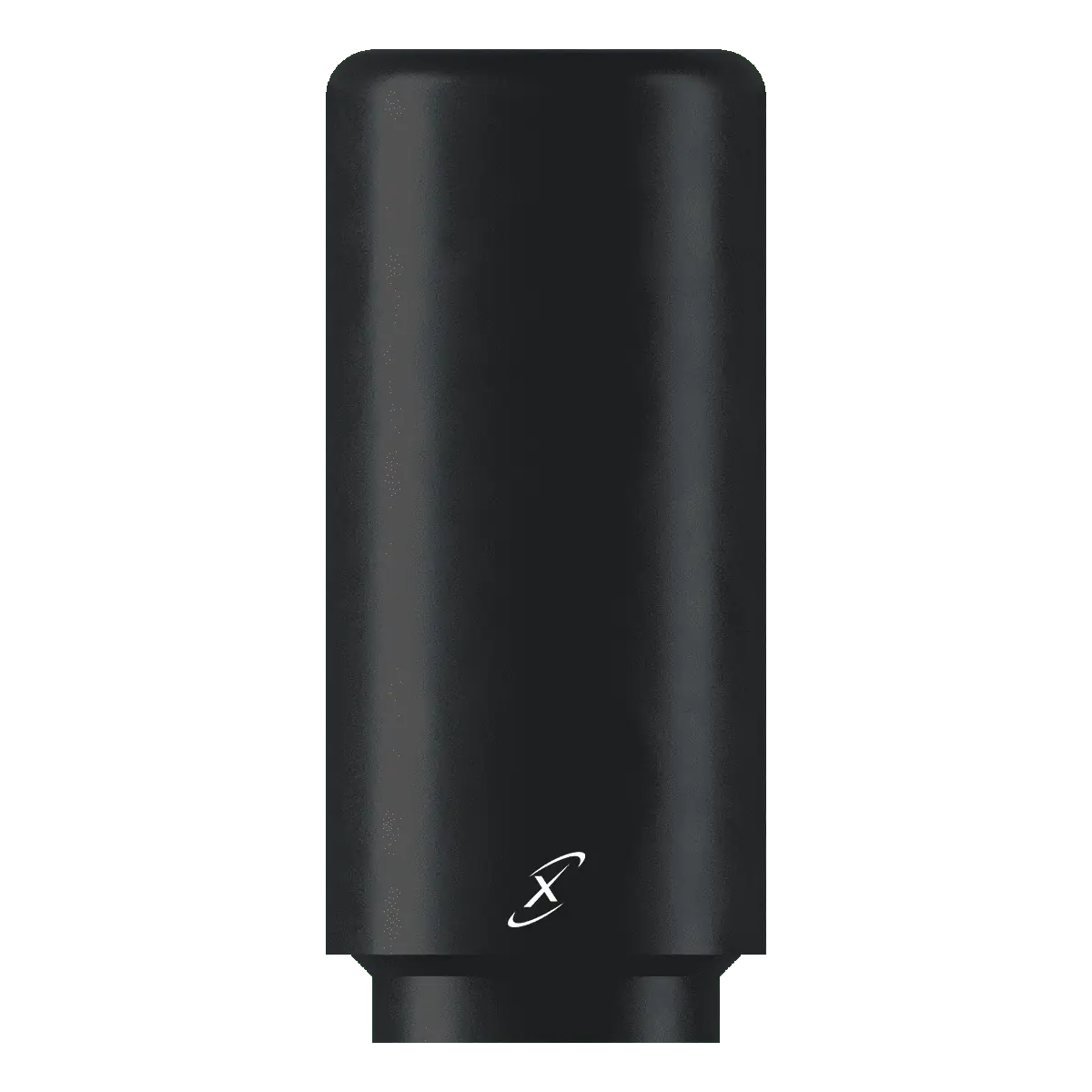

M1575HCT-15A-SMA 10.6 g 1575 MHz Active: 28 dBic typical
Passive: -2.5 dBic typical
Screw mount SMA

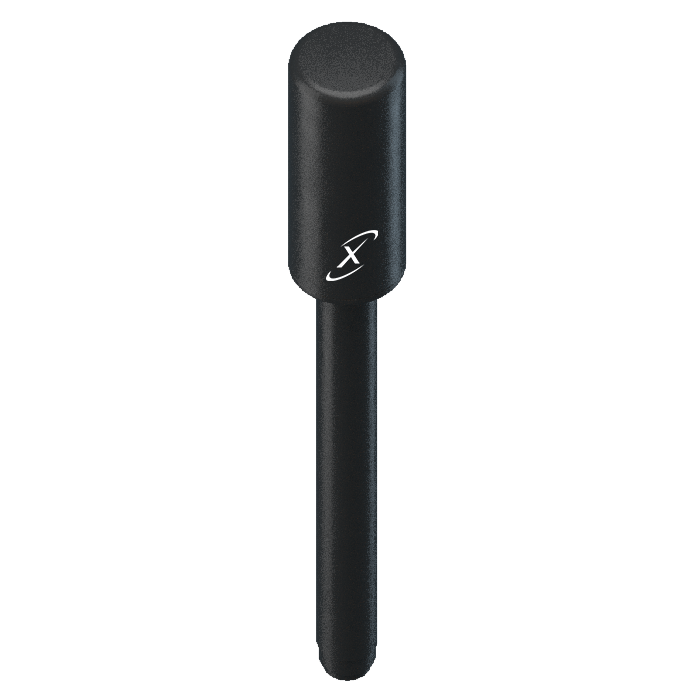

M1575HCT-GN 45 g 1575 MHz 1.8 dBic Screw mount SMA

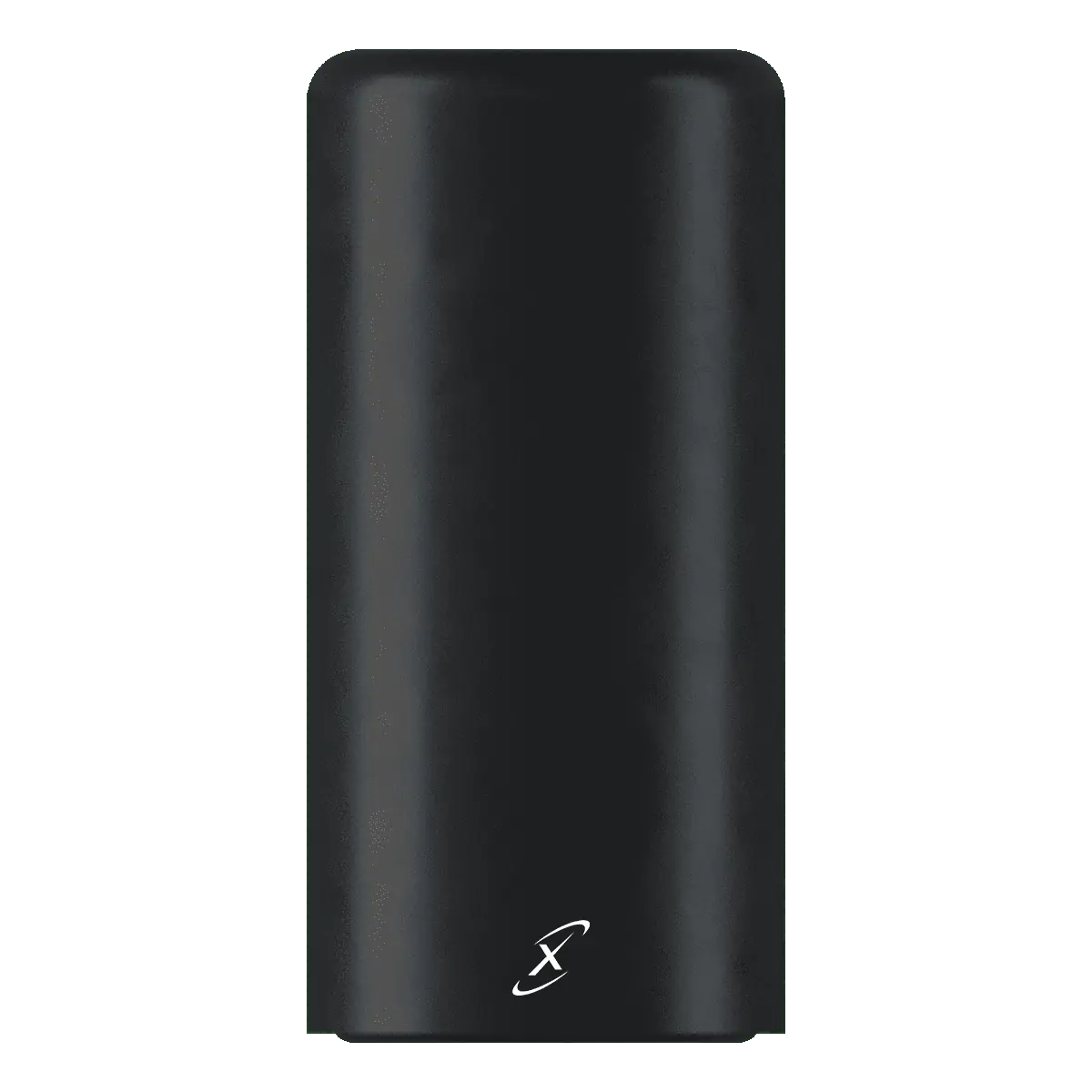

M1575HCT-22P-SMA 10 g 1575 MHz -0.5 dBic typical Screw mount SMA
