Single-Band Conformal Wave Antennas
Maxtena's single-band conformal wave antennas provide L1 frequency coverage for GPS and GLONASS as well as QZSS, featuring IP6X-rated ingress protection and an ultra-low-profile design.
Featuring excellent radiation pattern, exceptional out-of-band rejection, and low noise, these antennas are ideal for providing high-performance GNSS positioning for drones, robotics and autonomous vehicles.
Specifications:

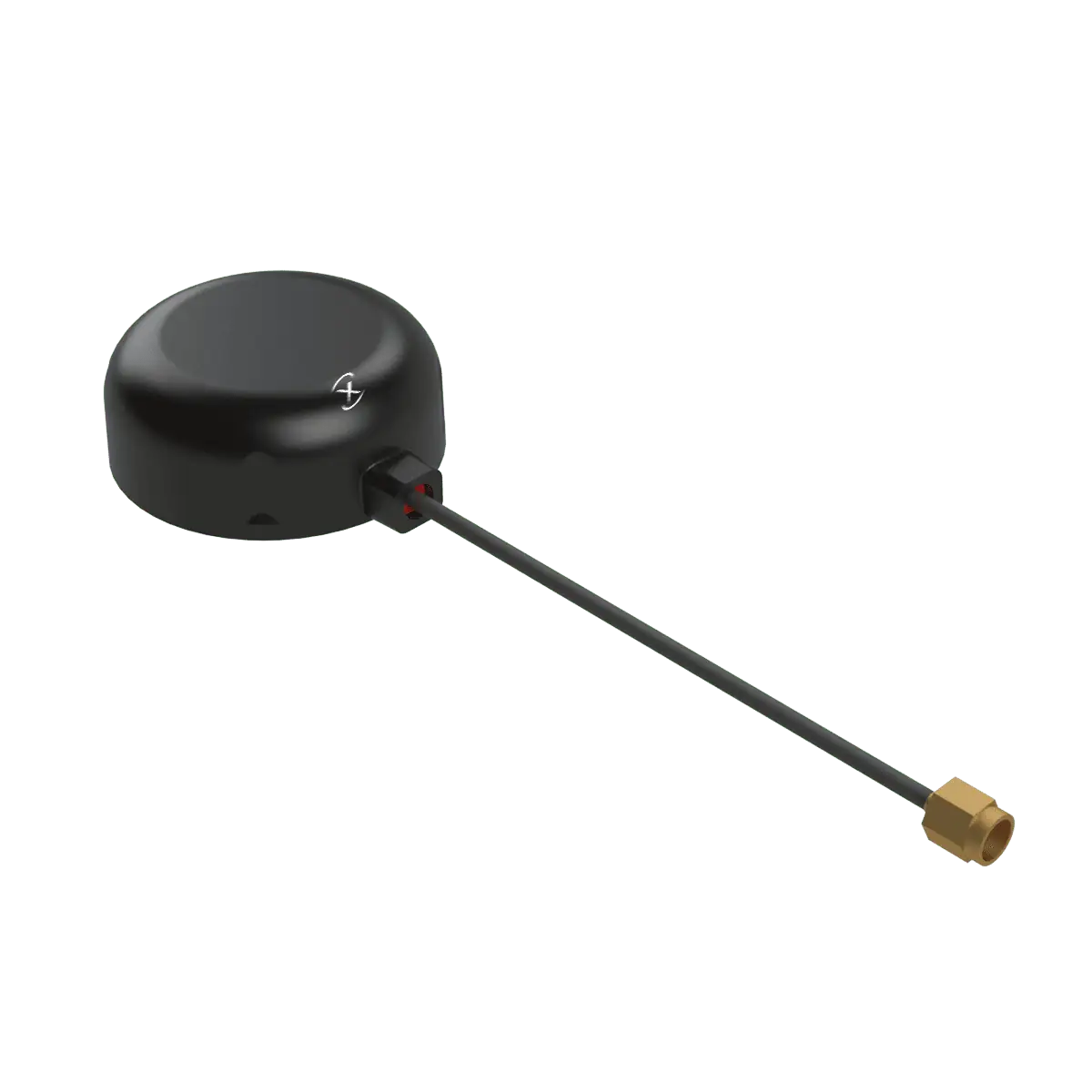

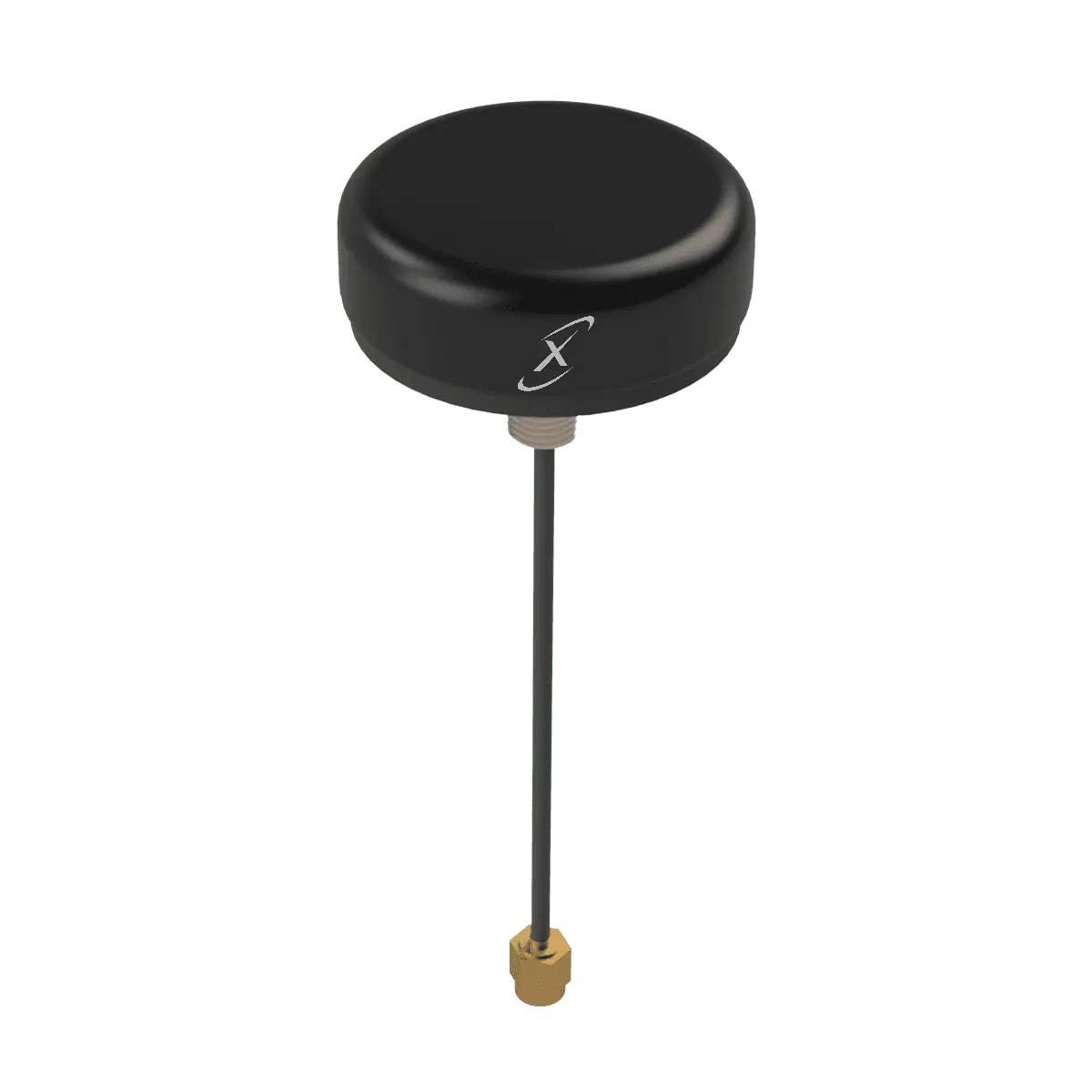

| MEA-GG-MM | MEA-GGG-SM | |
| Dimensions | 54 x 14.7 mm | 52 x 17.5 mm |
| Frequency Ranges |
1575.42 MHz 1598-1606 MHz |
1575.42 MHz 1598-1606 MHz |
| Impedance | 50 ohms | 50 ohms |
| Active Gain |
26 dB @ 3V 28 dB @ 5V |
28 dB @ 2.7V |
| Passive Gain |
~2.0 dBi (GPS/QZSS) ~2.9 dBi (GLONASS) |
~2.0 dBi (GPS/QZSS) ~2.9 dBi (GLONASS) |
| Mounting Type | Magnetic | Screw |
| IP Rating | IP67, IP69K | IP69K |
