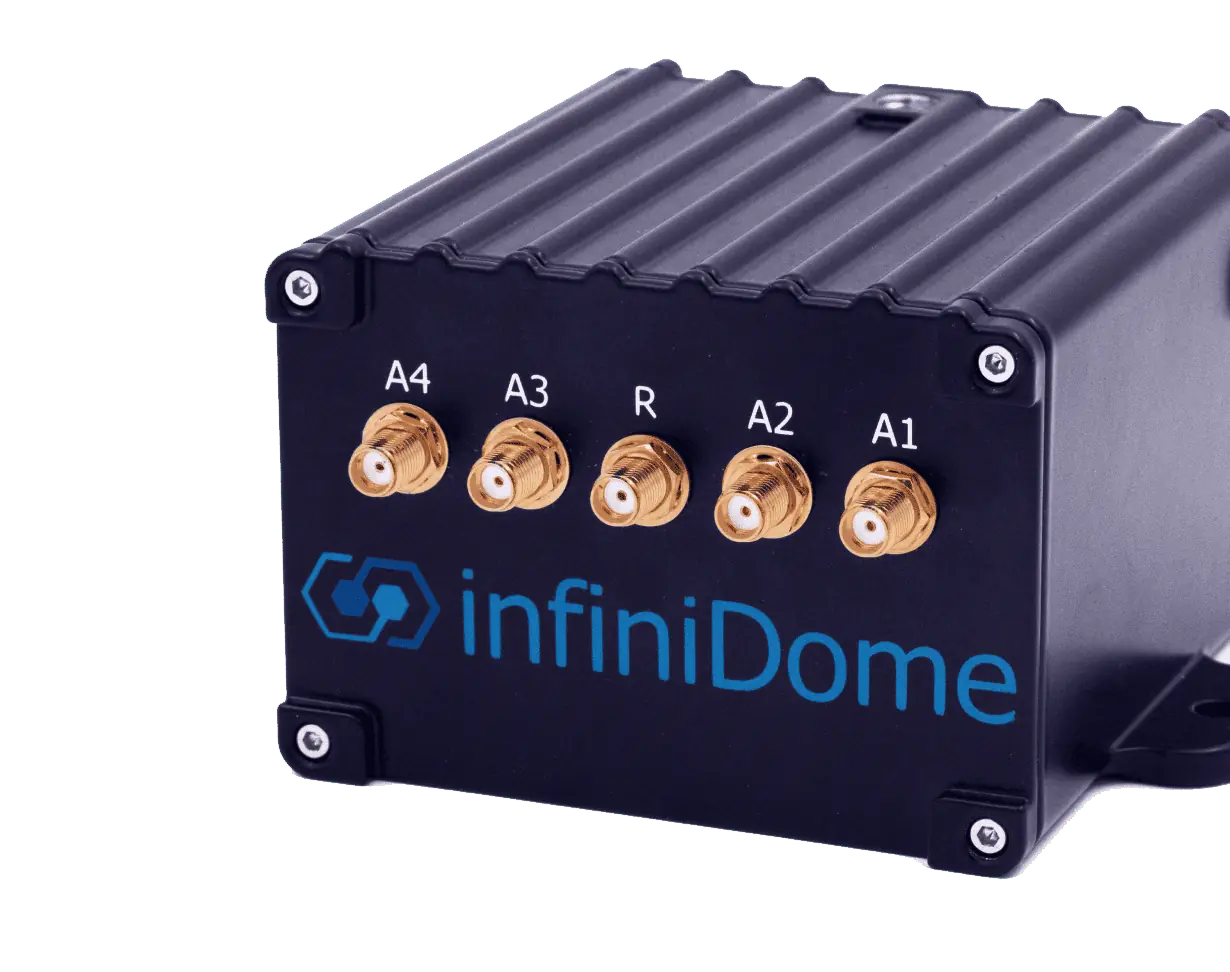

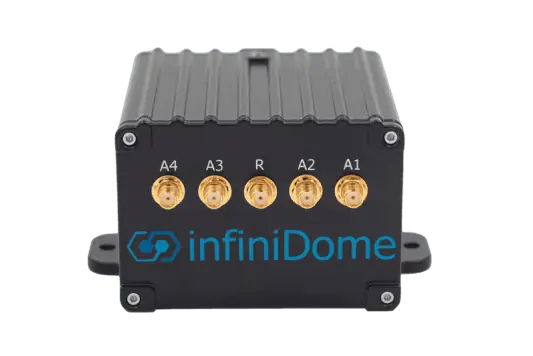

GPSdome 2 – Anti-Jamming Device
GPSdome 2 is a high-performance GNSS anti-jamming solution that utilizes up to four off-the-shelf active antennas placed anywhere on the platform to provide robust protection. It is ideal for SWaP-limited UAVs and drones, as well as UGVs.
Featuring dual-band protection (GPS L1+L2 or GPS L1+Glonass G1), GPSdome 2 protects from up to three jamming directions simultaneously in each band. The IP65-rated unit can be provided with optional military-grade hardening and is compatible with almost any COTS GNSS receiver.
Specifications:
| Dimensions | 87 x 91 x 61.5 mm (excluding mounting lugs) |
| Weight | 500 g |
| Power Consumption | Average < 5W, peak <18W |
| Compression Point | P1dB -25dBm |
| Insertion Loss | 6dB |
| Antenna Connector | 50Ω SMA 2.5-12VDC (customer definable) Active antenna, up to 50dB antenna gain (customer definable) |
| Receiver Connector | 50Ω SMA |
