WS-E, PD & PDS Wave Sensors

Inertial Labs' Wave Sensors utilize three-axis precision accelerometers, magnetometers, gyroscopes and barometric sensors to provide high-accuracy wave characteristics such as height, period, direction and energy, as well as heave, sway, surge, pitch and roll of the device under measure. Spectral data can be output as a complete set of Fourier coefficients and energies.

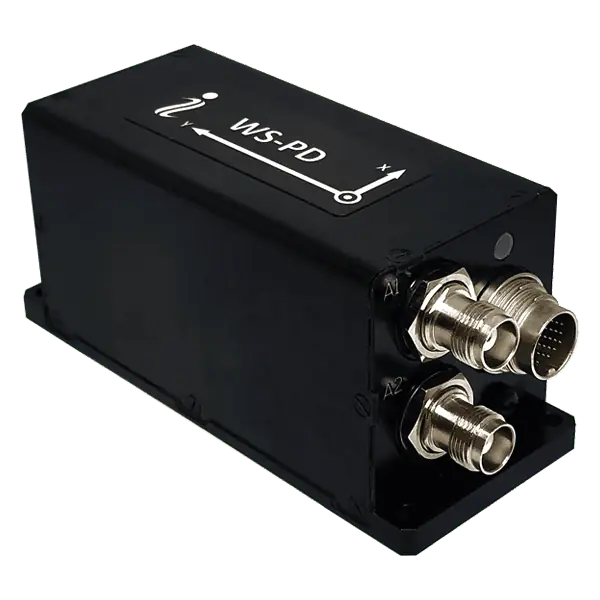

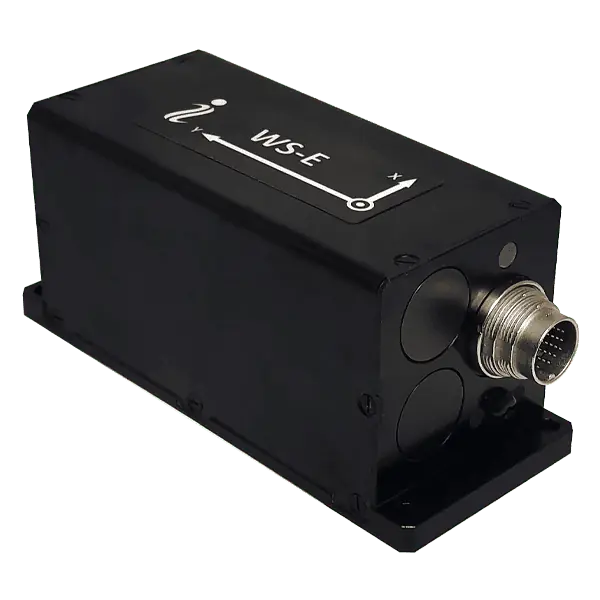

The sensors can be easily integrated with marine and maritime systems such as buoys or unmanned floating platforms to provide real-time data transmission. Two models are available - an Enhanced version, and a Professional Dual version that includes GNSS heading output and DGPS/RTK capabilities.

Wave Sensors are IP67-rated, and the WS-PD is also available in a ruggedized marine-hardened enclosure for subsea applications.

Specifications:

WS-E WS-PD WS-PDS

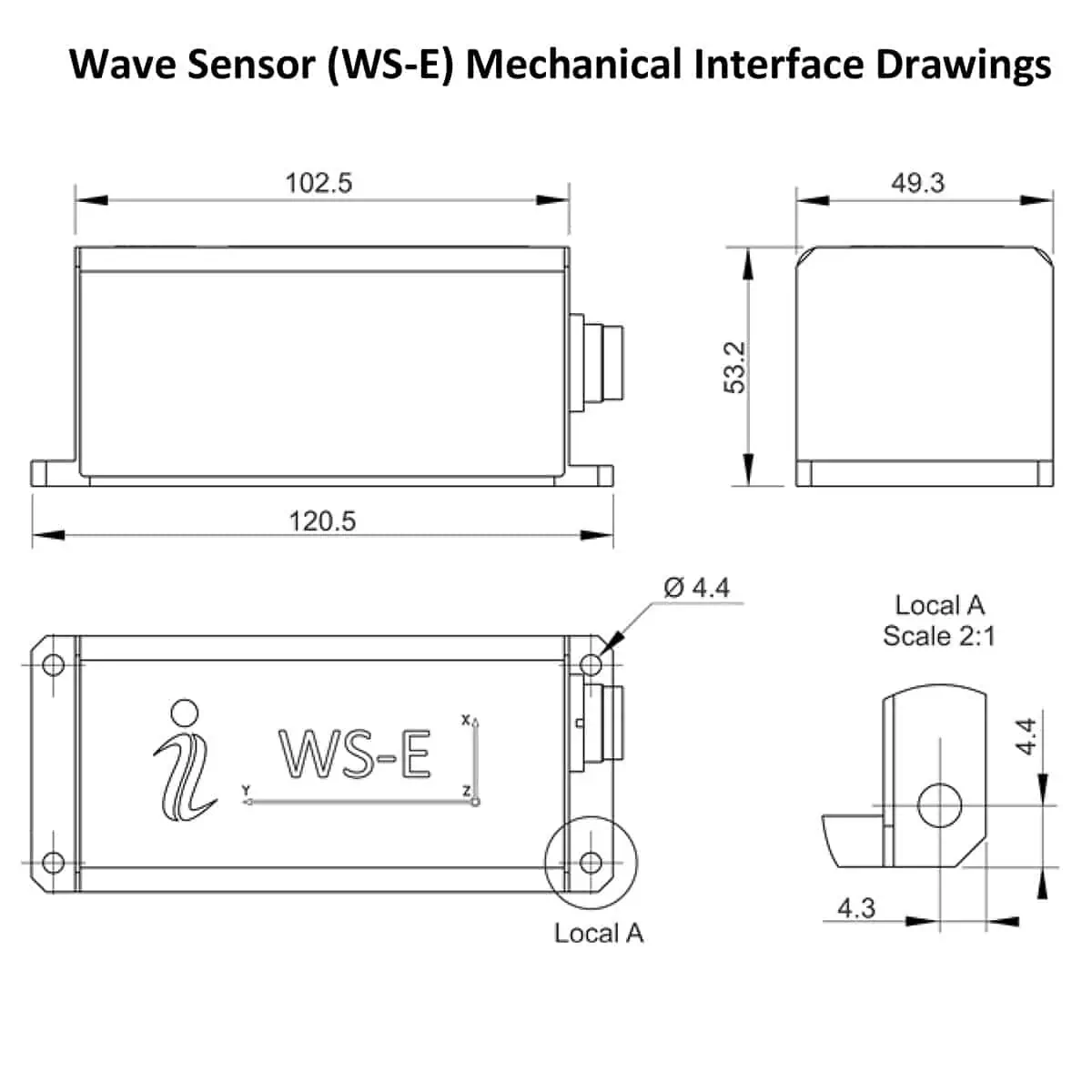

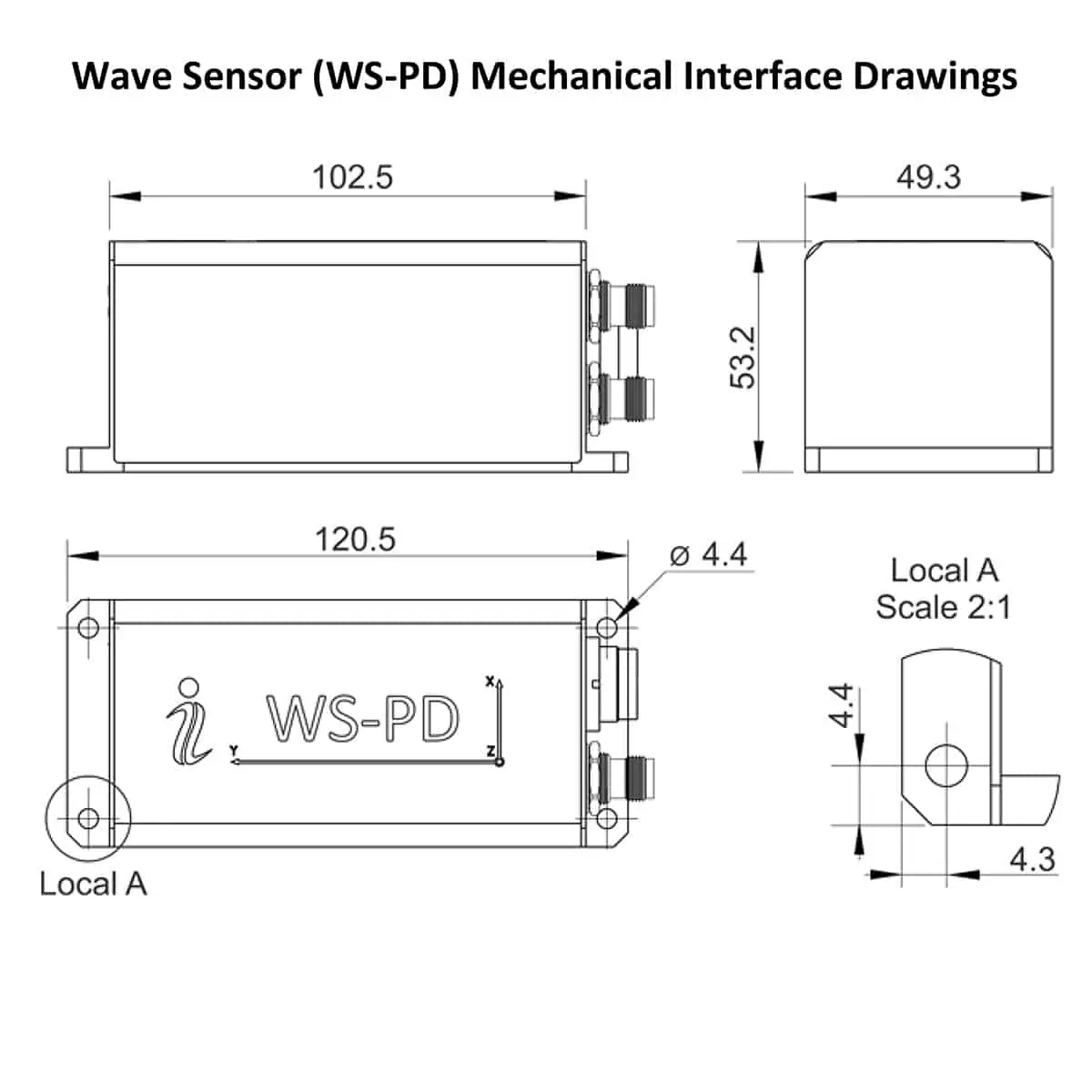

Size 120 x 50 x 53 mm 120 x 50 x 53 mm 245 x 140 x 115 mm
Weight 320 g 320 g 6500 g
Wave Direction Accuracy 1 deg RMS 0.5 deg RMS 0.5 deg RMS
Pitch & Roll Accuracy 0.02 deg RMS 0.02 deg RMS 0.02 deg RMS
Heading Accuracy 0.6 deg RMS 0.05 deg RMS 0.05 deg RMS
Position Accuracy N/A 40 cm (DGPS)
1 cm (RTK)
40 cm (DGPS)
1 cm (RTK)
