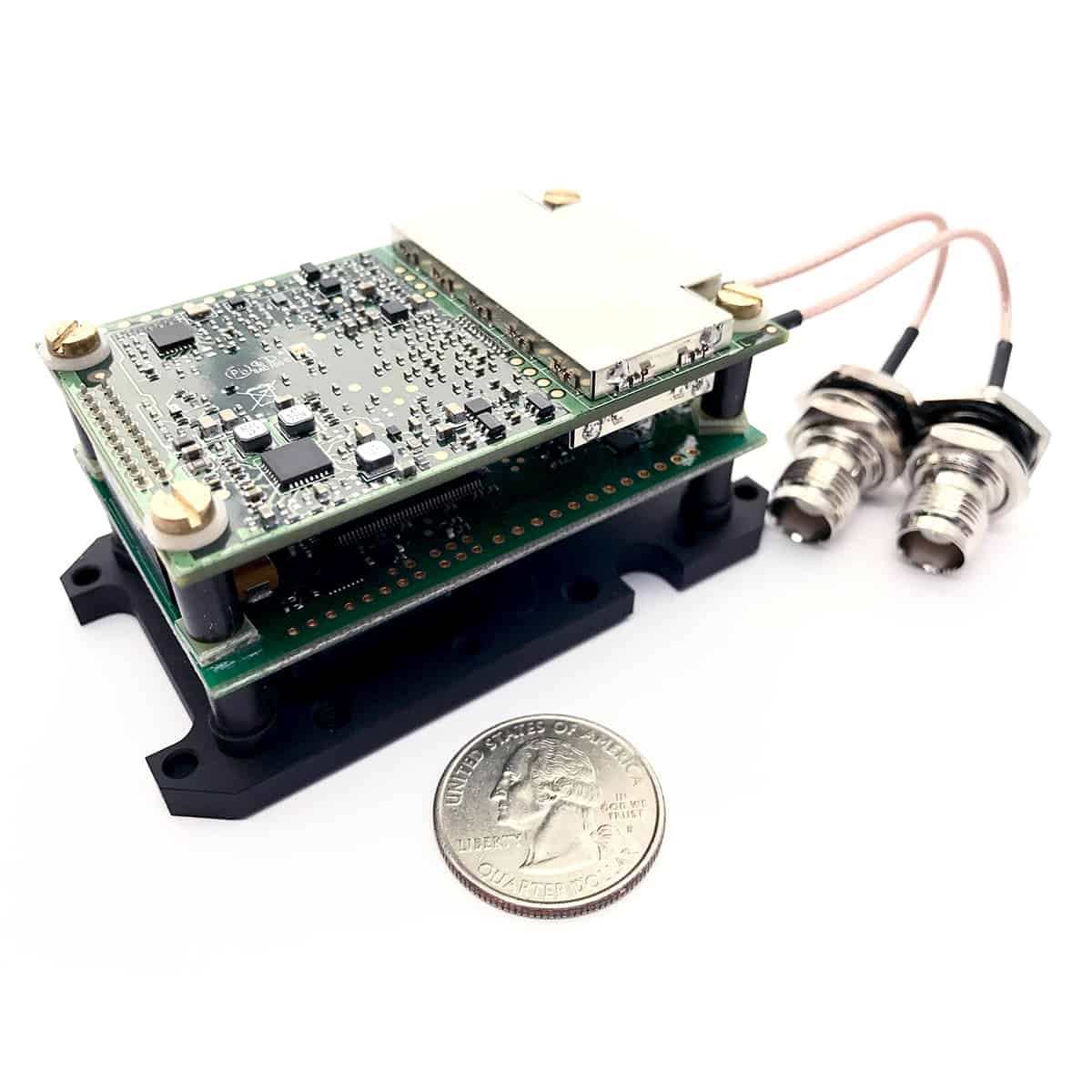

INS-DL-OEM GNSS-aided Inertial Navigation System
The INS-DL-OEM is a low-cost dual-antenna industrial-grade GNSS-INS featuring multi-constellation tracking and advanced 3-axis MEMS sensors with extremely precise heading.
The sensor features full temperature calibration and embedded sensor fusion algorithms for the different dynamic motions of UAVs, UGVs, USVs and other unmanned vehicles, and can be fitted with an external magnetic compass.

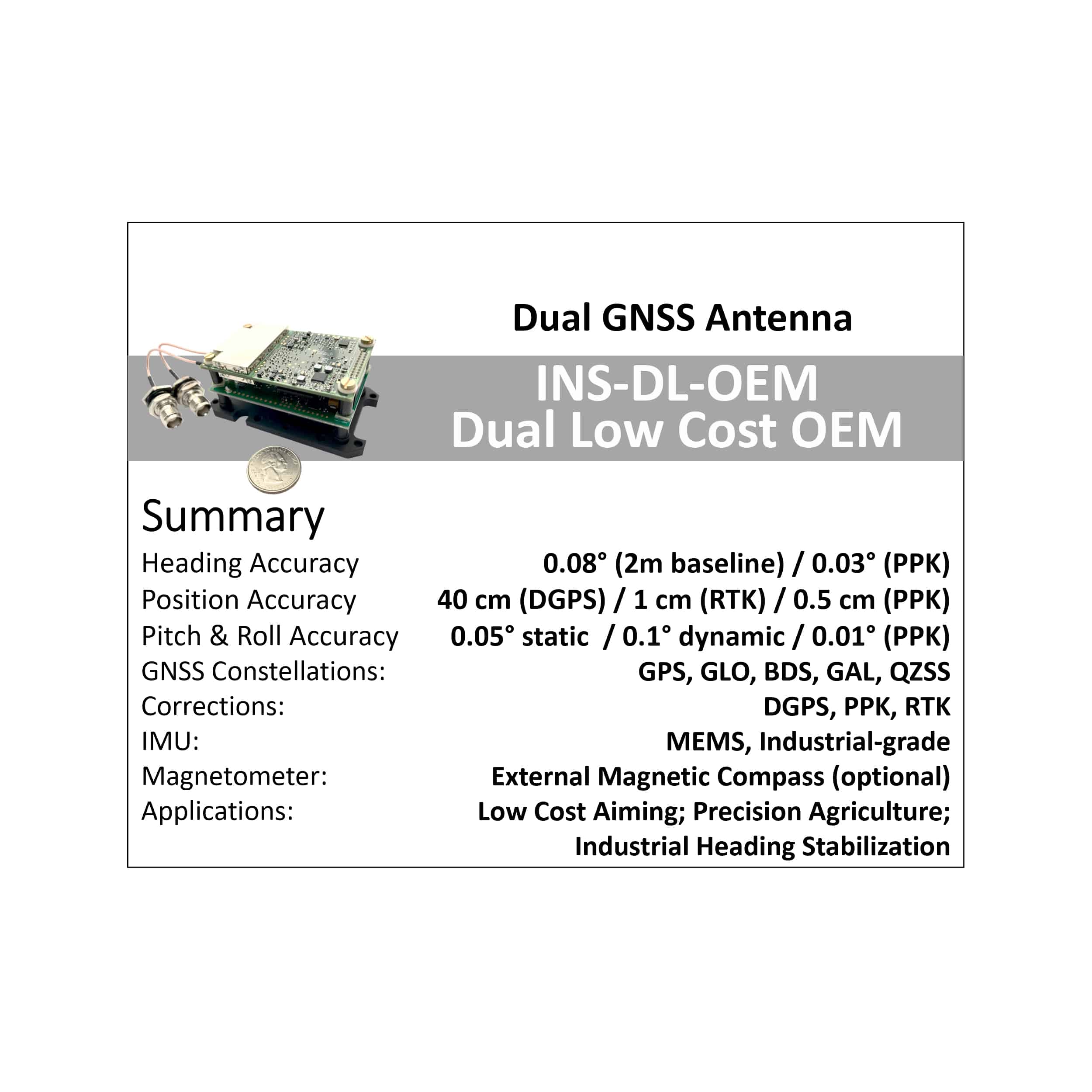

The INS-DL-OEM provides heading accuracy of 0.08°, RTK position accuracy of 1cm and static/dynamic pitch & roll accuracy of 0.05°/0.1°.
