Hydronalix is a leading developer of advanced unmanned surface vessels (USVs), small USV and Safety, Security & Rescue Robotics (SSRR).

Hydronalix Unmanned Surface Vehicles

Our water rescue robots and marine robotics platforms are ideal for a wide range of applications, including defense, law enforcement and first responders, scientific research, and commercial and industrial.

Our small USVs are developed in-house to maintain superior quality control, and our capabilities include naval architecture and hydrodynamic design, electronic circuit design and fabrication, sensor and payload integration, and composite hull tooling and fabrication.

We have undertaken advanced research and development programs for many leading organizations and government agencies, including the Office of Naval Research (ONR), Defense Advanced Research Projects Agency (DARPA), Department of Homeland Security (DHS), National Oceanic Atmospheric Administration (NOAA), and the National Science Foundation (NSF).

AMY

General-purpose small USV with flexible payloads

AMY General-purpose small unmanned surface vessel

AMY is a general-purpose USV constructed with a high-strength, low-weight carbon fiber hull and high-efficiency planing design. Powered by twin hybrid fuel-injected 4 kW electric jet drives, it can reach a top speed of 16 knots.

Hydronalix AMY USVThe versatile small unmanned surface vessel can be equipped with a wide range of optional payloads, including X-band radars, side scan sonars and downward imaging sonars. High-bandwidth Inmarsat SATCOM provides long-range, reliable communications and control. The  low-dielectric structure allows for the mounting of internal antennas.

Specification
Size: 11 cubic feet
Weight: 145 lbs
Top Speed: Single-axis:16 knots
Propulsion: Twin 4 kW hybrid fuel-injected electric drives

NIX – Unmanned Sea Vehicle

Long-endurance, high-stability unmanned sea vehicle

NIX Long-endurance high-stability USV

NIX is a high-speed long-endurance unmanned sea vehicle with a rugged low-weight M-shaped carbon fiber hull, providing stability even at high speeds and leaving almost no wake. The dual hybrid fuel-injected electric engine delivers 3kW of power and a top speed of 20 knots, and provides 24 hours of mission endurance with a 40 kg payload.

Hydronalix NIX USV

The NIX can be equipped with an optional EO/IR stabilized camera gimbal, side-scan and downward imaging sonars, and NOAA-certified weather sensor. The unmanned sea vehicle’s low-dielectric structure allows for the mounting of internal antennas.

Specification
Size: 80 x 40 x 23 in
Weight: 144 lbs
Top Speed: 20+ knots
Propulsion: Twin 3 kW hybrid fuel-injected electric drives

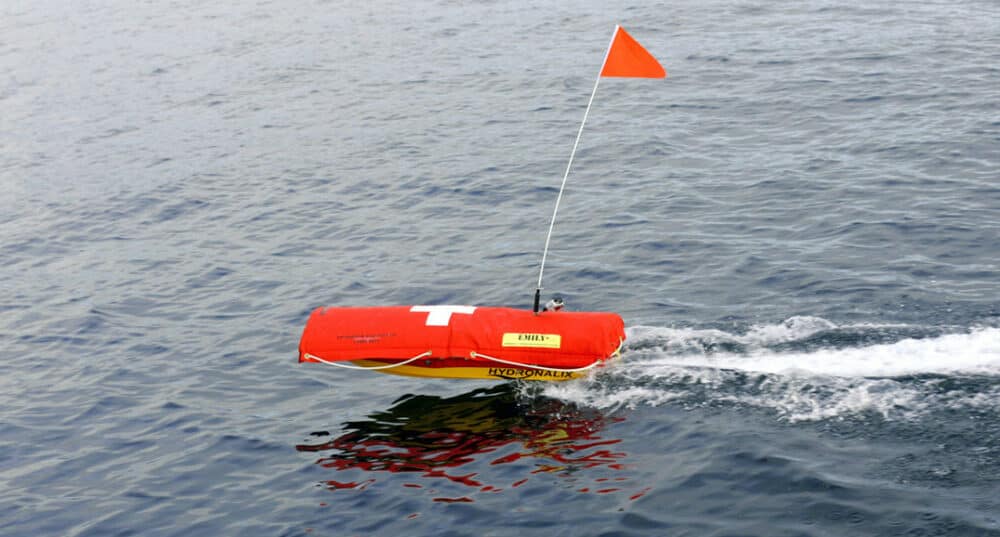

EMILY

(Emergency Integrated Lifesaving Lanyard) – Portable electric USV robot

EMILY water rescue robot

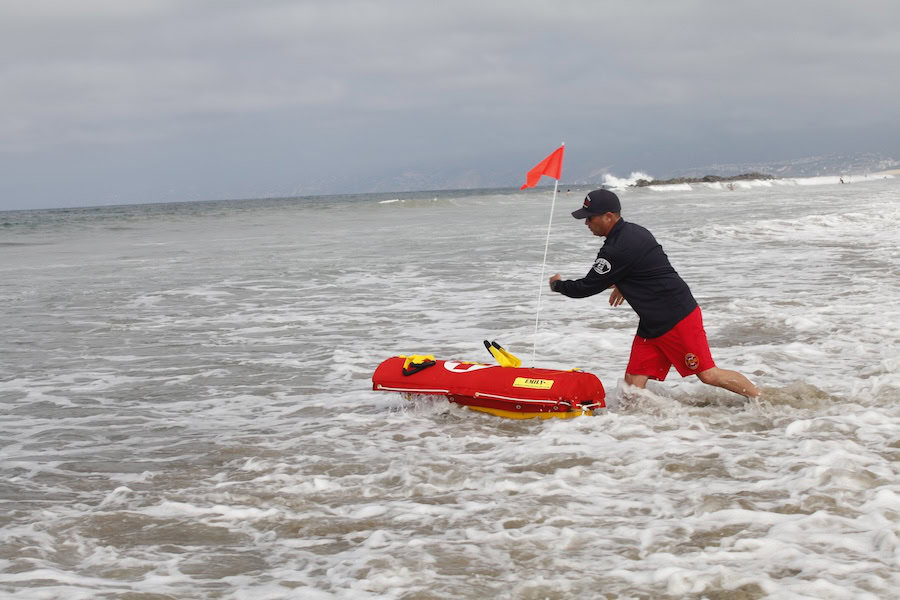

EMILY (Emergency Integrated Lifesaving Lanyard) is a portable water rescue robot with a Kevlar-reinforced composite hull designed for beach and ocean operations. Weighing just 26 lbs, the battery-powered small USV features a full-power run time of 14 minutes with a top speed of 23 mph.

Hydronalix EMILY rescue robot

EMILY has been designed with a variety of crucial features for lifesaving operations, such as easy grip handles, an eight-foot perimeter grab rope, and a long flag for maximum visibility.

The small USV can be operated at ranges of up to 5 miles at full speed or 6 miles at slower speeds. It comes with a 2.4 GHz frequency-hopping transmitter controller for easy and intuitive operation.

Specification
Size: 14 x 14 x 50 in
Weight: 26 lbs
Top Speed: 23 mph
Propulsion: 1.2 kW electric motor

MOBE Robot – Man Overboard EMILY USV

Water rescue robot for ship-borne operations

Hydronalix MOBE Rescue USV

MOBE (Man Overboard EMILY) is a variant of the EMILY USV robot that is designed to be launched from vessels. With a top speed of 18 mph, it can run at full power for up to 18 minutes. The included 2000-foot rescue reel allows easy retrieval of the USV.

Water Rescue Robot USVMOBE has been designed for operation in nautical environments, and features LED port and starboard navigation lights and a powerful LED headlight for clear visibility at night.

Vital features for lifesaving missions include as easy grip handles, an eight-foot perimeter grab rope, and a long flag for maximum visibility.

Specification
Size: 14 x 14 x 50 in
Weight: 38 lbs
Top Speed: 18 mph
Propulsion: 2.4 kW electric motor

SWRE (Swift Water EMILY) Rescue Robot

Unmanned rescue robot for floods and rivers

SWRE Unmanned rescue vessel

SWRE (Swift Water EMILY) is a variant of the EMILY that has been optimized for rescue operations in flood, river and fast-flowing environments. With a top speed of 25 mph, it can run at full power for up to 6 minutes. Optional 800 or 2000-foot rescue reels allow for secure retrieval.

Hydronalix SWRE Unmanned rescue vessel

The rescue USV robot includes waterproof two-way VHF marine radios with remote microphones, as well as a helmet and lifejacket that can be securely delivered for use by rescuees. Bright starboard and port LED navigation lights allow the SWRE to be easily seen by observers and other vessels.

Specification
Size: 14 x 14 x 50 in
Weight: 31 lbs
Top Speed: 25 mph
Propulsion: 2.4 kW electric motor

Sonar EMILY

Versatile sonar imaging USV with long endurance

Sonar imaging unmanned surface vessel
Sonar imaging USV

The Sonar EMILY small unmanned surface vessel utilizes both side scan and downward-facing sonar to gather high-resolution imagery for the location of drowning victims, submerged vehicles and sunken boats. Both imaging transducers are mounted above the keel, allowing it pass directly over obstacles without risk of damage.

Hydronalix Sonar EMILY Versatile sonar imaging USV

The electrically-powered unmanned surface vehicle can reach a top speed of 18mph, and can be equipped with either a single or dual battery pack to provide mission endurances of 1.5 to 3 hours or 3 to 6 hours (at average speed of 2 mph) respectively.

Specification
Size: 14 x 14 x 50 in
Weight: 37 lbs
Top Speed: 18 mph
Propulsion: 2.4 kW electric motor

Waterproof rugged caseSonar EMILY comes with a payload station in a waterproof rugged case, equipped with SAR Hawk software for mission planning and control and data post-processing. Mapping and imaging data are displayed in real time on a 12-inch 1280×800 display for easy visibility.
