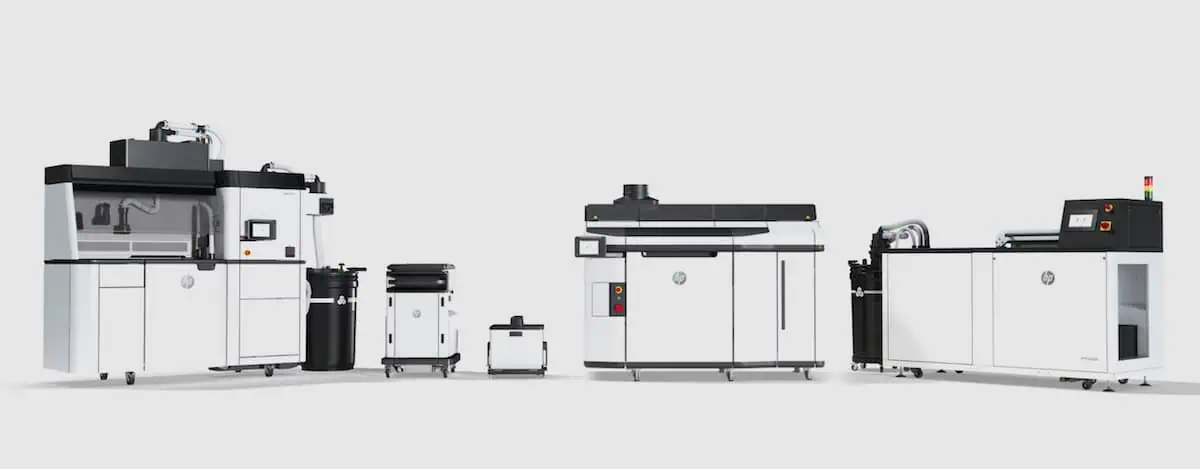

The HP Jet Fusion 5400 Series is optimized for the production of manufacturing-ready and engineering-grade white parts, delivering excellent consistency and repeatability with low running costs.
The advanced printer is based around HP Multi Jet Fusion (MJF) technology, which utilizes a unique multi-agent and multi-pass process and controls the properties of each individual voxel in every print. This results in the ability to combine fine detail with optimal mechanical properties, creating complex geometries that are impossible to produce with CNC machining.
The HP Jet Fusion 5400 Series provides an effective build volume of 380 x 284 x 380 mm and a building speed of up to 3380 cm3 per hour, and is ideal for high-volume production.
Specifications:
| Printer Dimensions: |
2,210 x 1,268 x 1,804 mm (87 x 50 x 71 in) |
| Operating Area: | 4100 x 3700 x 2500 mm |
| Weight: |
Printer 880kg (1,940lb) Build unit 140.5kg (309.7lb) |
| Power Consumption: | 12 kW |
| Effective Build Volume: |
380 x 284 x 380 mm (15 x 11.2 x 15 in) |
| Building Speed: |
Up to 3380.84 cm3/hr (206.31 in3/hr) |
| Layer Thickness: | 0.09 mm (0.0035 in) |
| Job Processing Resolution: | 1200 dpi |
| Print Resolution: | 1200 dpi |
