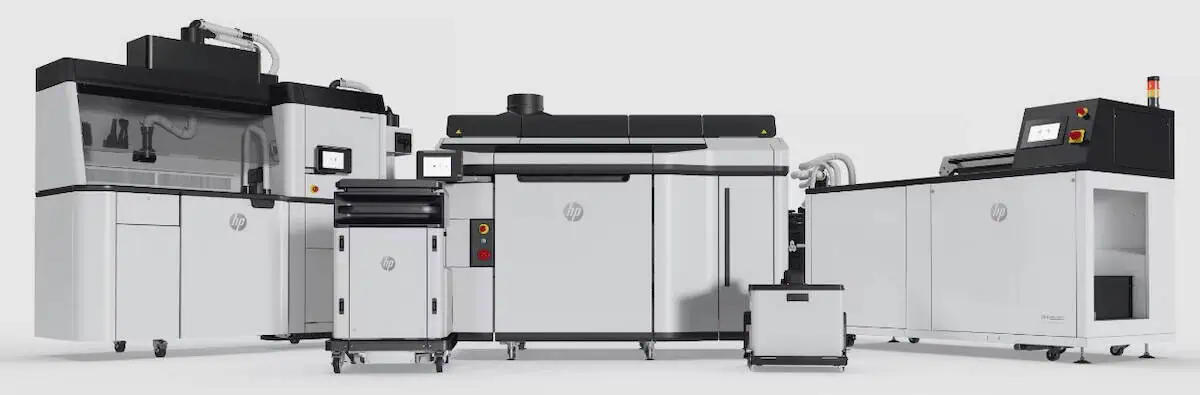

The HP Jet Fusion 5200 Series 3D printer allows drone OEMs to support the growth of their business and expand into new markets, and is ideal for mid-volume production levels. Offering excellent levels of repeatability and accuracy, the Jet Fusuon 5200 can print over 160,000 cm2 per day and can be equipped with a range of automation capabilities for enhanced productivity.
The advanced 3D printer is based around HP Multi Jet Fusion (MJF) technology, which utilizes a unique multi-agent and multi-pass process and controls the properties of each individual voxel in every print. This results in the ability to combine fine detail with optimal mechanical properties, creating complex geometries that are impossible to produce with CNC machining.
The HP Jet Fusion 5200 Series provides an effective build volume of 380 x 284 x 380 mm and a building speed of up to 5058 cm3 per hour.
Specifications:
| Printer Dimensions: |
2,210 x 1,268 x 1,804 mm (87 x 50 x 71 in) |
| Operating Area: |
3700 x 3700 x 2500 mm (146 x 146 x 99 in) |
| Weight: |
Printer 880kg (1,940lb) Build unit 140.5kg (309.7lb) |
| Power Consumption: | 12 kW |
| Effective Build Volume: |
380 x 284 x 380 mm (15 x 11.2 x 15 in) |
| Building Speed: | Up to 5058 cm3/hr (309 in3/hr) |
| Layer Thickness: | 0.08 mm (0.003 in) |
| Job Processing Resolution: | 1200 dpi |
| Print Resolution: | 1200 dpi |
| Price: | On Application |
| Series: | HP Jet Fusion 5200 |
