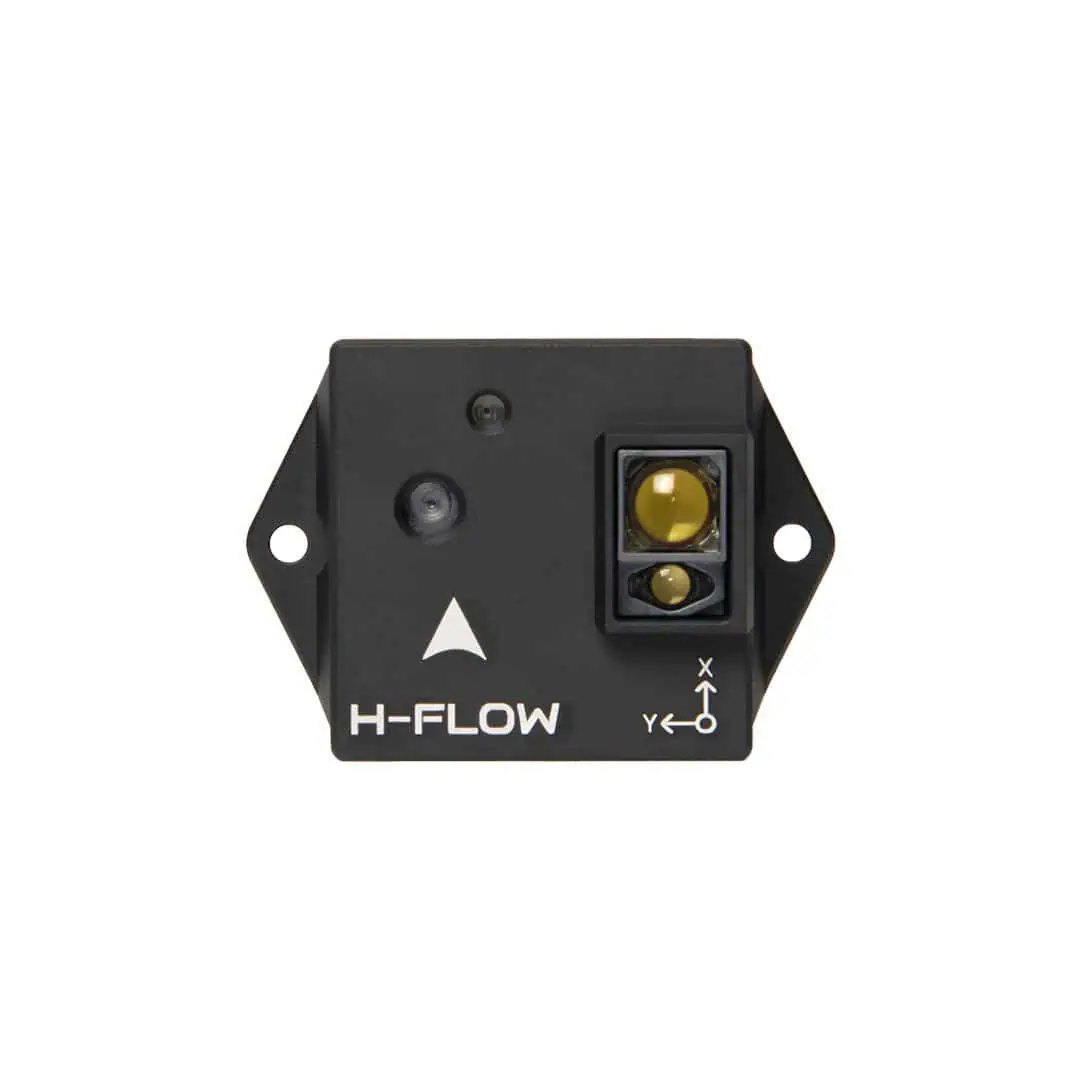

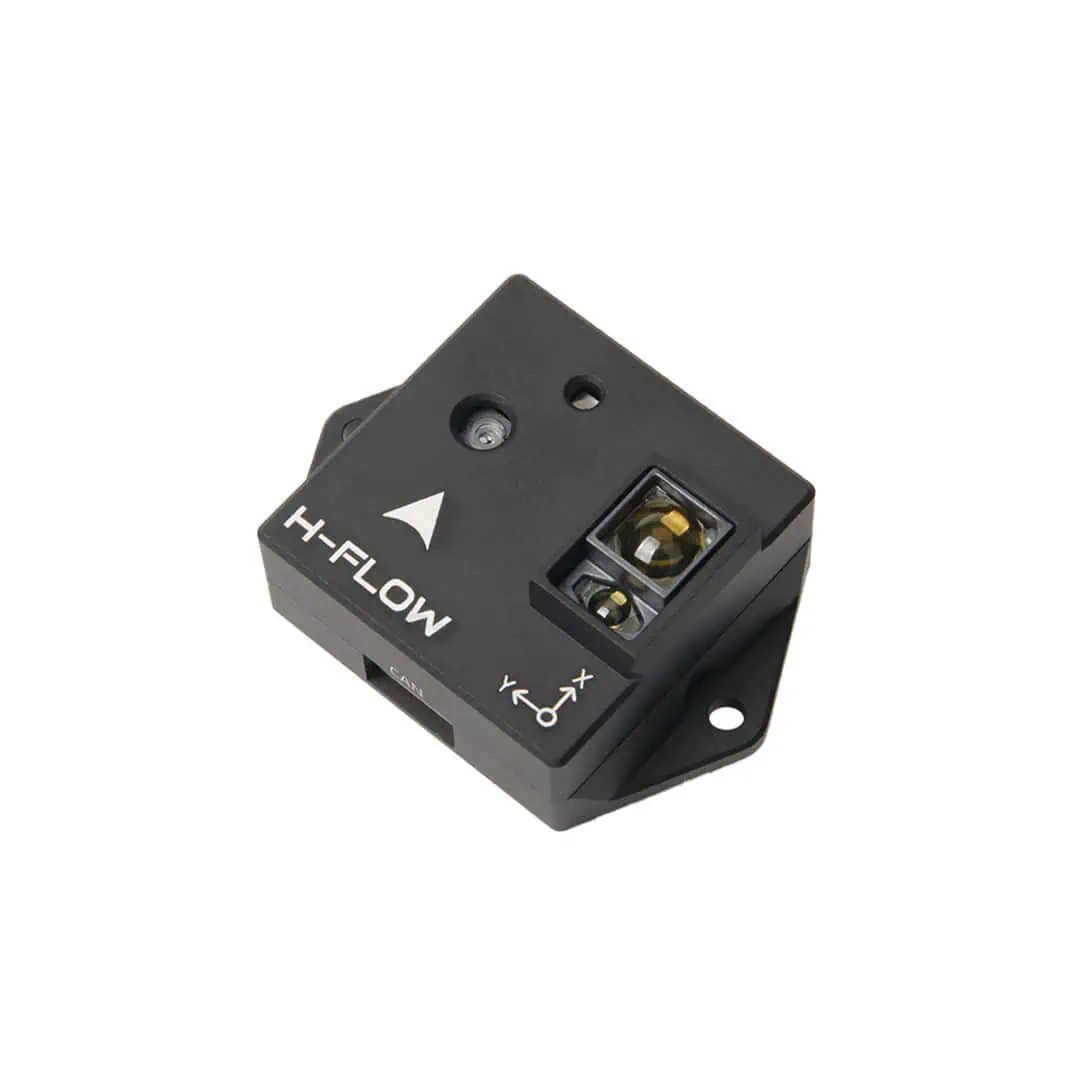

H-Flow Optical Flow & Distance Sensor Module
The H-Flow is a compact and lightweight optical flow and rangefinder module designed to provide high-accuracy motion and altitude data for precise and stable navigation in GNSS-denied environments. It combines a PixArt optical flow sensor, a Broadcom distance sensor, and an InvenSense 6-axis IMU, as well as an infrared LED for enhanced visibility under low-light conditions.

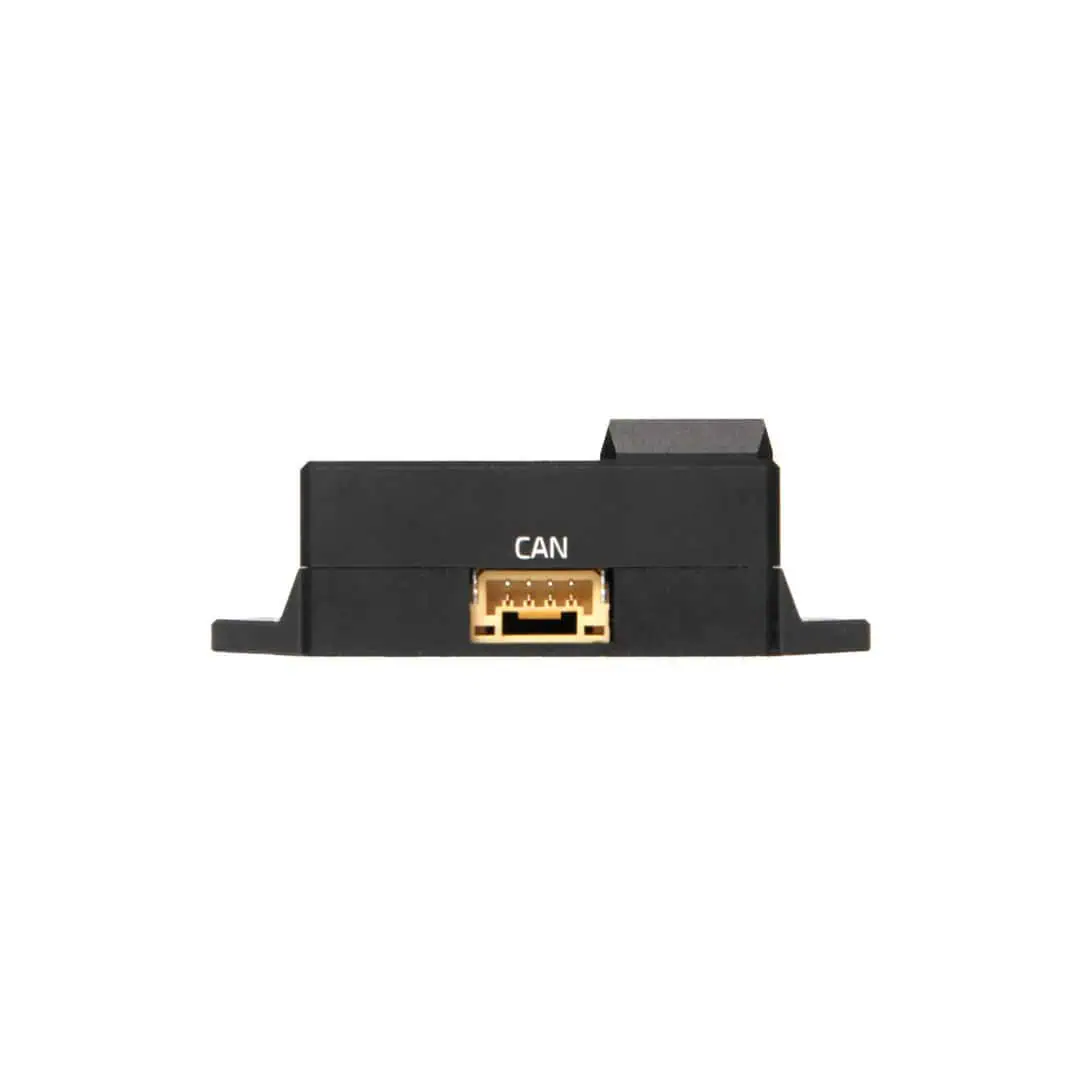

The easy-to-install module utilizes the DroneCAN protocol, and includes a Pixhawk-standard 4-pin CAN connector for seamless integration with a wide range of UAV flight controllers.
Specifications:
| Dimensions: |
41 x 28.4 x 14.2 mm (with case) 26 x 26 mm (PCB) |
| Weight: |
15.2 g (with case) 3.5g (PCB) |
| Optical Flow Sensor: |
Effective viewing angle up to 42° Range from 80mm up to 30m Up to 7.4 rad/s |
| Time-of-Flight Distance Sensor: |
850 nm laser source Field-of-View of 12.4° x 6.2° with 32 pixels Typical distance sensing range up to 30m |
