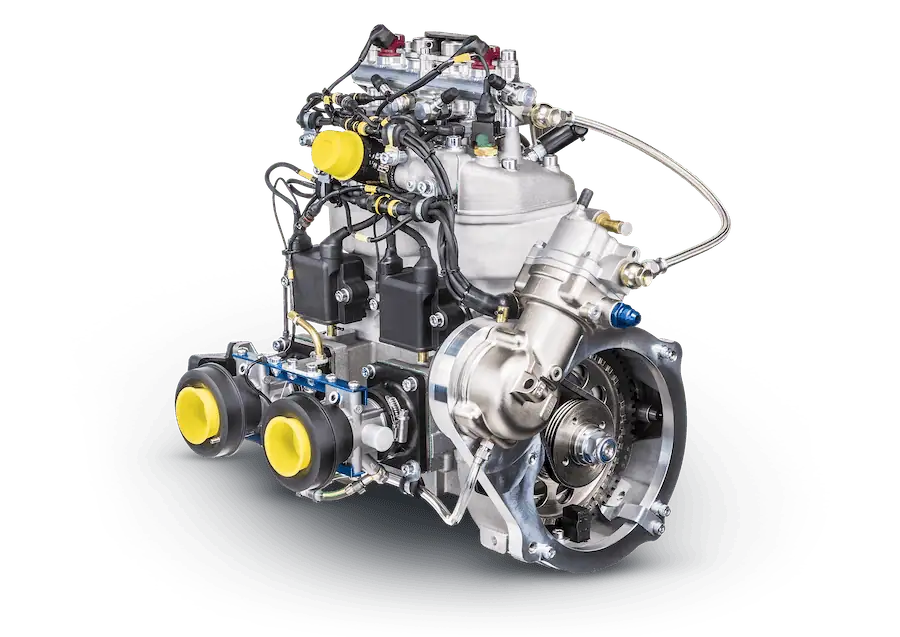

35 Series
With liquid cooling and exceptional durability, the 35 Series offers the maximum possible power-to-weight ratio available on the 70-horsepower market. It can be optionally equipped with dual ignition, an electric starter, and separate lubrication system.
A heavy-fuel variant, the 35HF, is available to suit the requirements of maritime applications and defense forces. Running on kerosene-based fuels such as Jet A, Jet A1, JP5 and JP8, it can also be equipped with a starter/generator delivering up to 3kW at 28V.
Specifications:
| Dimensions (L x W x H): |
35: 472 x 410 x 360 mm (18.58 x 16.14 x 14.17”) 35HF: 481.8 x 453 x 443 mm (18.97 x 17.83 x 147.44”) |
| Weight: | 36 kg (79 lb) with exhaust and water in the engine |
| Displacement: | 625 cm3 (38.1 cu in) |
| Stroke: | 69 mm (2.72 in) |
| Bore: | 76 mm (2.99 in) |
| Max Performance: |
44 kW (60 HP) at 5200 rpm According to DIN 70020 Specification with 194°F coolant |
| Max Torque: |
35: 84 Nm (62 ft.lb) at 5000 rpm 35HF: 67.5 Nm (57.0 ft.lb) at 6000 rpm |
