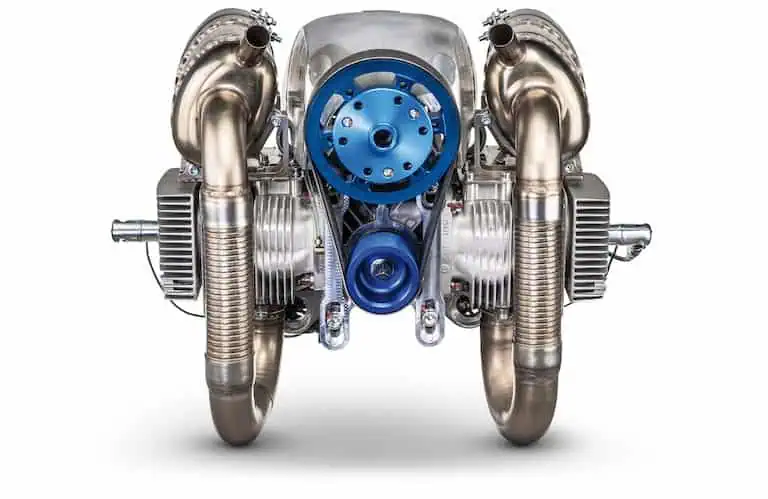

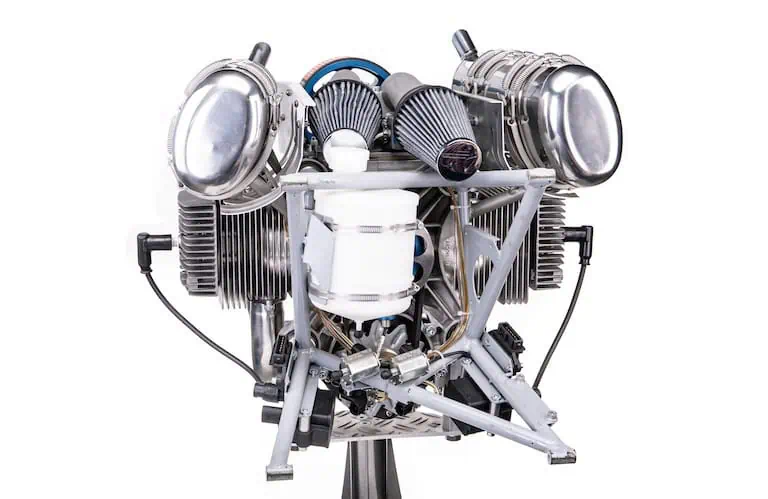

23 Series
The air-cooled 23 Series of two-stroke engines is ideal for UAVs weighing up to 120 kg, delivering 50 HP with an unmatched power-to-weight ratio. It can also provide generator power of up to 250W at 12V.
Engineered to provide superior reliability, the 23 Series offers a 1000-hour TBO and can be equipped with a range of options including dual ignition, fuel injection, an exhaust system, and an electric starter.
Specifications:
| Dimensions (L x W x H): | 286 x 570 x 338 mm (11.25 x 22.44 x 13.3”) |
| Weight: | 22 kg (48.4 lb) without exhaust |
| Displacement: | 521 cm3 (31.8 cu in) |
| Stroke: | 64 mm (2.52 in) |
| Bore: | 72 mm (2.83 in) |
| Max Performance: |
36.7 kW (50 HP) at 6500 rpm According to DIN 70020 |
| Max Torque: | 53 Nm (38.9 ft. Lb) at 6300 rpm |
| Generator Power: | 250W, 12V |
