Smart GNSS Antennas

Harxon's Smart GNSS RTK Antennas are designed to provide advanced multi-constellation positioning for precision agriculture and other UGV and autonomous vehicle applications. With options for both base and rover installations, the antenna series features simultaneous satellite tracking for reliable signal reception even under challenging and obstructing conditions, as well as advanced multi-path resistance technology.

Additionally, the TS112 family of smart rover antennas features either Harxon SLIDE or Hexagon | NovAtel GLIDE technology for enhanced accuracy and smooth linear positioning, as well as a sophisticated terrain compensation algorithm that corrects deviations caused by vehicle roll and pitch on uneven ground. All units feature Bluetooth connectivity, and all except the TS112SE provide 3G, 4G and external/internal radio modem options for flexible communications capabilities.

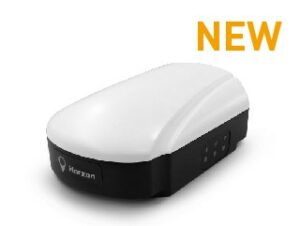

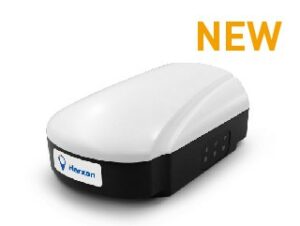

Harxon Smart Antenna TS112TS112 Harxon Smart Antenna TS112 SETS112 SE Harxon Smart Antenna TS112 PROTS112 PRO
Dimensions
(diameter x height)
210 x 155 x 80 mm
Weight < 600g
Power Consumption 2.5W typical, <10W max
Satellite Signals GPS L1/L2
GLONASS L1/L2
BDS B1/B2
GALILEO E1/E5b
SBAS L1
GPS L1/L2
GLONASS L1/L2
BDS B1/B2
GALILEO E1/E5b
SBAS L1
L-Band
GPS L1/L2/L5
GLONASS L1/L2
BDS B1/B2
GALILEO E1/E5a2
/E5b/AltBOC
NavIC(IRNSS) L5
SBAS WAAS/EGNOS
/MSAS/GAGAN/QZSS
L-Band
Horizontal Position Accuracy Single point 1.5m CEP
DGPS 0.4m CEP
SBAS 0.6m CEP
RTK 1cm + 1ppm CEP
Single point 1.5m CEP
DGPS 0.4m CEP
SBAS 0.6m CEP
SAPA(Basic) Below 1m to 10cm CEP
SAPA(Premium) Below 10cm CEP
Single Point L1 1.5m
Single Point L1/L2 1.2m
SBAS 60 cm
DGPS 40 cm
TerraStar-L 40 cm
TerraStar-C 4 cm
RTK 1 cm + 1 ppm
Velocity Accuracy 0.05m/s RMS
Max Position Data Rate 10 Hz max 20 Hz max

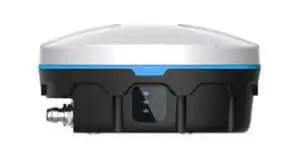

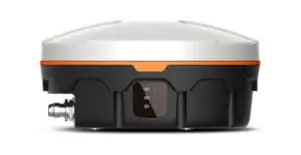

TS100 Series Rover gnss smart antennaTS100 Rover TS300 Rover gnss smart antennaTS300 Rover TS100 Series Base gnss smart antennaTS100 Base
Dimensions
(diameter x height)
160 x 80 mm
Weight <850g <850g <950g
Power Consumption <4.5W <3.5W <8.5W
Satellite Signals GPS L1/L2/L5
GLONASS L1/L2
BDS B1/B2/B3
GALILEO E1/E5a/E5b
GPS L1
GLONASS L1
BDS B1
GALILEO E1
SBAS
GPS L1/L2/L5
GLONASS L1/L2
BDS L1/L2/L3
GALILEO E1/E5a/E5b
Horizontal Position Accuracy Single point 1.5m
DGPS 0.4m
RTK 1cm + 1ppm
Single point 1.5m
DGPS 0.4m
RTK 1cm + 1ppm
Single point 1.5m
Velocity Accuracy 0.03 m/s RMS N/A
Max Position Data Rate 10 Hz
