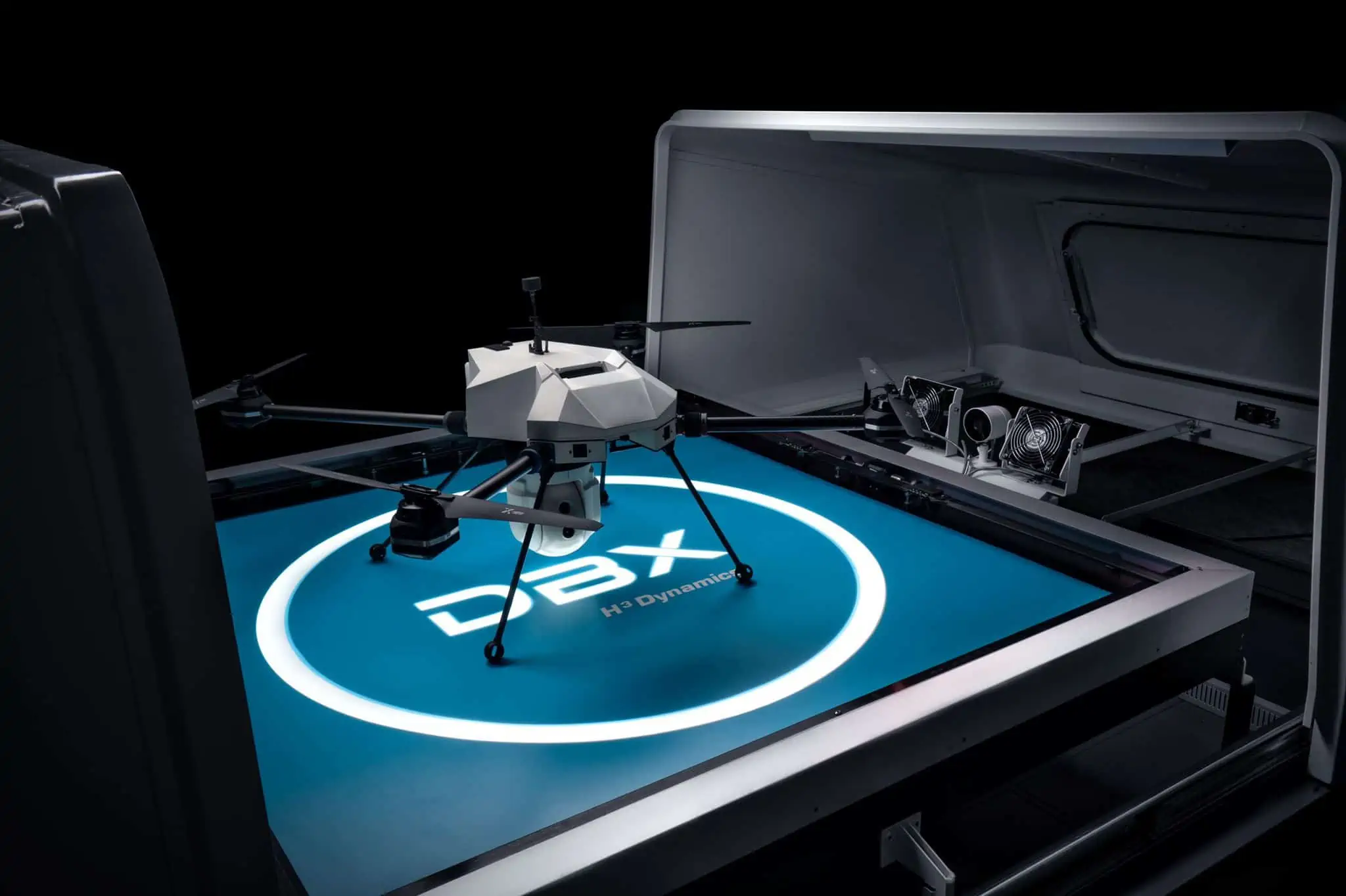

DBX-G7 Drone-in-a-Box System

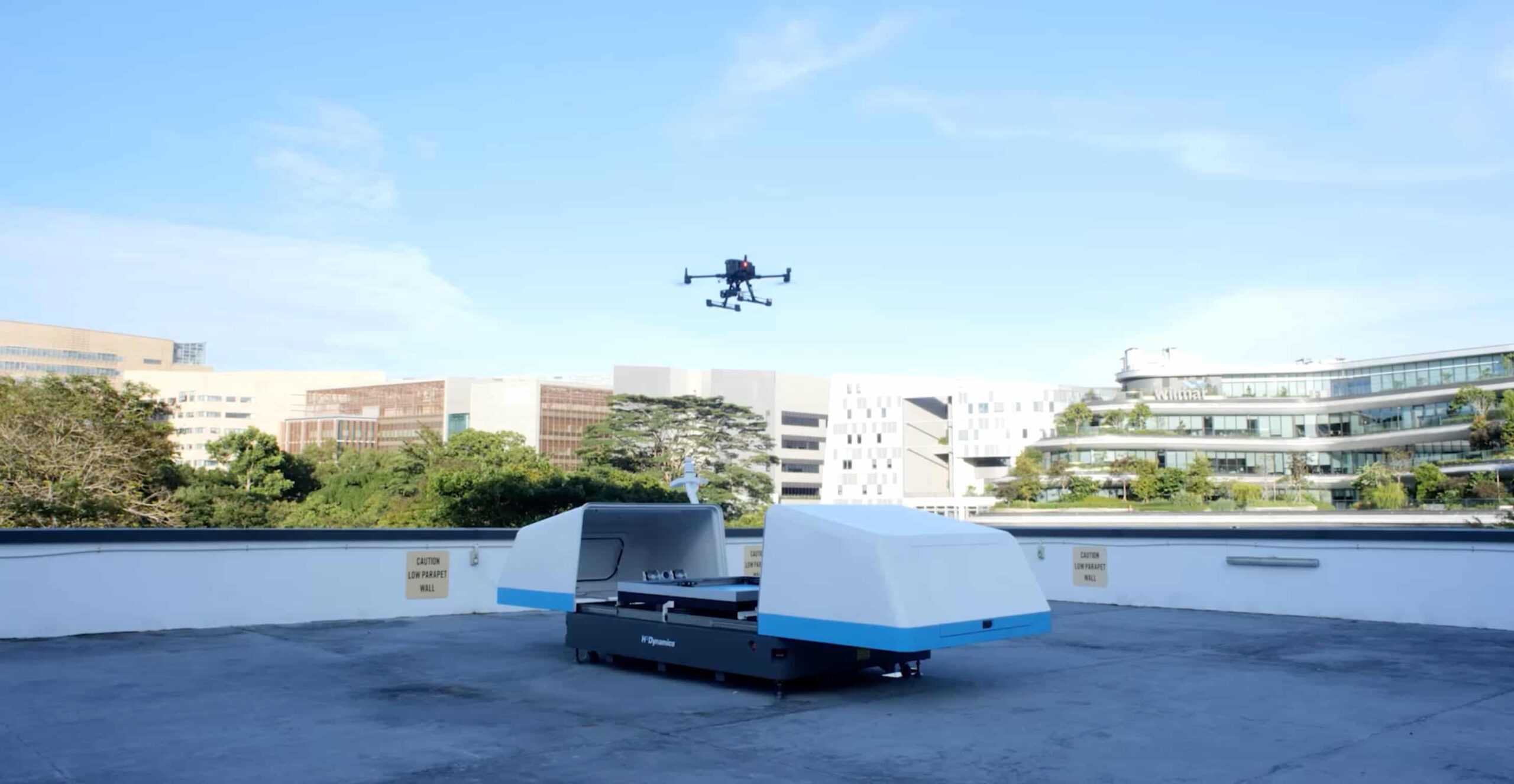

The DBX-G7 is an advanced drone-in-a-box solution that enables fully autonomous operations with a range of commercial UAV models and payload options. Deploying the aircraft in just 40 seconds, the drone station takes care of the entire workflow including navigation, charging, data retrieval and processing.

The robust solution is IP66-compliant and allows both on- and off-grid operations. Communications capabilities include 4G/5G between the station and VMS (video management system), and RF/GSM between the station and drone.

The DBX-G7 can be easily integrated with third-party AI and machine learning software solutions to suit a variety of data processing requirements for different missions. It is ideal for a wide range of applications, including:

  • Building inspection
  • Construction site monitoring
  • Solar farms
  • Emergency response
  • Security
  • Mining
  • Environmental monitoring
  • Hywings H-25
  • Long-range fixed-wing cargo drone with hydrogen propulsion nacelles
Dimensions (L x H x W) 2.78 x 1.42 x 1.96 m (L 5.4m with hatch open)
Weight 450 kg
Video Streaming 1080/720/480p
Electrical Grid Power 110 – 230 VAC
Automatic Charging Current 10 A
