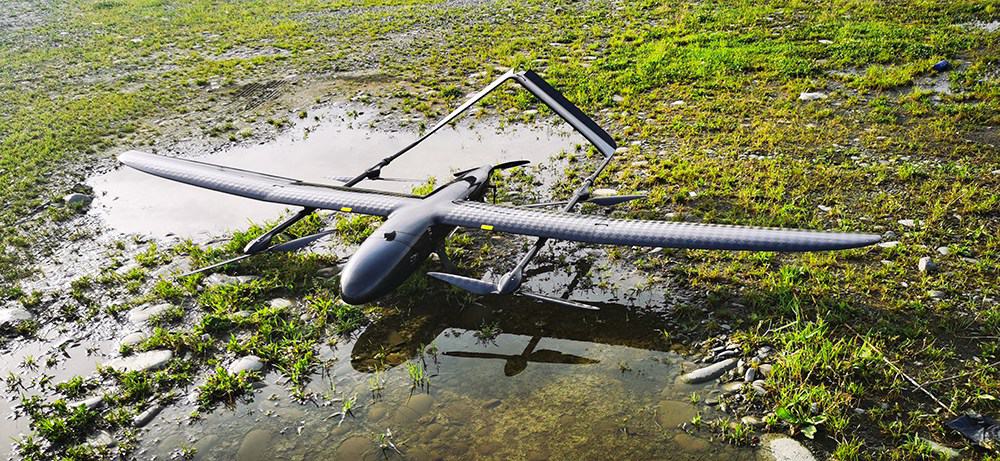

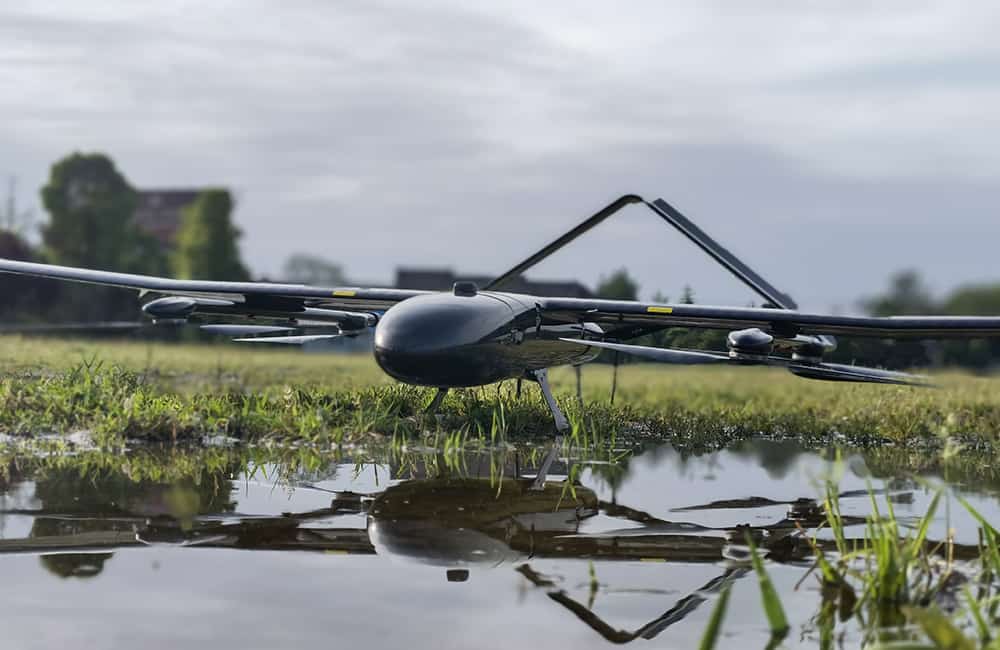

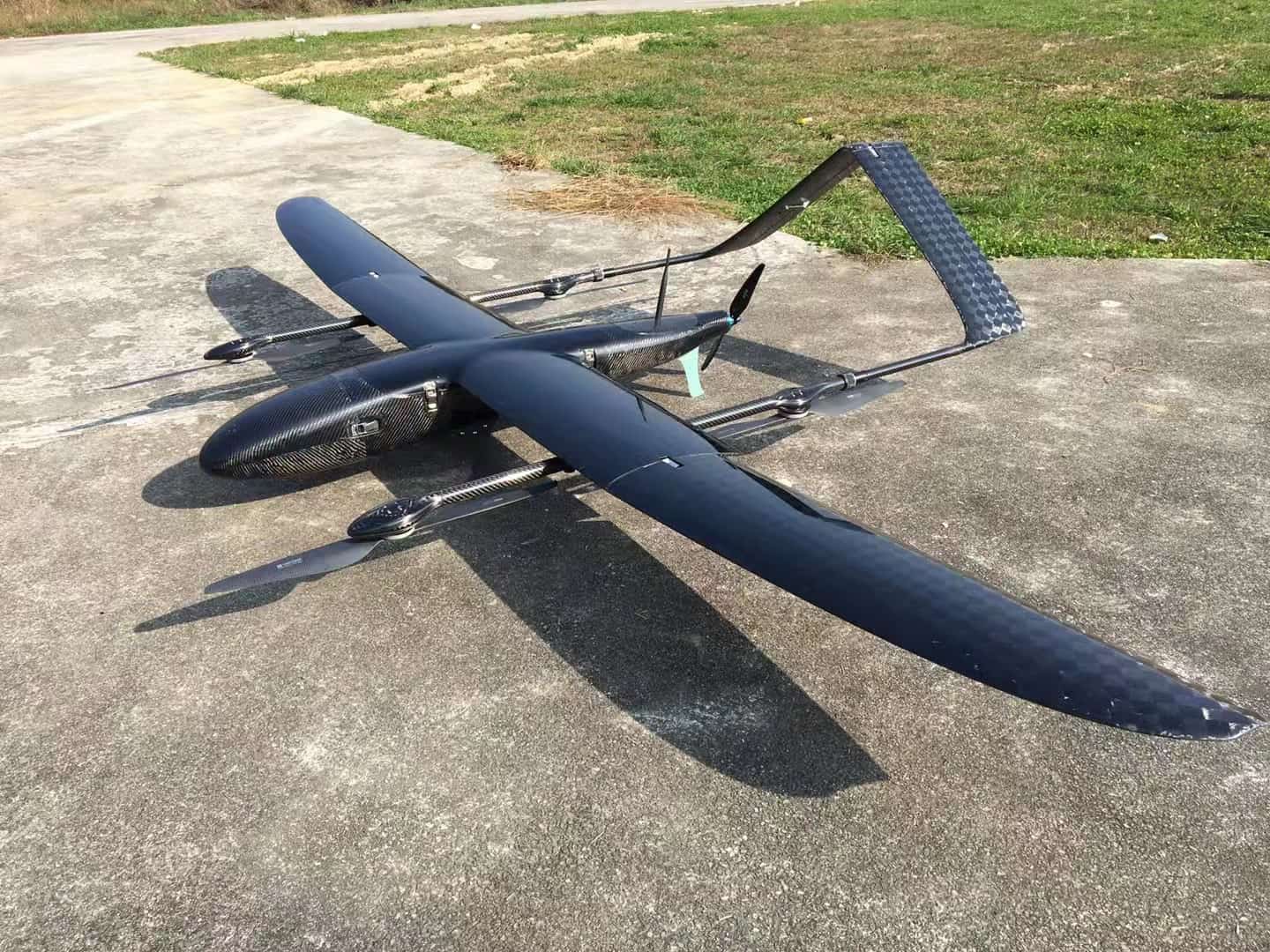

FDG30 VTOL Fixed-Wing UAV
The FDG30 is an electric hybrid VTOL UAV that combines the manoeuvrability of multirotor platforms with the long range and efficiency of fixed-wing aircraft. Designed for missions such as mapping, surveying and surveillance, it can fly for over 6 hours with a 1kg payload.
The aircraft features a lightweight carbon fiber and composite construction, and can withstand winds of up to Force 4 during VTOL operations and Force 7 during forward flight. It includes a Pixhawk 2.1-based flight controller with Here 3 GNSS.
|Dimensions||3 x 1.8m (wingspan x length)|
|Max Takeoff Weight||16 kg|
|Max Payload Weight||2 kg|
|Flight Speed||15-22 m/s cruise, 30 m/s max|
|Max Flight Time||10 hrs|
|Max Altitude||4000m AMSL|
|Control Radius||3km with remote control, 30 km with GCS|
