FOG IMU U123D

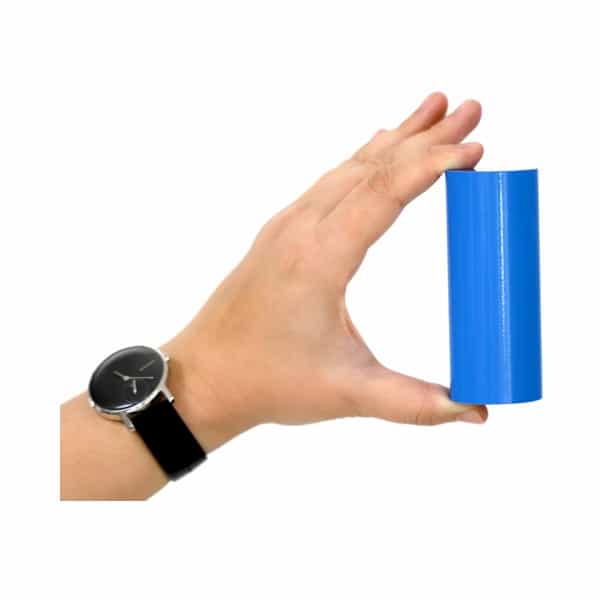

The U123D is a FOG-based inertial measurement unit (IMU) with a lightweight ultra-compact design and robust aluminium housing. Featuring three FOGs and three MEMS accelerometers, it consumes just 1.5 Watt of power and includes a fully-integrated ADC board with RS422 serial communications.
The miniature non-ITAR IMU is ideal for a range of unmanned systems applications, including inertial navigation for UAVs, USVs and UUVs, and drone flight control.
| Dimensions (mm) | ∅40 x 100 |
| Weight (grams) | 180 |
| Power (W) | 1.5 |
| Gyro Input Range (°/s) | 400 |
| Gyro Bias RMS (°/h) | 1 |
| Gyro ARW (°/√h) | 0.05 |
| Gyro Bandwidth (Hz) | 1000 |
| Magnetic Response (°/h/Gauss) | < 0.1 |
| Acc. Range (g) | 10 |
| Acc. Bias Stability (mg) | 0.2 |
| Acc. Bandwidth (Hz) | 250 |
| Data Rate (kHz) | 4 |
| Baud Rate (kBd) | 921.6 |
| Vibration (g, RMS) | 6 |
| Shock Resistance (g) | 350 |
| Operating Temperature (°C) | -40…+70 |
| Housing | μ-metal |
