FOG IMU U121D

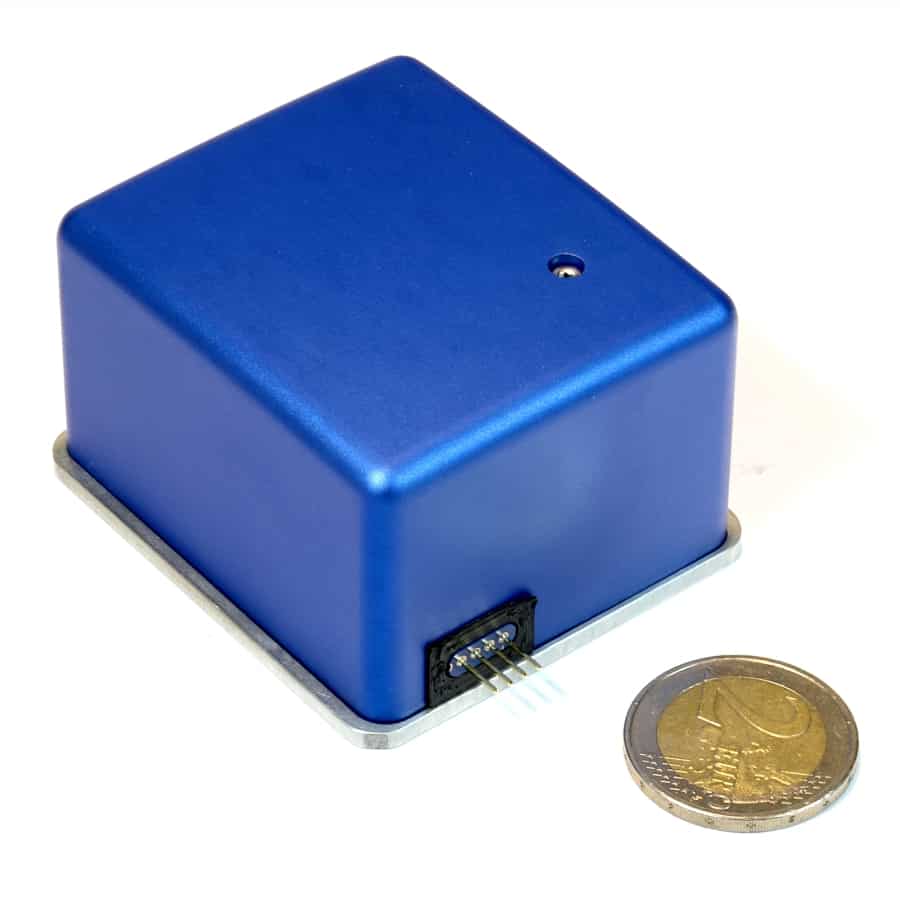

The U121D is a FOG-based inertial measurement unit (IMU) with a lightweight compact form factor and robust aluminium housing. Featuring three FOGs and three MEMS accelerometers, it consumes just 1.5 Watt of power and includes a fully-integrated ADC board with RS422 serial communications.
The miniature non-ITAR IMU is ideal for a range of unmanned systems applications, including inertial navigation for UAVs, USVs and UUVs, and drone flight control.
| Dimensions (mm) | 63 x 56 x 40 |
| Weight (grams) | 145 |
| Power (W) | 1.5W |
| Gyro Input Range (°/s) | 400 |
| Gyro Bias RMS (°/h) | 3 |
| Gyro ARW (°/√h) | 0.05 |
| Acc. Range (g) | 10 |
| Acc. Bandwidth (Hz) | 250 |
| Acc. Bias Stability (mg) | 0.2 |
| Data rate (kHz) | 0.1 - 4 |
| Baud rate (kBd) | 115.2 – 1843.2 |
| Vibration (g, RMS) | 6 |
| Shock Resistance (g) | 350 |
| Operating Temperature (°C) | -40 - +70 |
| Housing | Al alloy |
