FIXAR is a leading developer of professional drones and UAV (unmanned aerial vehicle) platforms for commercial and industrial applications. With advanced in-house R&D capabilities, we develop proprietary drone hardware and software to create state-of the-art solutions for a wide range of industries, including aerial imaging, precision agriculture, oil and gas, surveillance and monitoring, and more.

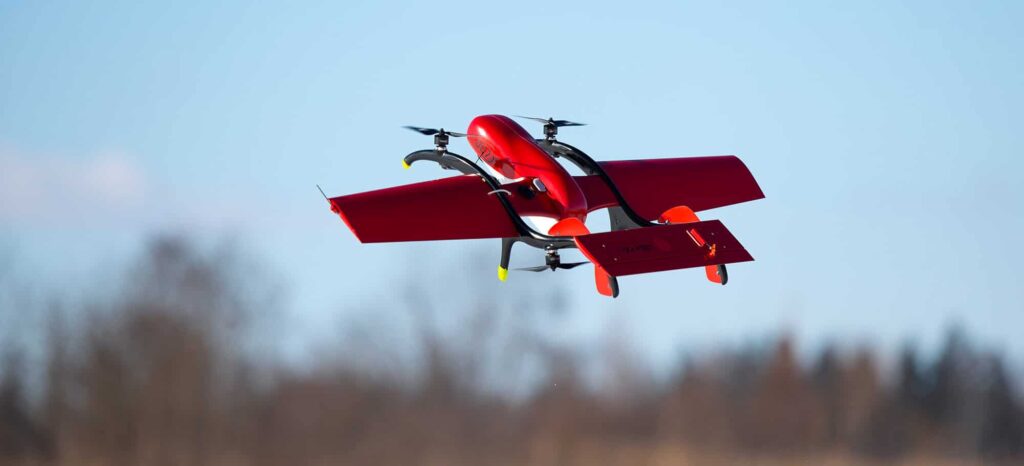

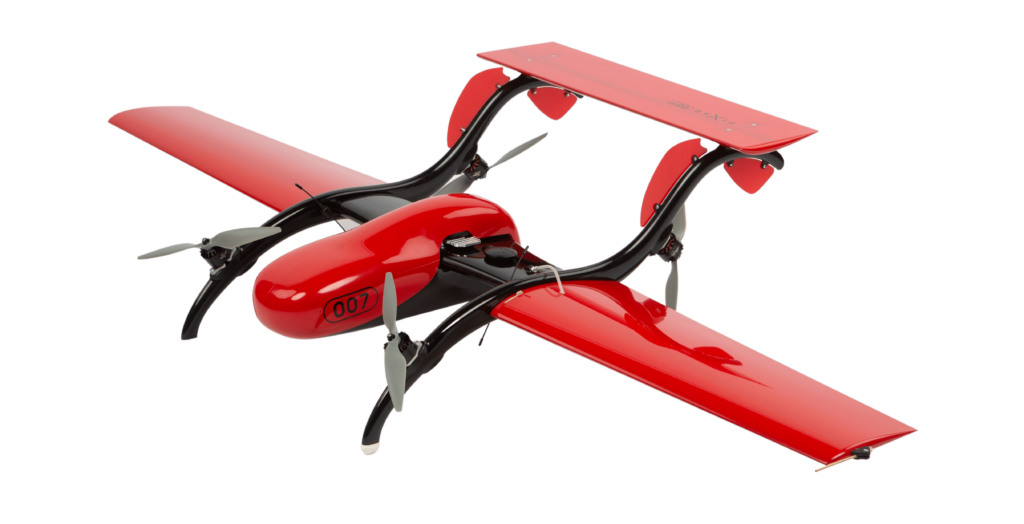

FIXAR 007 Fixed-Wing VTOL UAV
Autonomous hybrid drone for professional operations
The FIXAR 007 is a fully autonomous, fixed-wing VTOL (vertical take-off and landing) UAV designed to meet the needs of a wide variety of commercial and industrial applications, such as mapping and inspections.

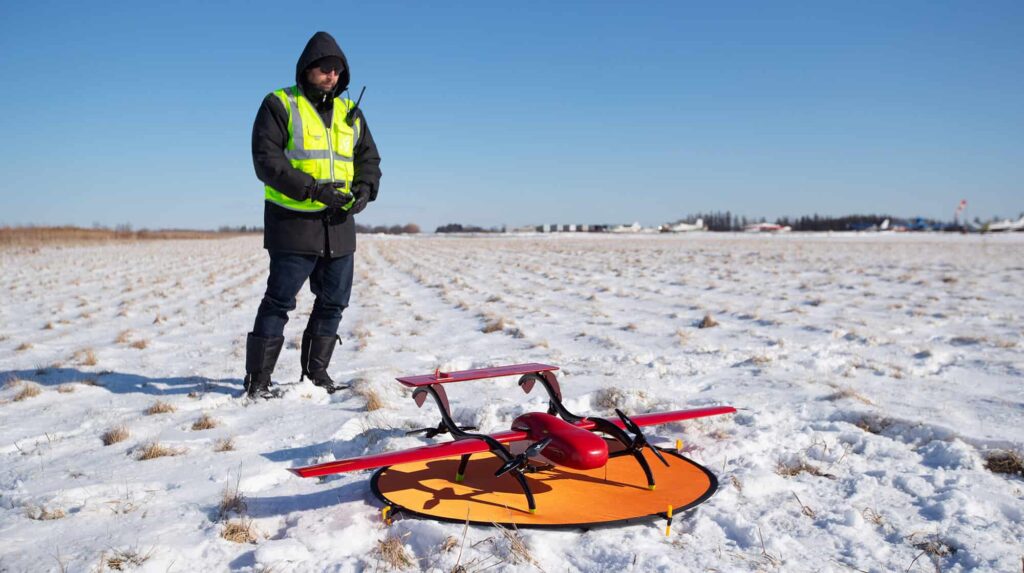

The low-maintenance, easy-to-use platform can be set up in less than five minutes, and can take-off and land vertically with one-metre accuracy, requiring no special launch area preparations.
Advanced proprietary components and technologies
Developed in-house, the UAV utilises our patented Fixed Angle Rotor system for seamless transitions to forward flight and enhanced efficiency due to all motors being in use. This design also features fewer moving parts and thus fewer points of failure. The proprietary FIXAR embedded autopilot provides complete autonomy and the utmost in safe operation with minimal human intervention.
We have also developed our own ground control station software for the FIXAR 007. xGroundControl Software provides intuitive mission planning and flight control with local offline operation and the ability to upload 3D maps.

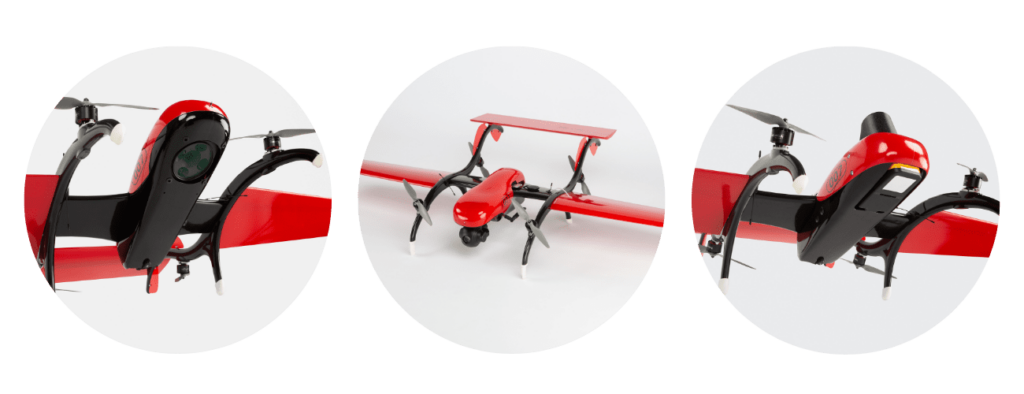

Versatile multi-sensor capability

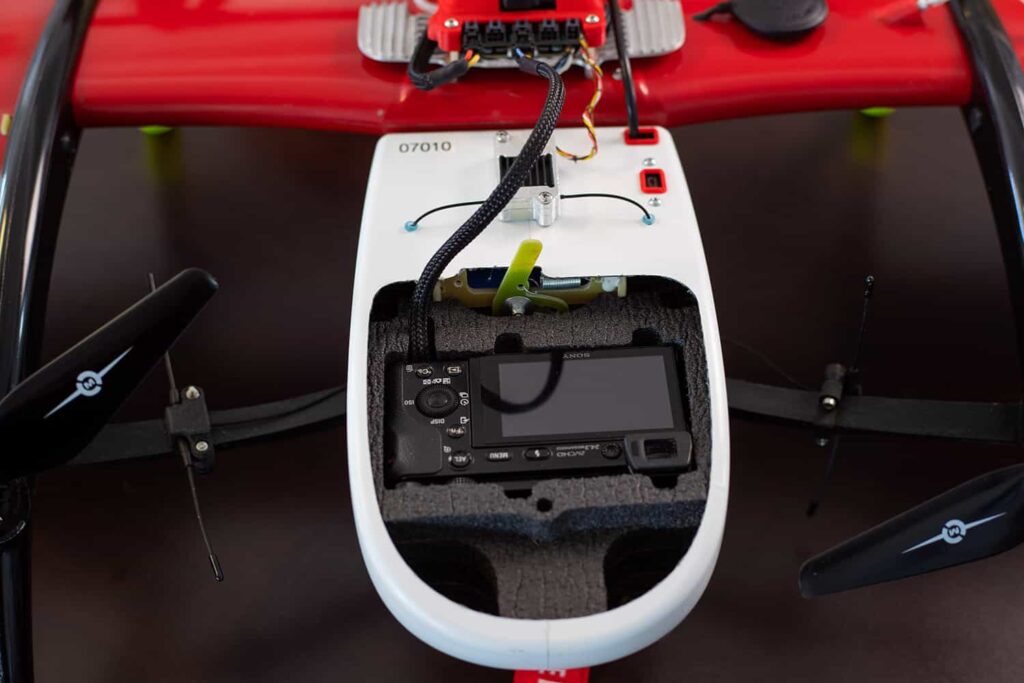

With a payload capacity of 2kg (4.4lbs) and a spacious modular payload pay, the FIXAR 007 VTOL UAV can be equipped with a wide variety of sensors, and can accommodate multiple payloads at once to accomplish your mission objectives in fewer flights.
Possible payload combinations include arrays of RBG cameras for ultra-high resolution mapping, RGB and multi-spectral sensors, LiDAR, gas and radiation sensors.
Our proprietary software makes it easy to integrate almost any COTS sensor on the market.
The drone’s integrated autopilot provides a 2-channel power supply of up to 12V/2A per channel, and send control signals to carry out camera and sensor functions at predetermined positions. All data is stored for later post-production processing.
The FIXAR 007’s patented hybrid design combines the take-off and landing manoeuvrability of multirotor drones with the increased payload capacity and endurance of fixed-wing UAVs. The versatility of the unmanned aircraft allows it to handle a range of use cases – from mapping and surveying to last-mile delivery and stockpile management – thus doing away with the need for multiple platforms.
Other advantages of the FIXAR 007 include:
- High manoeuvrability, including hovering mode
- Resistance to severe weather conditions
- Robust control and failsafe operation with proprietary autopilot
- Autonomous take-off & landing even in rough terrain
- Protection from strong electromagnetic fields
- No need for bulky launchers or capture devices
- Equipped with mission’s data logging system – FIXAR BlackBox
Comprehensive maintenance and technical support

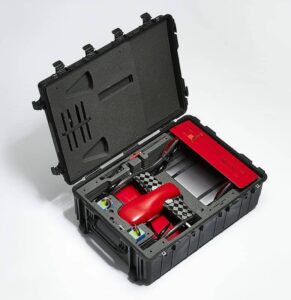

As part of an end-to-end UAS solution, the FIXAR 007 package includes a free two-day training course and online certification, which covers all the essential information needed to operate the drone.
The package also includes a warranty period of 12 months or 80 flights from date of customer receipt. During this period, we will provide free service and support to repair any damage or malfunction covered by the warranty.
|Weight (in case with equipment)||23 kg|
|Max payload||2 kg|
|Max take-off weight||7 kg|
|Speed||27 m/s max, 19 m/s cruising|
|Max flight time||60 mins|
|Maximum flight distance||60 km|
|Wind resistance (vertical flight)||12 m/s|
More information: FIXAR 007 Fixed-Wing VTOL UAV

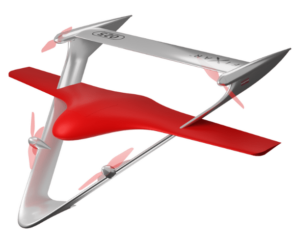

FIXAR 025 Fixed-Wing eVTOL UAV
Autonomous fully-electric hybrid drones for BVLOS and long-range missions
The FIXAR 025 is a fully-electric autonomous UAV designed for long-range and BVLOS (beyond visual line of sight) commercial and industrial applications including mapping, aerial imaging, surveillance, inspection and monitoring, and more.
The versatile platform can be equipped with a variety of easily-swapped payload modules as well as third-party sensors, allowing one aircraft to perform a range of different missions and providing maximum return on investment.
The UAV is also equipped with a patented safety system that secures all sensors as well as the built-in BlackBox data backup system.
The FIXAR 025 features a lifting body aircraft design that maximizes efficiency and flight endurance, and can carry up to 10 kg (22 lbs) of payload for distances of up to 300 km (186 mi) on a single battery charge. With no additional launch or recovery equipment required, the aircraft can be operated from an extremely low footprint and can be deployed easily and rapidly.
The FIXAR 025 has been designed to support integration with AI solutions as well as unmanned traffic management (UTM) ecosystems anywhere in the world.
The closed-source software allows to build and edit a flight mission and monitor missions in real-time using 3D visualization for one or multiple drones simultaneously. The software has automated mission planning and data flow to make the process even easier and faster.
Already self-proven in operations with FIXAR 007, the improved proprietary autopilot software version 2.0 provides an autonomous flight. It is also protected against confidential data breaches and is now compatible with AI and LTE.
|Wingspan||2800 mm (9.2 ft)|
|MTOW||25 kg (55 lbs)|
|Max payload||10 kg (22 lbs)|
|Cruise speed||85 km/h (52.8 mph)|
|Max flight time||3.5 hrs|
|Maximum flight distance||300 km (186 mi)|
|Maximum altitude||5000 m (16 404 ft) ASL|
More information: FIXAR 025 Fixed-Wing VTOL UAV

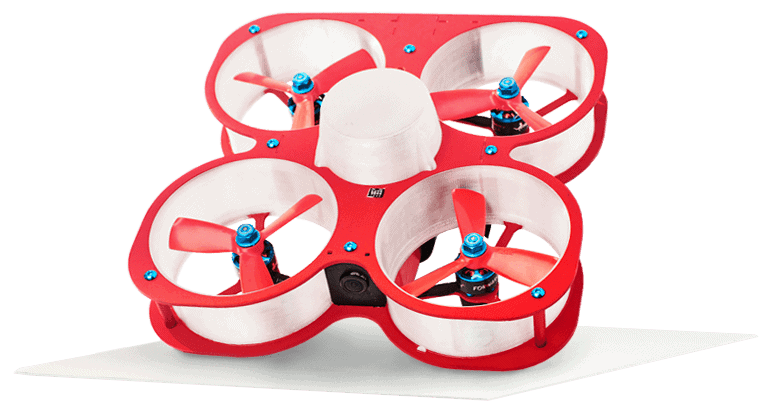

FIXAR INDOOR Drone
Multirotor inspection drone for INDOOR mapping
FIXAR INDOOR is a multirotor drone designed for inspection, monitoring and mapping of indoor and confined spaces such as mines, cellars, warehouses and abandoned buildings.
The inspection drone features a main and rear camera with seamless switching between the two for detailed imaging. The system’s real-time video transmission provides a reliable and high-quality signal even through complex reinforced concrete structures.
With a rugged collision- and fall-resistant body, the drone is equipped with a suite of active and passive safety features that minimise the risk of damage to property and people, including a four-way LiDAR obstacle detection system, infrared sensors, strobe lights, and additional custom options.
FIXAR INDOOR provides a range of other benefits, including:
- Enhanced personnel safety when inspecting potentially hazardous areas
- Completes visual inspections in rapid timeframes
- VTOL operation is ideal for indoor operation
- Simple and customizable design for versatility and low maintenance requirements
- Dust- and moisture-proof
- Operates under no-light conditions
FIXAR is working on improvement of current solution. If you are interested in the FIXAR INDOOR solution and would like to contribute to its development, please contact us to get more information.
More information: FIXAR Indoor Drone
