XPedite6370 3U VPX-REDI SBC

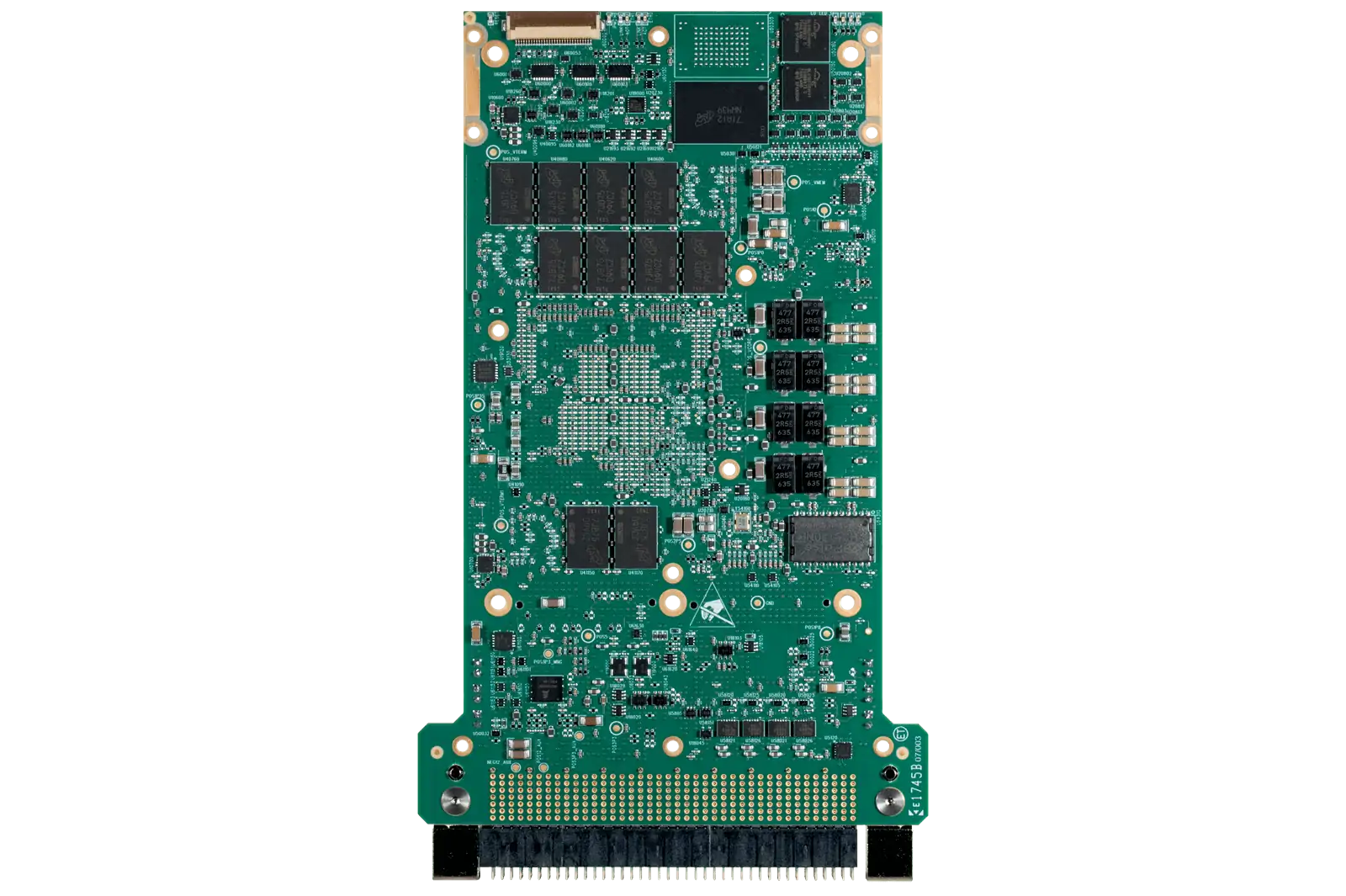

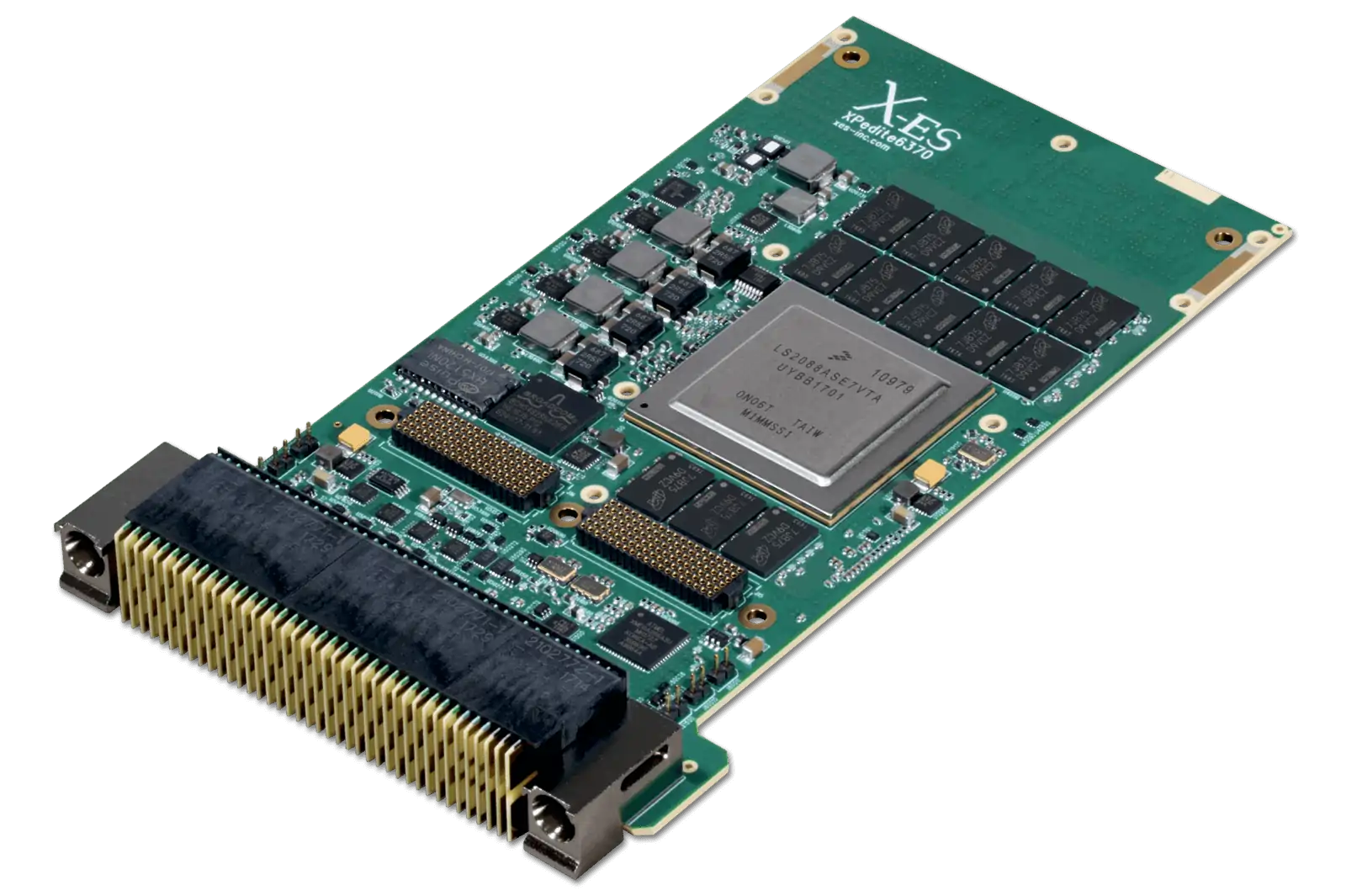

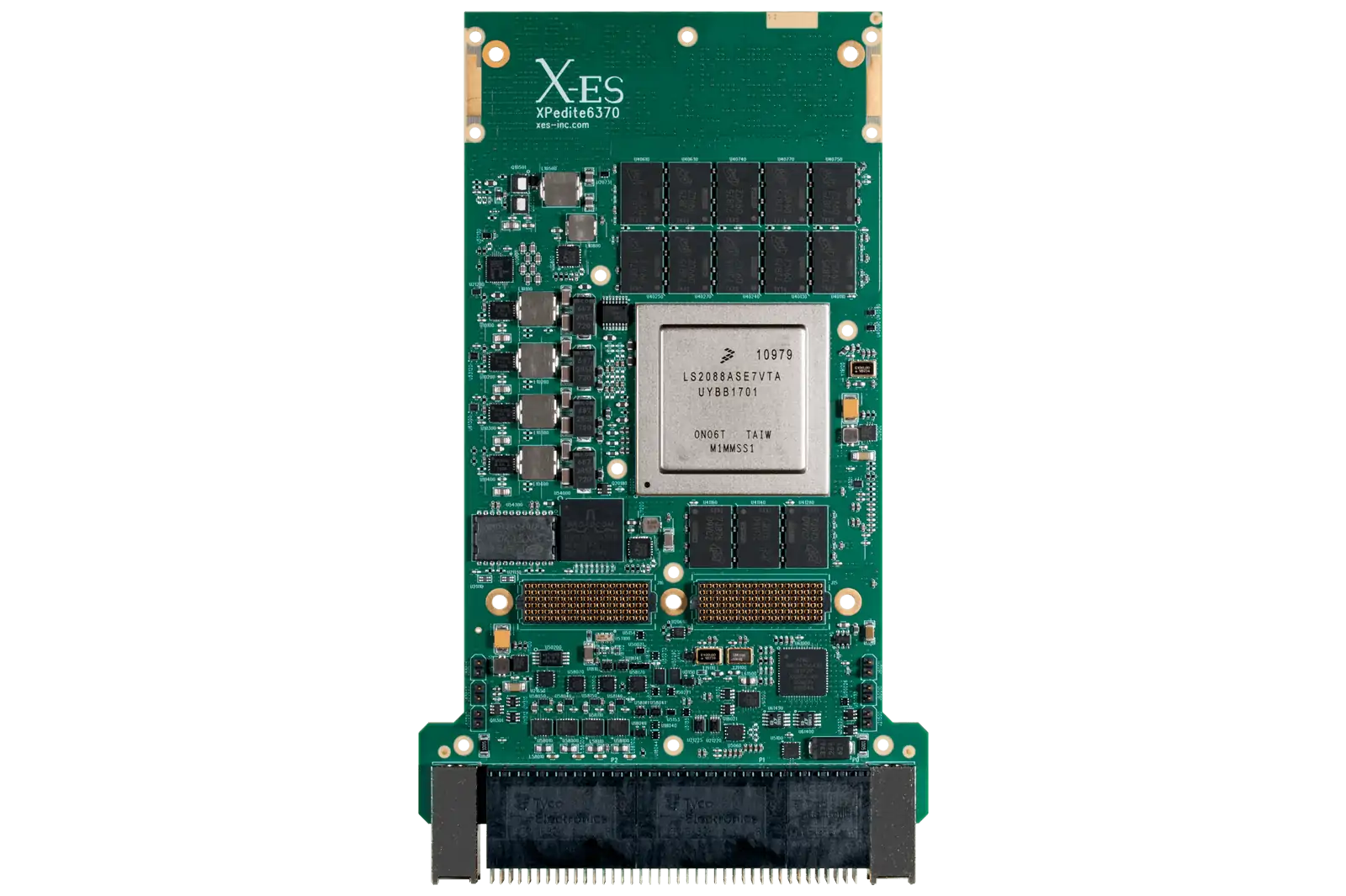

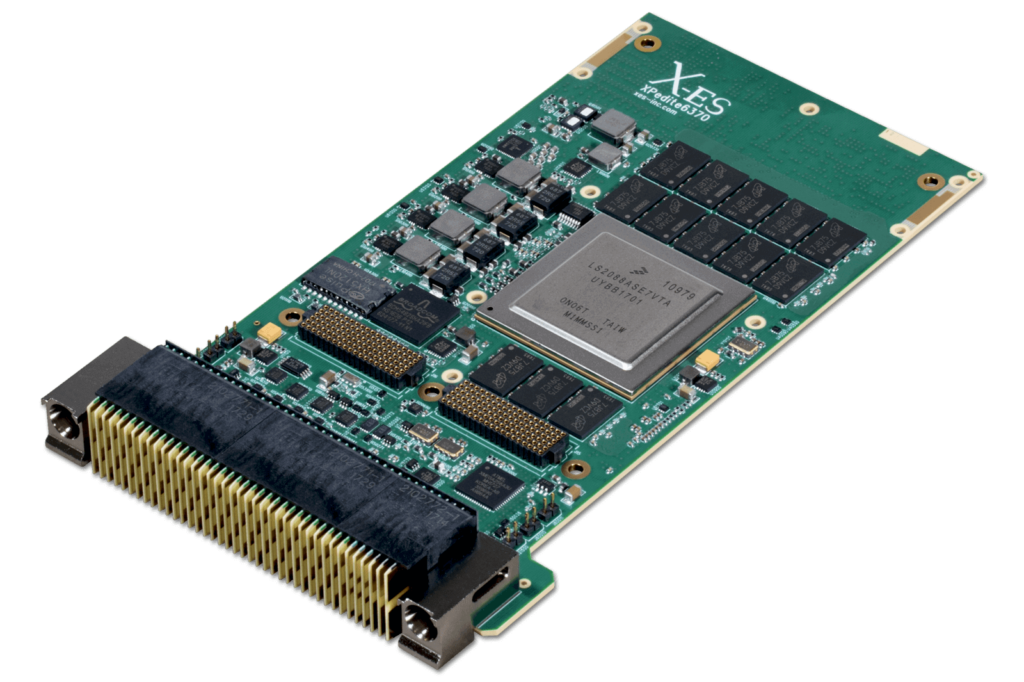

The XPedite6370 is a 3U VPX-REDI single board computer built around the NXP QorIQ LS2088A ARM-based processor, which features eight ARM Cortex-A72 CPUs running at up to 2.0 GHz as well as a 128-bit NEON-based SIMD engine for each core.

Leveraging the superior performance-per-watt ratio of an ARM-based processor module, the XPedite6370 is an ideal processing solution for the low-power requirements of unmanned systems.

The system is compatible with multiple VITA 65 OpenVPX slot profiles. It supports up to 16 GB of DDR4-2100 ECC SDRAM and provides a wide variety of I/O options, including multiple 10 Gigabit Ethernet and PCIe Gen3 interfaces.

Growth and expansion capabilities include an XMC site with full 10 mm I/O envelope support and a 0.8 in. VPX slot pitch. The system’s SWaP-C profile is minimised while providing a range of COTS options for additional I/O, storage, or processing.
