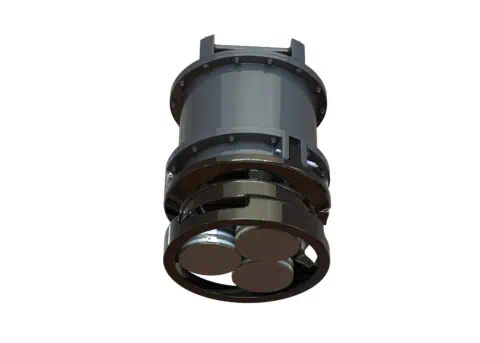

Echoes Compact Sub-Bottom Profiler
Designed for USVs and small vessels, Echoes Compact sub-bottom profiler delivers high-resolution images of sedimentary deposits and buried objects from very shallow water down to 400m of water depths. One-man portable, it is ideally suited for river, lake and ocean surveys regardless of the seabed topography.
FEATURES
- One-man portable Chirp system
- Widest spectrum coverage (5 – 15 kHz)
- Versatile implementation: USV kit, pole-mounted or simply roped
- Vertical resolution (7.5 cm)
- Penetration up to 40 m in clays
- Good penetration from clay to sands due to a powerful low frequency signal
BENEFITS
- 2-parts splitable system
- True flat bandwidth ultimate resolution capacity and power efficiency
- Perfect positioning and heave compensation
- Compatible with any bathymetric echosounder
DELPH SEISMIC SOFTWARE
- All-in-one optimized geophysical processing and interpretation
- Easy access to all data collected for geologists and geophysicists
- Compatible with leading industry sensors and formats
- Best possible 2D/3D QC
- Visualization and reporting capabilities
APPLICATIONS
- Pre and post dredging
- Sedimentology / Paleoseismology
- Archeology and Geo-archeology
- Buried objects detection (boulders, pipelines)
- De-risking survey Echoes
