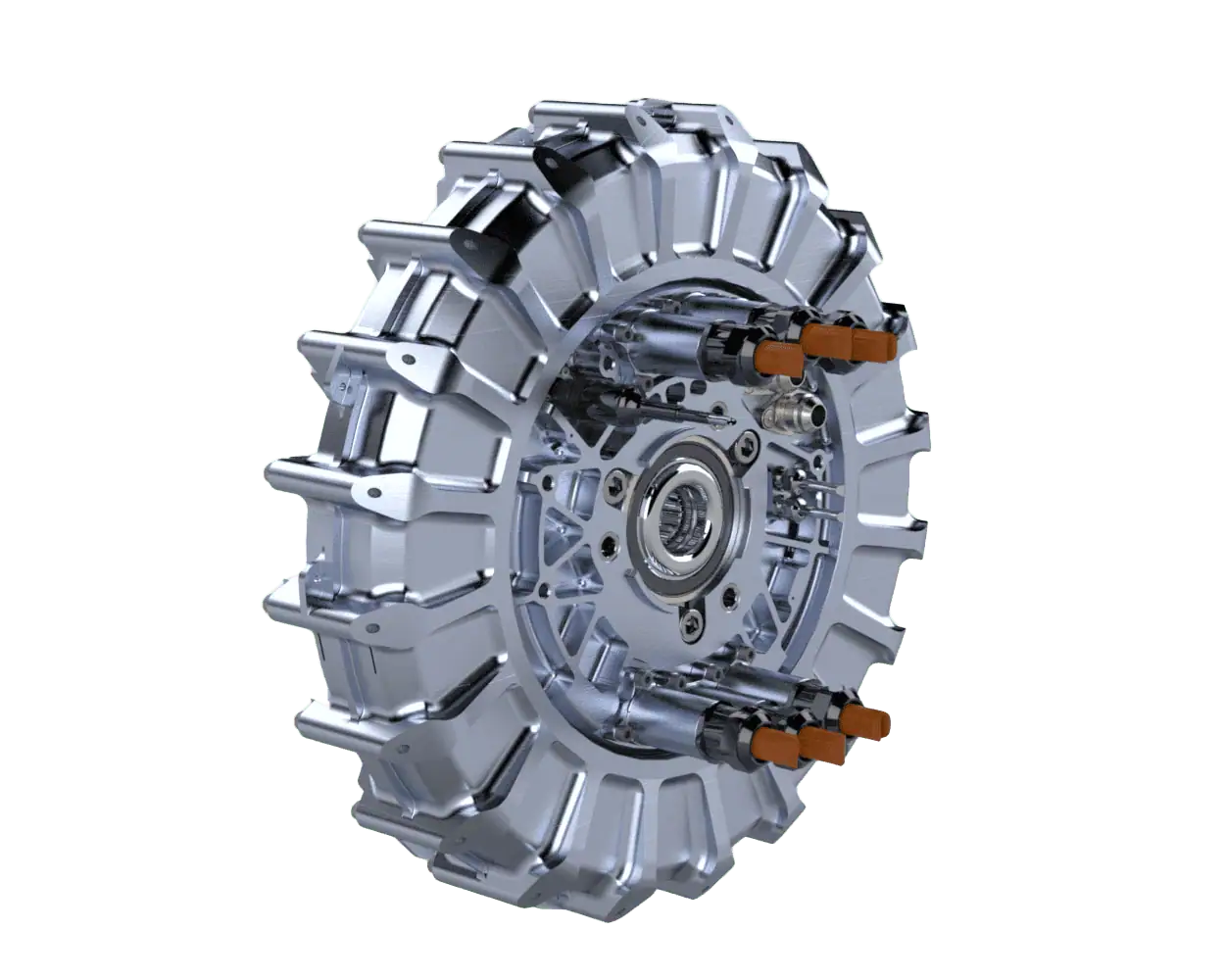

D1700 Electric Motors
Our D1700 motors are designed for applications where the motor is connected directly to a propellor, without a reduction stage.
The D1700 features best in class peak specific torque of ~56Nm/kg, where dimensions are ∅450mm (D) x 170mm (L).
The D1700 has evolved from a flight proven pedigree with over 1000+ hours of inflight testing.
| Peak torque (30s): | 1700Nm (1254lb-ft) |
| Peak power (30s): | 350kW @ 2000rpm (470hp) |
| Continuous torque | 1500Nm (1106lb-ft) |
| Continuous power: | 250kW @ 1600rpm (335hp) |
| Max speed: | 2500rpm |
| Mass: | ~40kg to 30kg |
| Size: | ∅450mm x 170mm (∅17.7″ x 6.7″) |
| Cooling medium: | Dielectric Oil |
| Cooling fluid volume: | 0.7l (24.6fl.oz) |
| Intended altitude: | Up to 15,240m (50,000ft) |
