Intelligent Power Systems

Our intelligent power systems (iPS) are complete power management solutions for UAVs, converting the AC voltage produced by a starter generator to tightly regulated DC outputs for onboard avionics, motors and payloads. The smart power systems provide a wide array of real-time performance and operational data via CANbus for advanced analytics, and an easy-to-use open API allows custom application development for parameter configuration, alerts and alarms, and other mission-specific requirements.

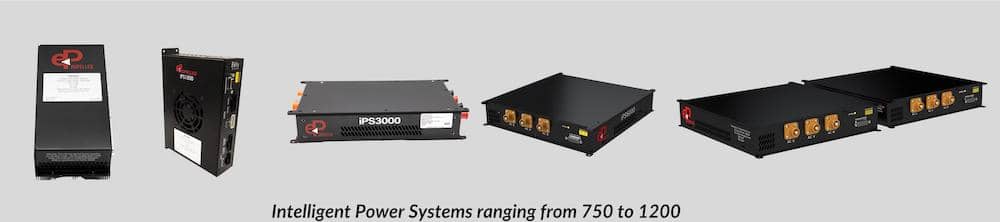

Intelligent Power Systems for drones

All iPS units can also be integrated with our electronic engine starters to create a system for driving the starter generator during engine start sequences.

Specifications:

  iPS750 iPS1500 iPS3000 iPS6000
Dimensions 201.9 x 99.3 x 54.0 mm (7.95 x 3.91 x 2.13") 204.8 x 155.2 x 50.0 mm (8.06 x 6.11 x 1.97") 286.4 x 152.4 x 52.6 mm (11.3 x 6.0 x 2.1") 297.8 x 297.7 x 52.6 mm (11.725 x 11.72 x 2.07")
Weight 780g (1.72 lbs) 1115g (2.46 lb) 1540g (3.4 lb) 2800g (6.17 lb)
Input Voltage Range 25-85V (no load) 50-85V (full load) 25-95V (no load) 50-95V (full load) 25-95V (no load) 50-95V (full load) 25-95V (no load) 50-95V (full load)
Max Total Input Power 831W 1662W 3150W 6300W
Max Continuous Output Power 750W 1500W 3000W 6000W
Primary Output Voltage 28V 28V 28V or 48V 28V or 48V
Secondary Output Voltage 12-14V 5-8V 12-14V 5-8V
