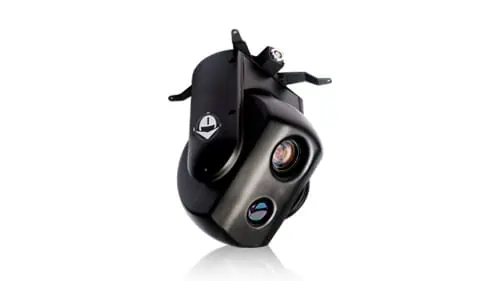

Veronte 30z Drone Camera Gimbal
The 30z camera gimbal is a high-performance gyro-stabilized EO/IR camera payload with precision aiming that can be integrated into fixed-wing, multirotor and unmanned helicopter platforms. Featuring a visible HD camera with 30x optical zoom and a 640x512 FLIR infrared imager, it is ideal for inspection, surveillance, border control, law enforcement, environmental conservation and more.
The high-accuracy gimbal includes onboard video processing and image enhancement capabilities, with advanced functions including geotagging, geolocation, long-distance target tracking and detection, and fly-by camera functionality. These embedded capabilities minimize response time and provide efficient operation without relying on a datalink.
Specifications:
| Dimensions | 207 x 148 x 148 mm |
| Weight | 1700g |
| Power Input | 18 - 26 VDC, 24W (72W max.) |
| Focal Length |
4.3 – 129 mm (EO) 14 mm (IR) |
| Aperture Size | F/1.6-4.7 (EO) |
| Zoom |
30x optical (EO) 8x digital image enhancing (IR) |
| IR Spectrum | 7.5-13.5μm |
| Image Size |
1920x1080p (EO) 640×512 (IR) |
| Real-time Video |
1080p, 60 FPS (EO) 480p, 9Hz (IR) |
| Horizontal FoV |
2.3º to 63.7º (EO) 18º (IR) |
| Slew Rate | 180º / 375 milliseconds |
| Elevation | 360º continuous |
| Azimuth | 360º continuous |
