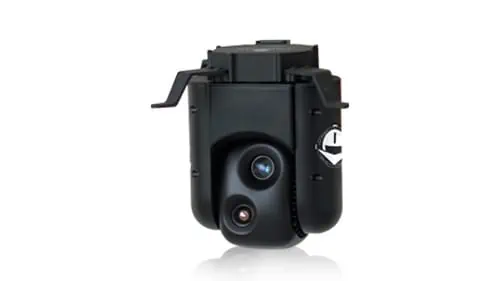

Veronte 10z Drone Camera Gimbal
The 10z camera gimbal is a low-SWaP gyro-stabilized EO/IR camera payload that can be integrated into fixed-wing, multirotor and unmanned helicopter platforms. Featuring a visible HD camera with 10x optical zoom and a FLIR infrared imager, it is ideal for inspection, surveillance, border control, law enforcement, environmental conservation and more.
The high-accuracy gimbal includes onboard video processing and image enhancement capabilities, with advanced functions including geotagging, geolocation, target tracking, and autonomous objective-following. This embedded functionality minimizes response time and provides efficient operation without relying on a datalink.
Specifications:
| Dimensions | 131 x 120 x 110 mm |
| Weight | 980g |
| Power Input | 18 - 26 VDC, 24W (72W max.) |
| Focal Length |
3.3-33mm (EO) 13.8mm (IR) |
| Aperture Size | F/1.8-3.4 (EO) |
| Zoom |
10x optical (EO) 8x digital image enhancing (IR) |
| IR Spectrum | 7.5-13.5μm |
| Image Size |
720p, 30 FPS (EO) 320 x 256, 9Hz (IR) |
| Horizontal FoV |
6.9º to 58.2º (EO) 16º (IR) |
| Slew Rate | 180º / 375 milliseconds |
| Elevation | -80 to +260º |
| Azimuth | 360º continuous |
