MCS Ground Control Station Rugged laptop-based UAV GCS
MCS Ground Control Station

Rugged laptop-based UAV GCS

Visit Website Send Message
MCS Ground Control Station

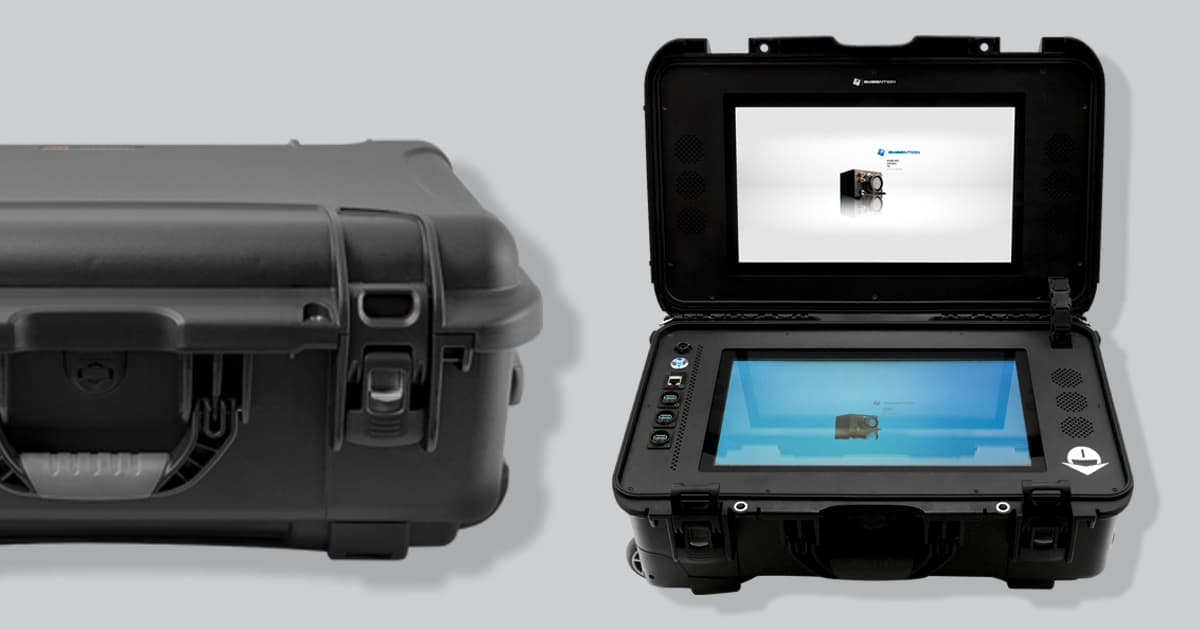

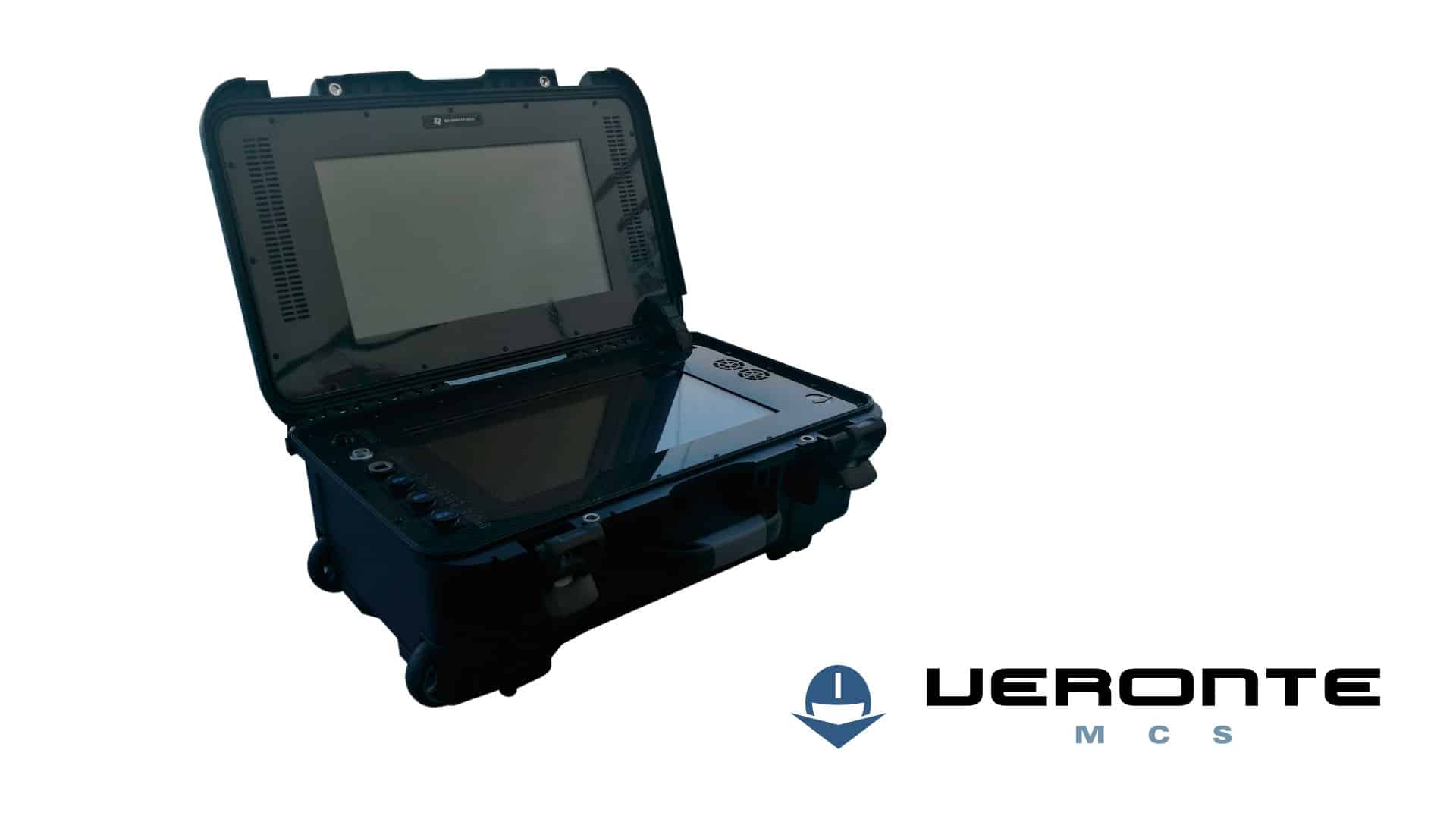

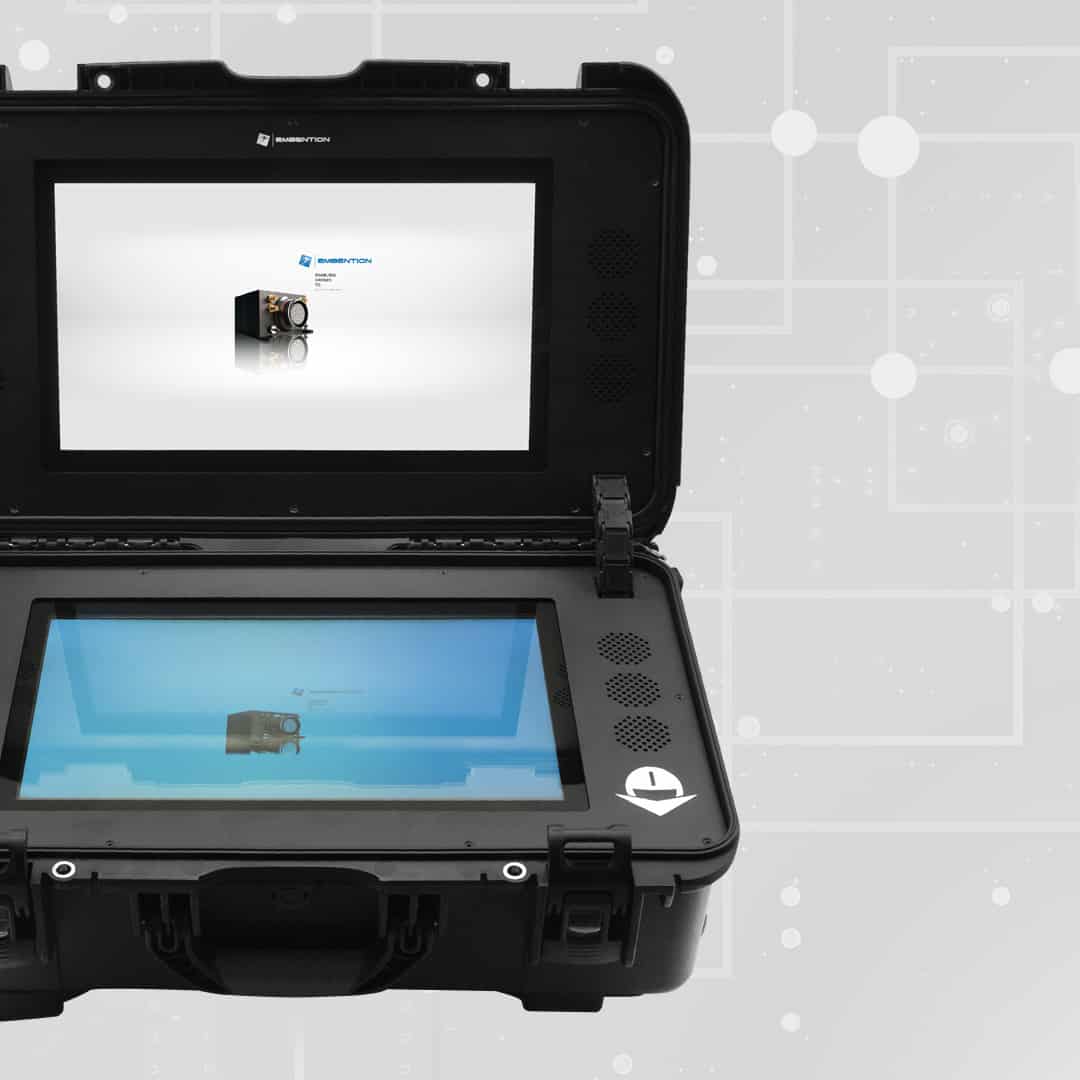

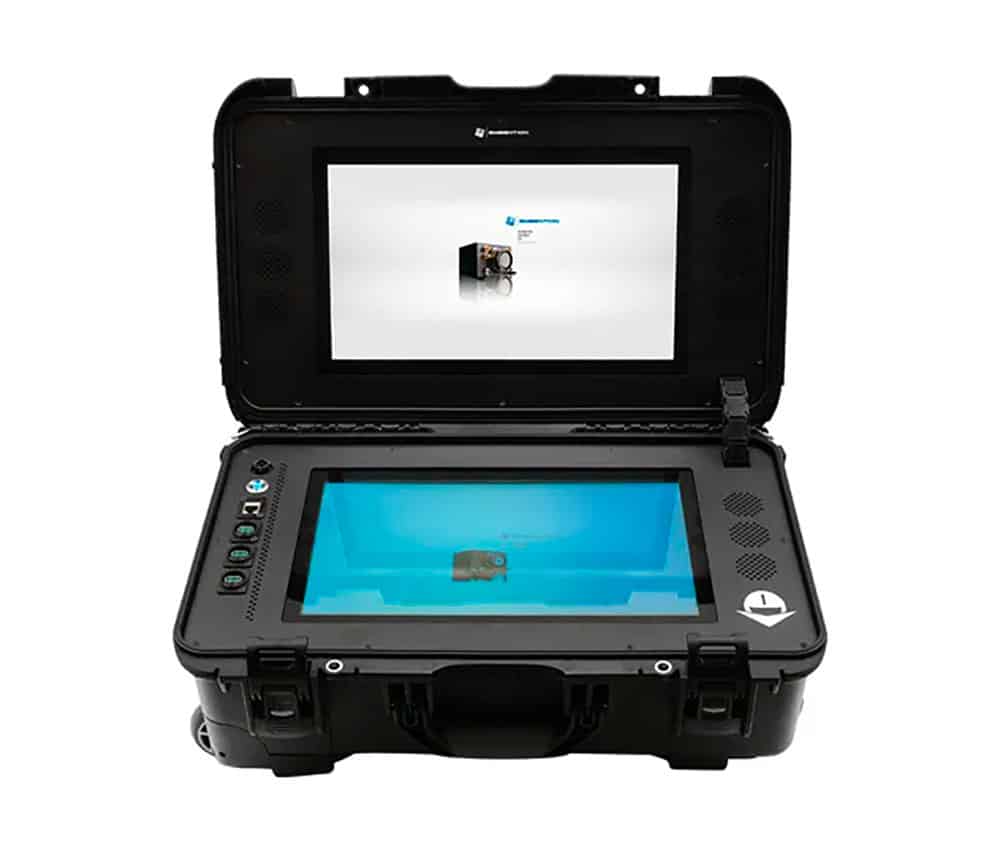

The MCS is a rugged dual-screen laptop-based GCS for UAVs and autonomous vehicles equipped with Veronte autopilots. The high-brightness anti-glare screens allow operators to work even in extreme sunlit conditions.

Enclosed in a wheeled IP67-rated rugged case, the MCS features a powerful and silent cooling system for operation in high temperatures.

Powered by a Windows- or Linux-based embedded PC, the versatile system can be customized to allow functions and video feed to be placed anywhere on the displays, and also allows users to install custom applications.

Dimensions 560x356x229 mm (closed) / 560x516x355 mm (open)
Weight 21 kg
Battery Life 4 hours
Power Input 24 VDC, 11.5 A
Display 15.4” touchscreen, 1080p
