Secure Wireless UAV/Drone Data Links for BVLOS Communications
Halo Cellular connectivity solution for BVLOS drones & unmanned systems
Halo

Cellular connectivity solution for BVLOS drones & unmanned systems

Visit Website Contact
Saved
Save
Halo

Halo is a state-of-the-art connectivity solution for UAVs and unmanned systems, leveraging powerful cellular bonding and multiple datalinks to provide low-latency high-bandwidth transmission from anywhere to anywhere.

The carrier-agnostic system can accept up to four SIM cards from multiple network providers, and can aggregate these datalinks together into a single secure network tunnel, maximizing the available bandwidth for transmission of large quantities of data. The multiple cellular links can also be used to provide critical redundancy for safety-critical applications, detecting connection issues and seamlessly switching to a backup link to ensure continuous uptime.

Drones and autonomous vehicles equipped with Halo can send and receive data via secure VPN tunnelling to Elsight’s Cloud platform or an on-premise server. Halo can also provide P2P connectivity that takes advantage of low-latency, low-cost RF links when in proximity, and switches to cellular bonding to establish a BVLOS data link.

Halo is available in two low-SWaP form factors - an OEM card that can be easily integrated into a wide variety of drones and vehicles, and a standalone enclosed version that is ideal for ground control stations and command centers.

Specifications

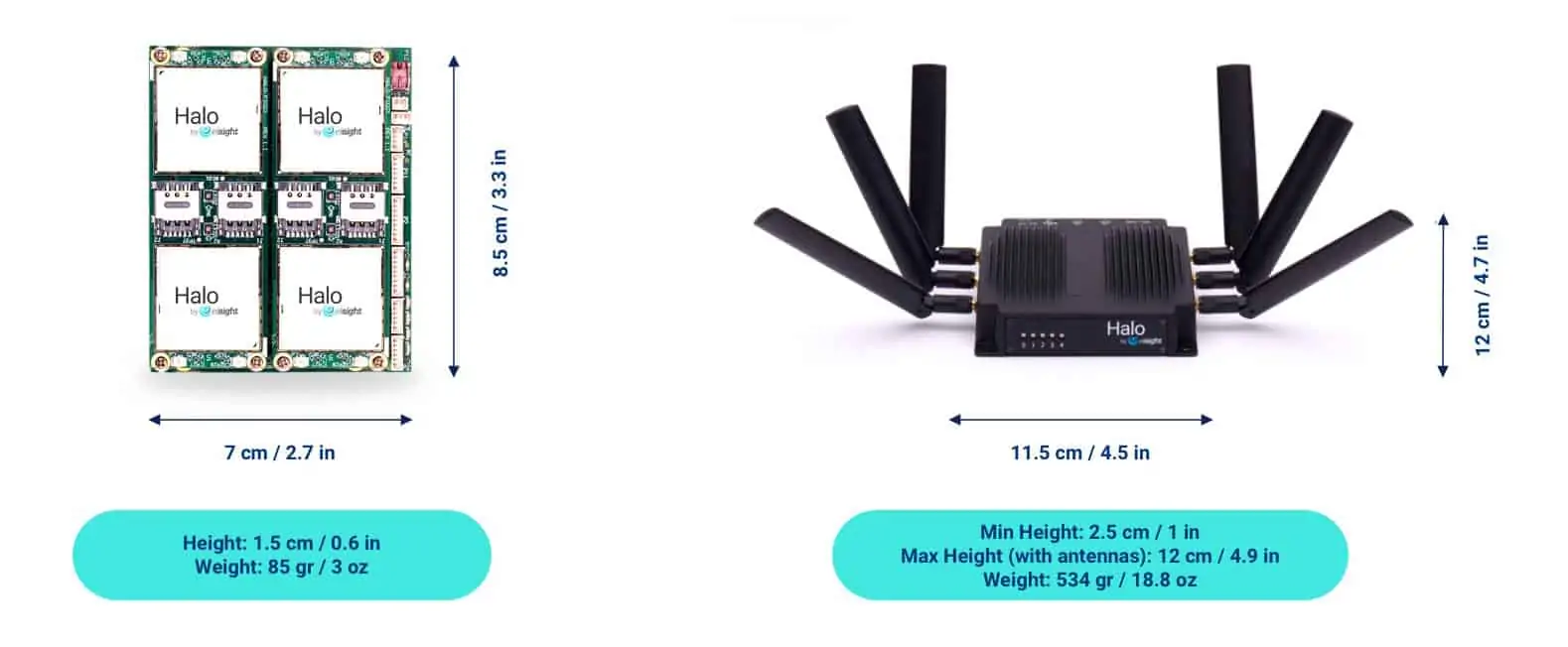

Halo is available in two convenient form factors – an OEM module for easy integration into any platform, and a standalone connectivity solution.

Beyond line of sight (BLOS) communication



Size (W x D x H) OEM 86 x 69 x 14 mm (3.39 x 2.72 x 0.55") Standalone 120 x 119 x 40 mm (4.72 x 4.68 x 1.57”)
Weight OEM 85 g (3 oz.) Standalone 534 g (1.1 lbs.)
Power Input 9 – 30 VDC
Power Consumption 2 Cellular modules: 4.5W (avg), 7W (Max) 4 Cellular modules: 6.5W (avg), 10W (Max)
I/O Ports 2 X Gigabit Ethernet 1 X USB 2.0 1 X MicroUSB (internal debug) 2 X RS232/422/485 1 X CANbus
Wifi Dual Band Wi-Fi (2.4 / 5GHz) 802.11 a/b/g/n/ac WAN/AP modes
Cellular 4/2 Embedded 4G LTE/3G (bands depend on region)
SIM cards 4/2 X Nano Sim slots
