ElevonX is a leading provider of professional hybrid fixed-wing vertical take-off and landing (VTOL) UAVs (unmanned aerial vehicles) and equipment.
Our versatile fixed-wing drone platforms, constructed from high-end materials and with high-precision manufacturing, provide superior capabilities for a wide range of applications.
With extensive experience in UAV design and flight testing, we can also offer custom unmanned aircraft development and payload integration to suit your unique requirements.

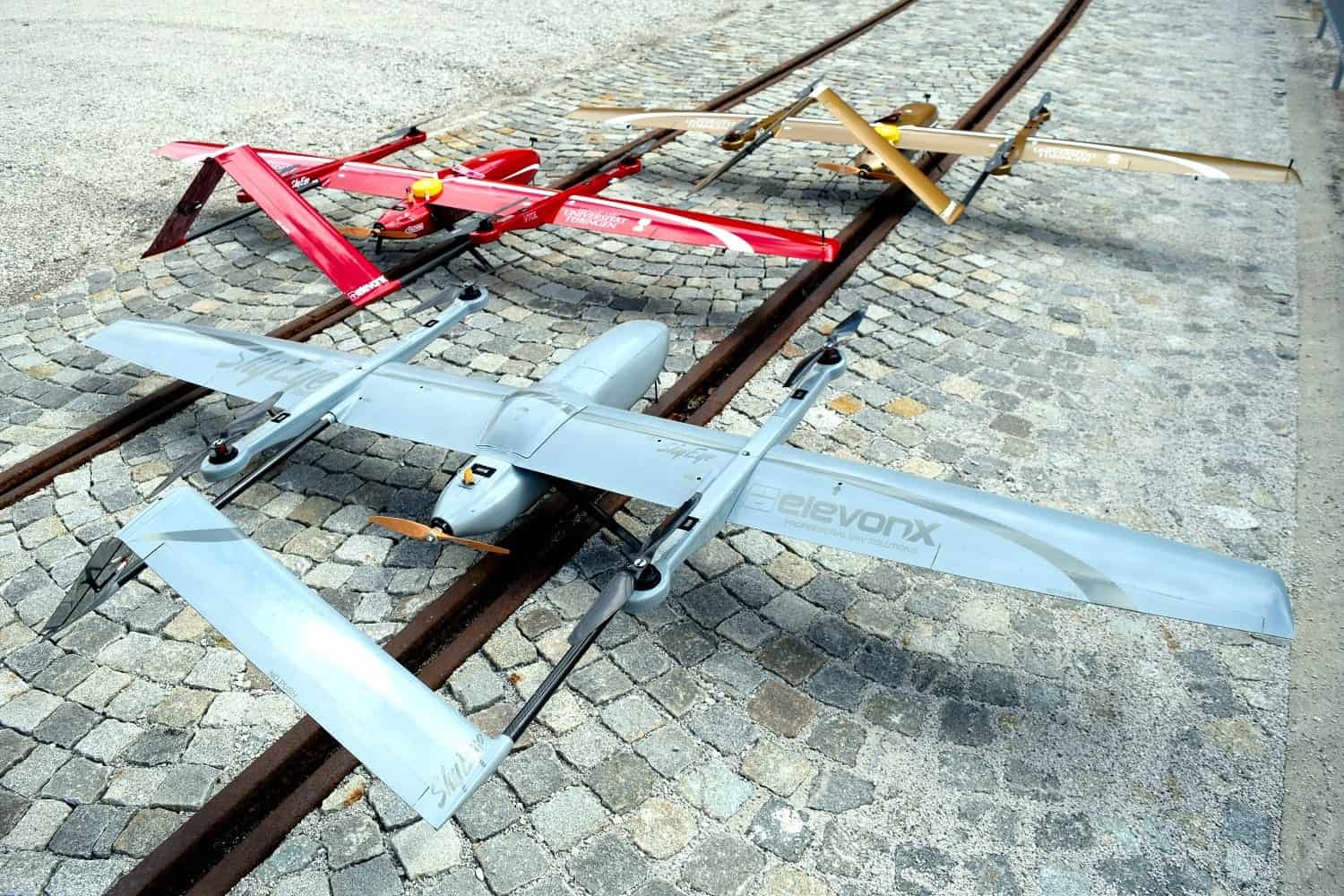

Fixed Wing Hybrid VTOL UAVs

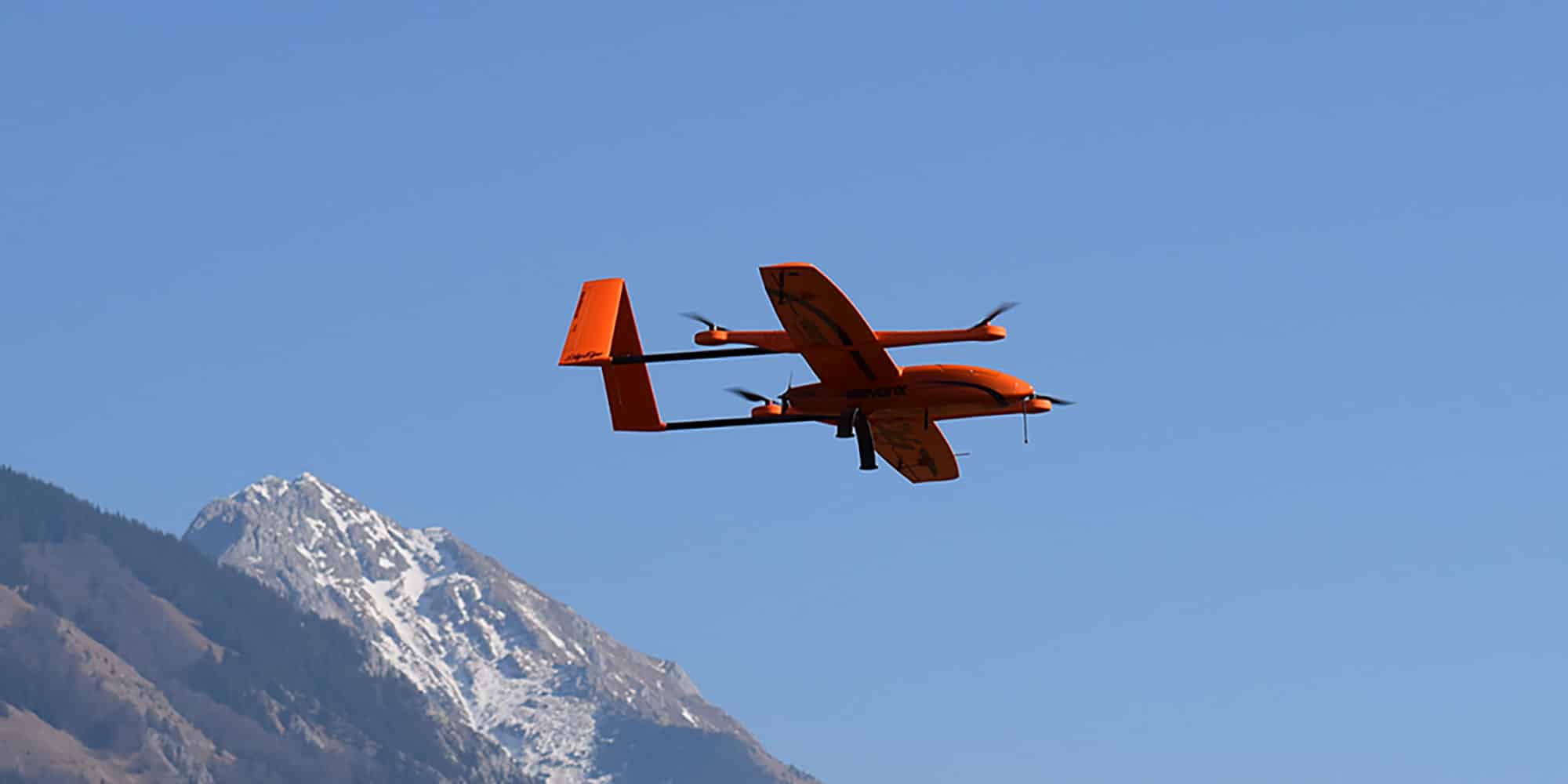

SkyEye Sierra VTOL
Fixed-wing electric VTOL UAV for long-endurance operations

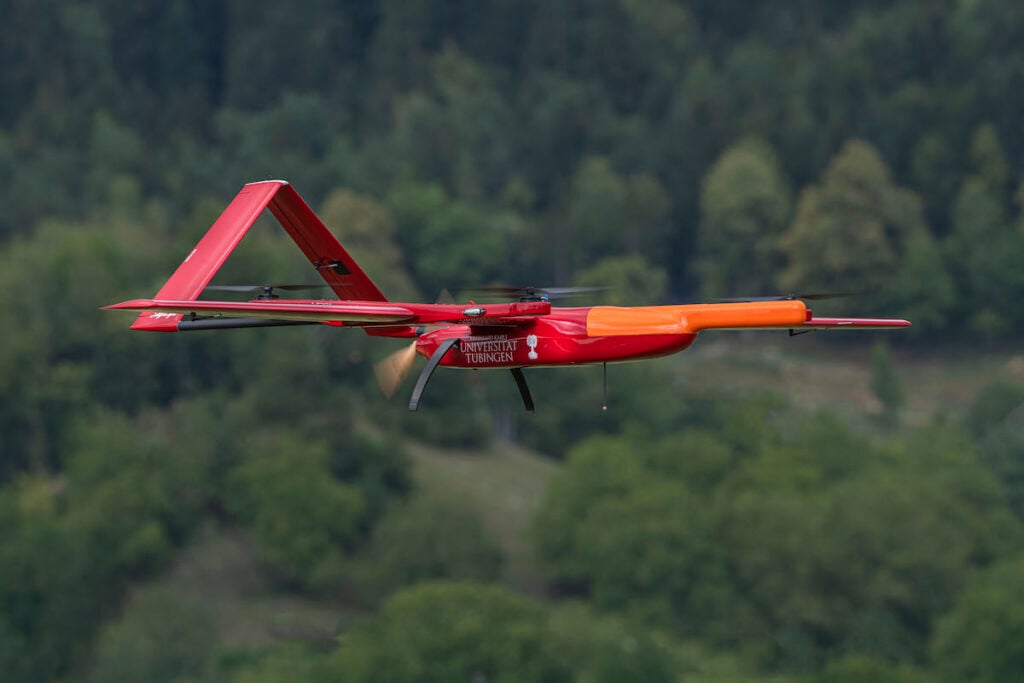

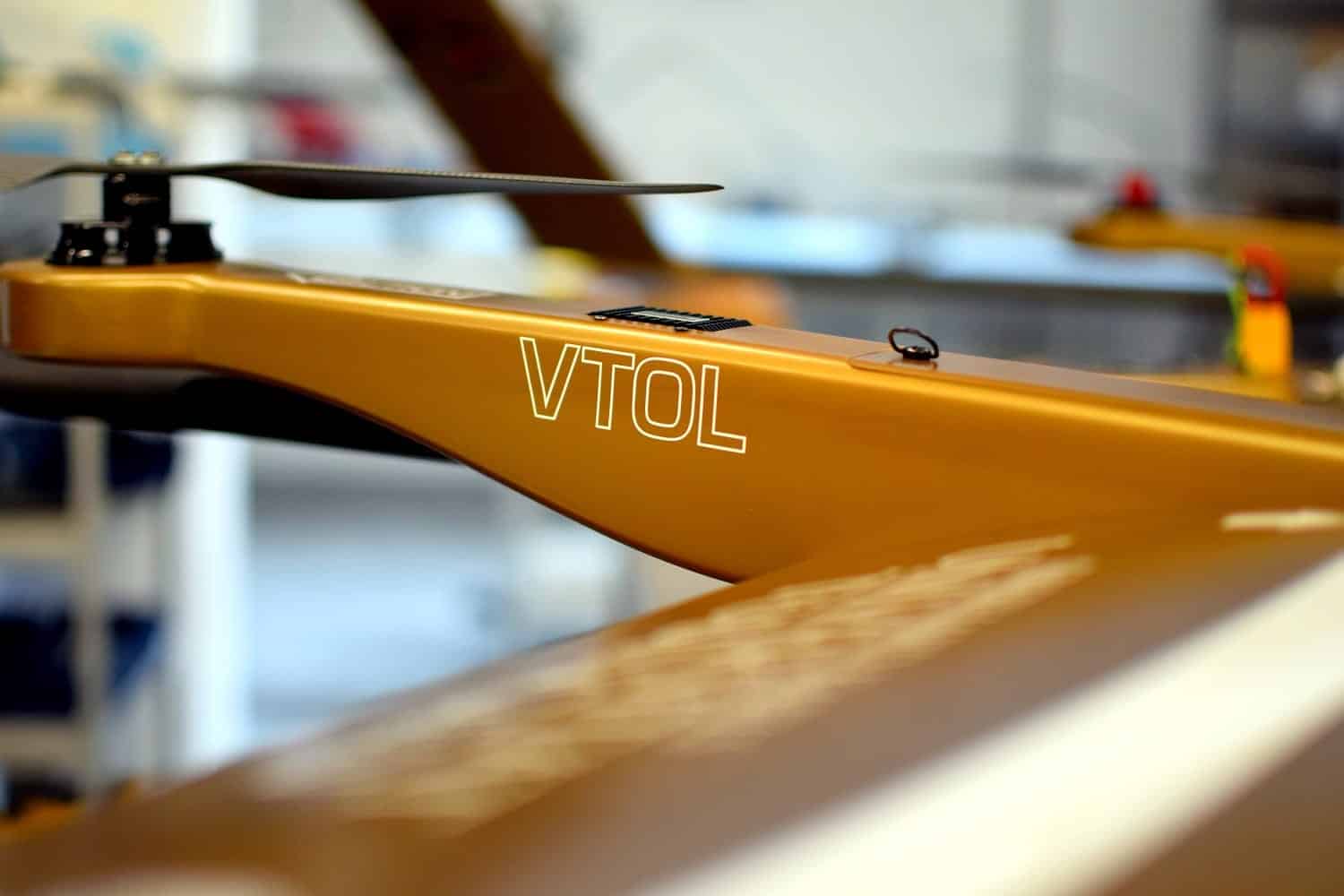

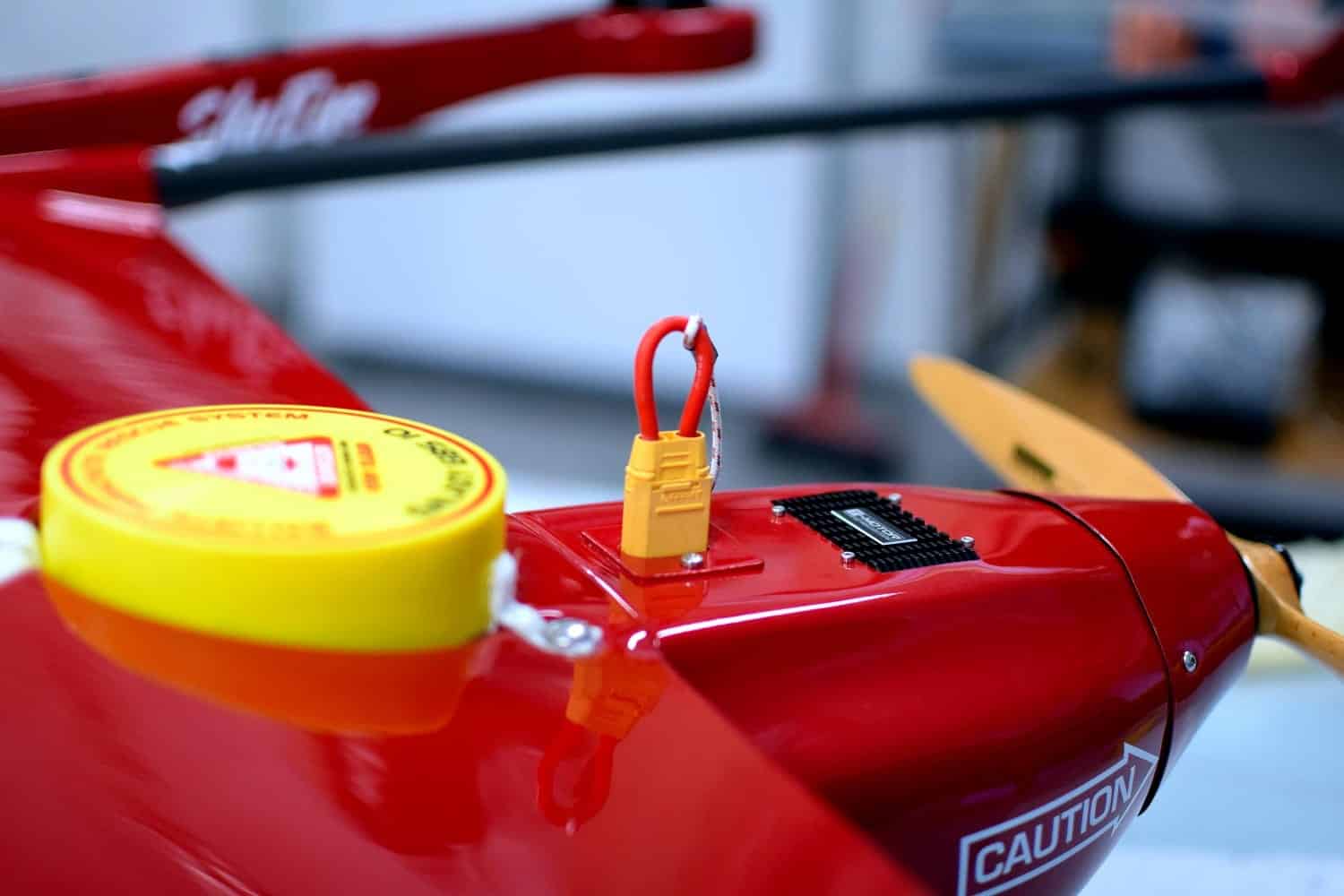

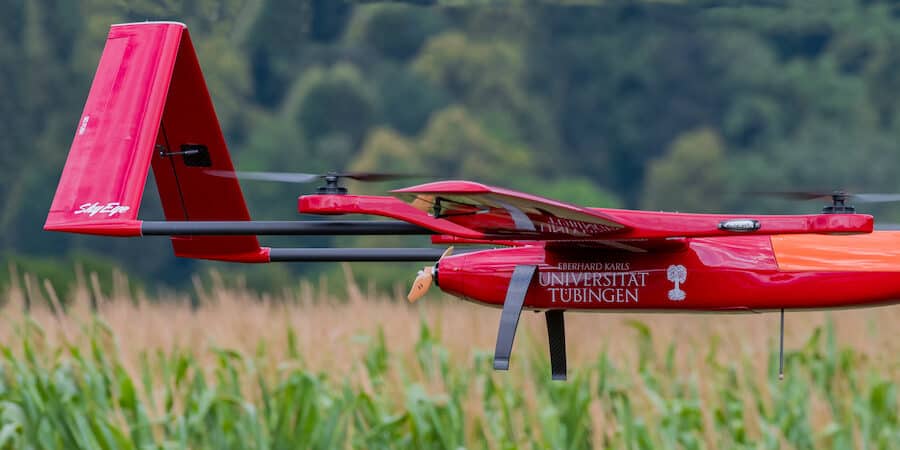

The SkyEye Sierra VTOL is a multipurpose vertical take-off and landing fixed-wing UAV that can be operated from only a very small footprint. The versatile, quiet drone platform features fully electric power as standard, and can be optionally upgraded to a petrol engine.
Capable of carrying up to 3kg of payload, the long-endurance VTOL UAV can stay in the air for up to 3 hours when electrically powered or up to 5 hours with a petrol engine, with an operational range of up to 320 km.
The system has been designed with motors that feature dust- and waterproofing for reliable operation in harsh environments, as well as a special pesticide-resistant covering for precision agriculture applications. It features a variety of safety systems and redundancies to provide the safest possible operation.
Specifications:
3 hrs (electric)
5 hrs (petrol)
______
Endurance
320 km
______
Operational Range
3 kg
______
Max Payload Weight
Dimensions
310 x 152 cm
Weight
12.5 kg
Cruising Airspeed
18 m/s (65 km/h)
Max Airspeed
30 m/s (110 km/h)
Communications Range
20+ km LOS
Operational Footprint
10 x 10 m

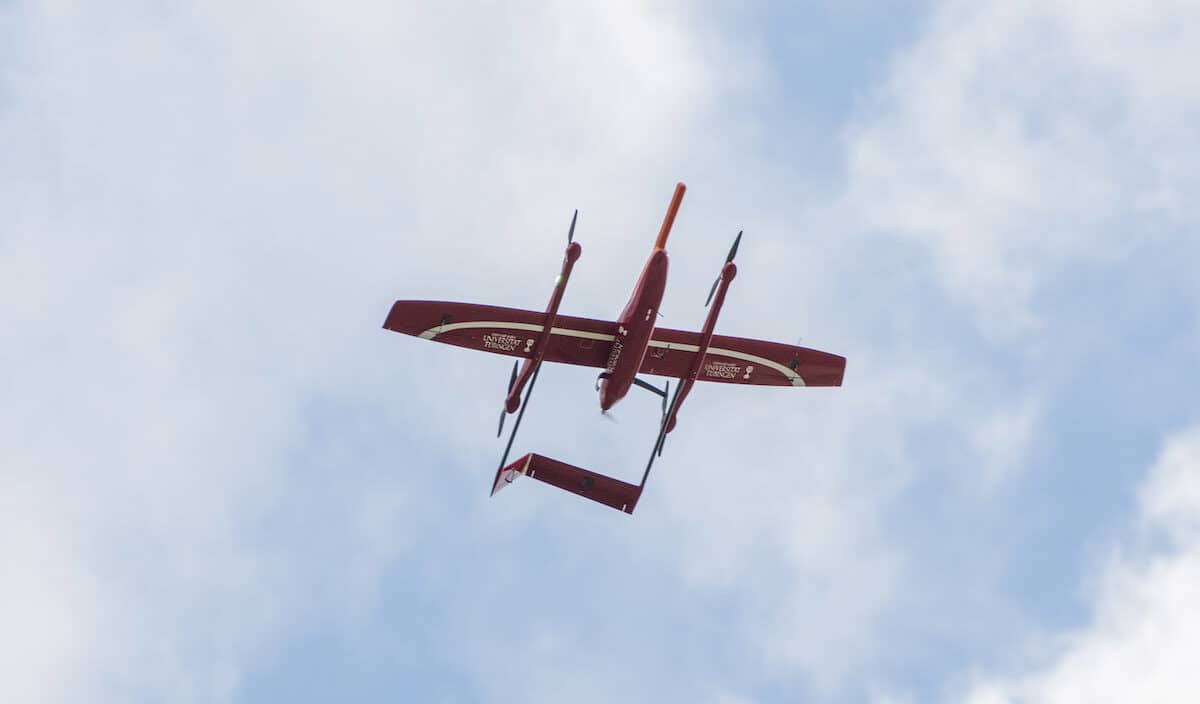

The SkyEye Sierra VTOL drone can be easily modified to provide custom solutions to your unique requirements – please get in touch to see how we can help.

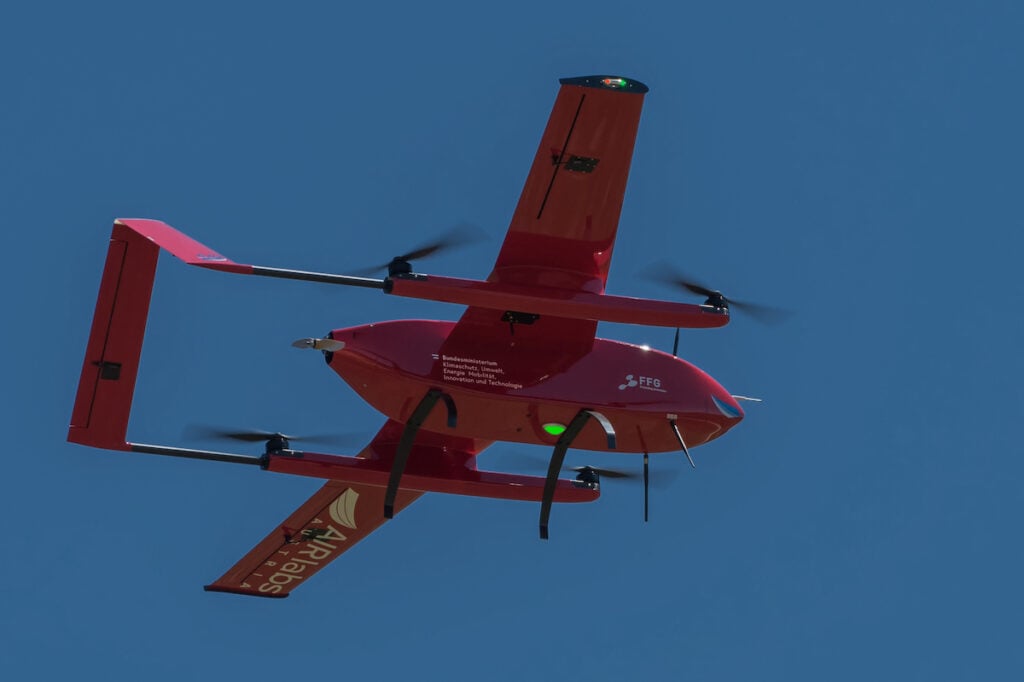

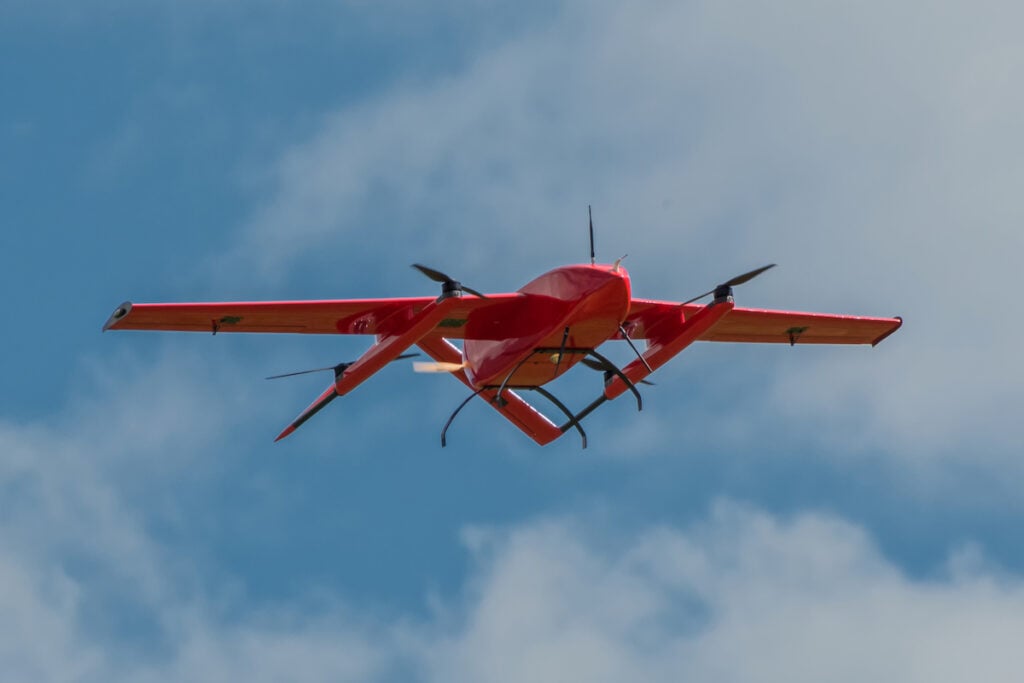

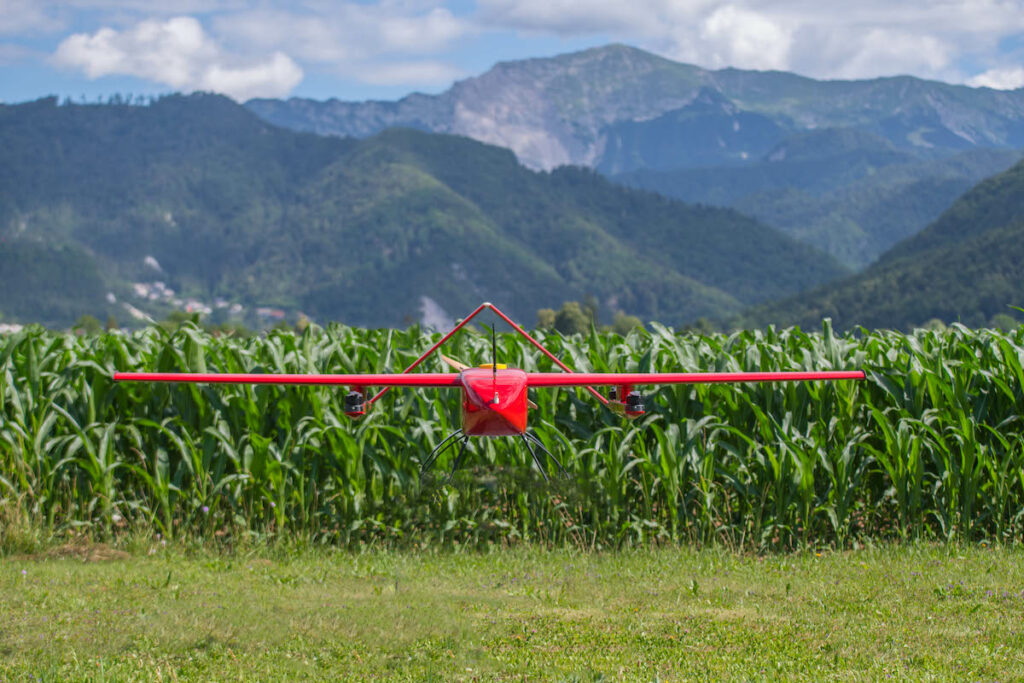

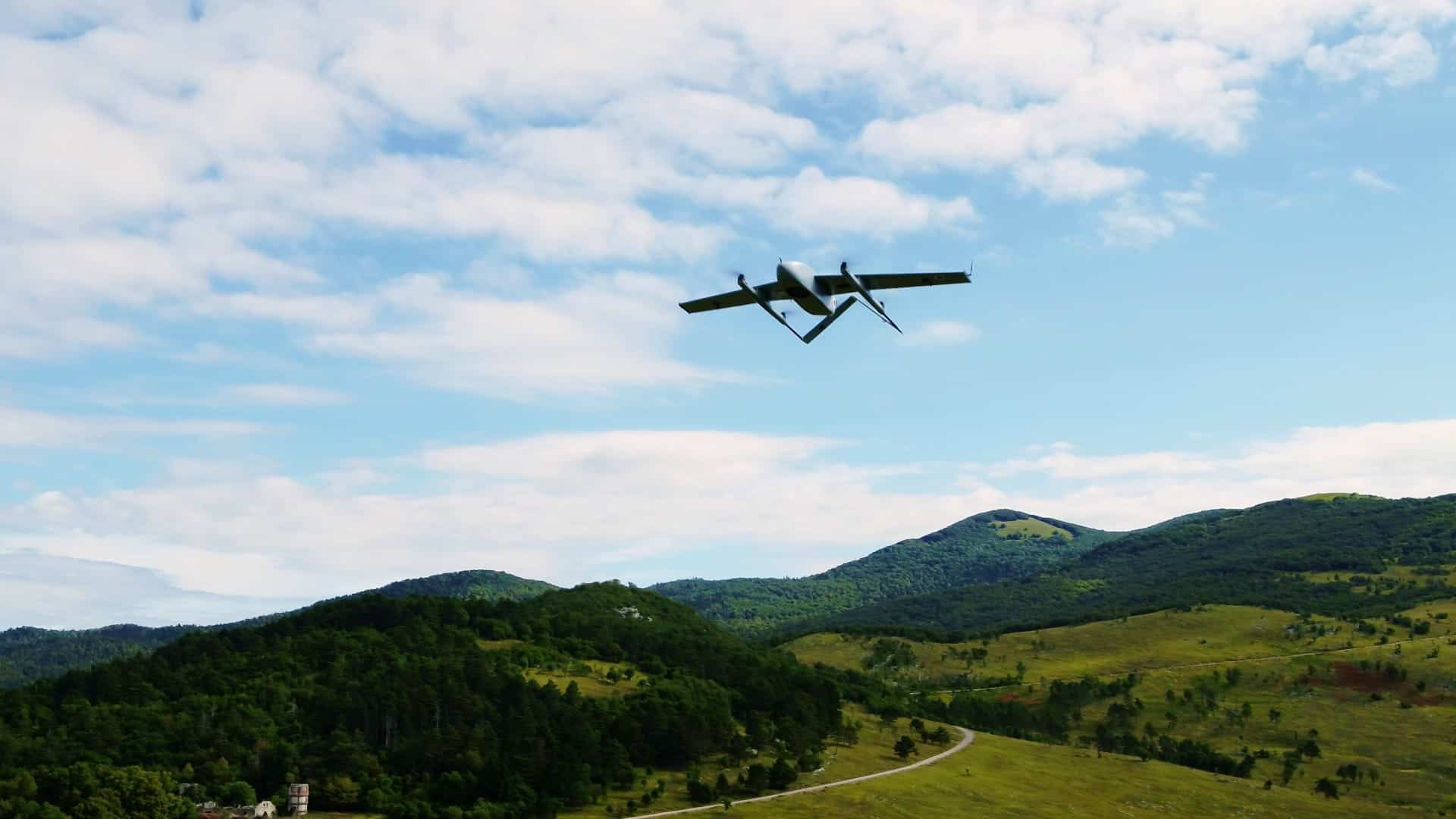

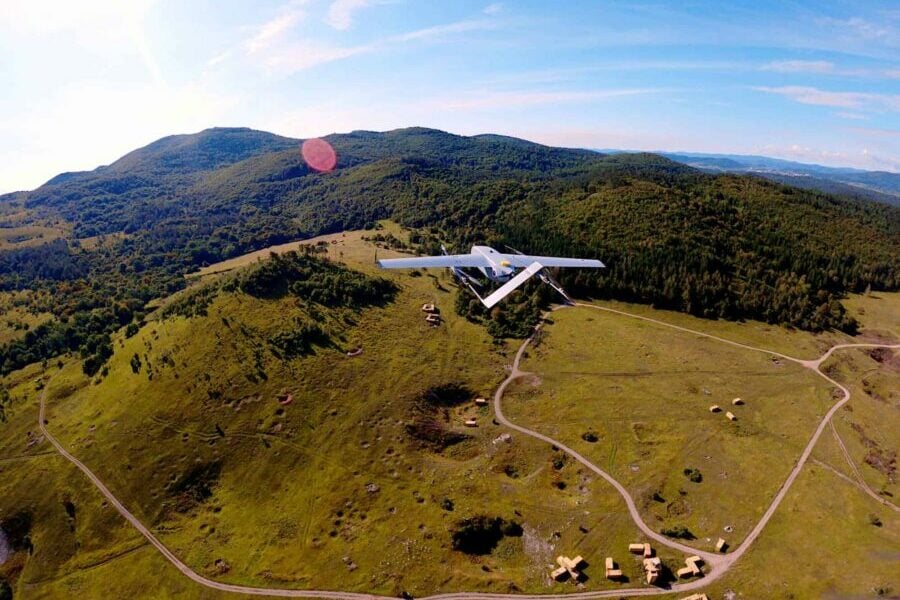

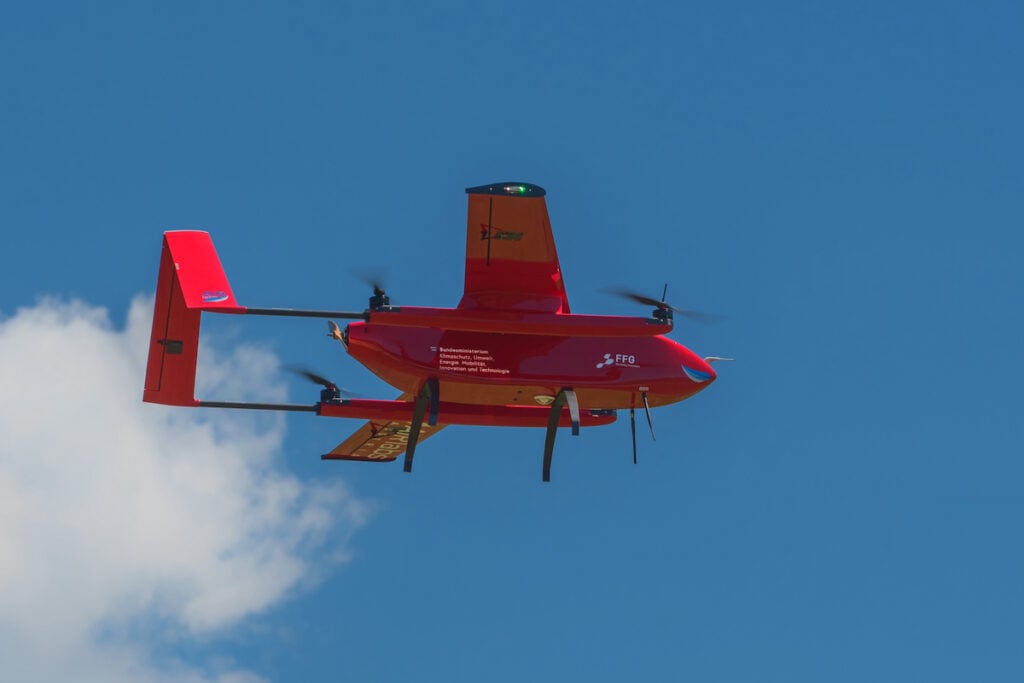

Tango is a fixed-wing VTOL UAV that can be equipped with fully electric power or a hybrid gasoline-electric propulsion system. With a payload capacity of 5kg and a flight endurance of up to 6 hours, the versatile platform is ideal for long-range tactical, military and surveillance applications, as well as search and rescue and scientific research.
The platform can be adapted to land on water, giving operators greater flexibility when conducting maritime or water-based missions.
Specifications:
2.5 hrs (electric)
6 hrs (petrol)
______
Endurance
420 km
______
Operational Range
5 kg
______
Max Payload Weight
Dimensions
300 x 190 cm
Weight
20.5 kg
Cruising Airspeed
20 m/s (72 km/h)
Max Airspeed
35 m/s (125 km/h)
Communications Range
20+ km LOS
Operational Footprint
10 x 10 m
Watch the TANGO VTOL UAV in action:
Click image to watch on YouTube
Please contact us to learn more about the TANGO VTOL UAV.
Custom VTOL UAV Solutions
Our VTOL drones can be easily modified to provide custom solutions to your unique requirements.

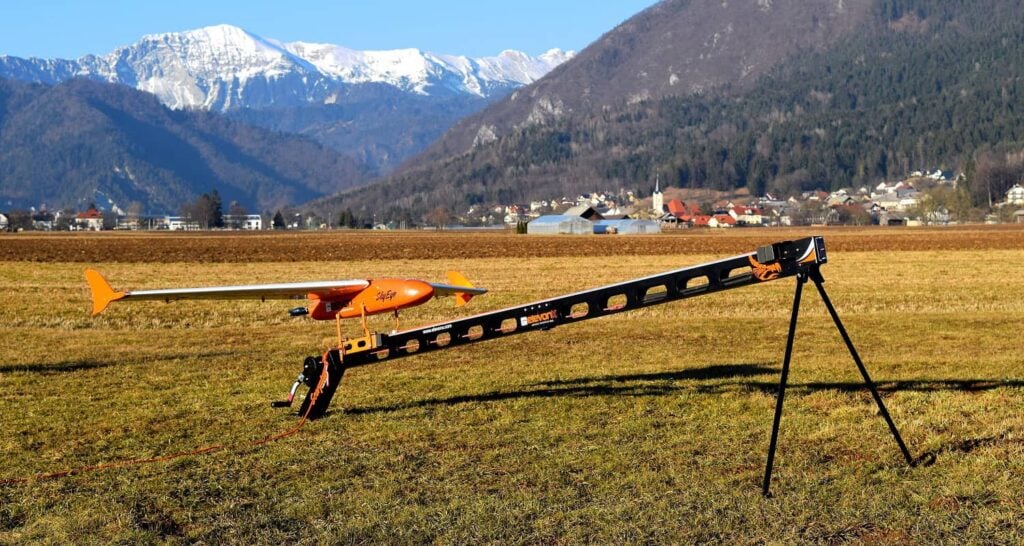

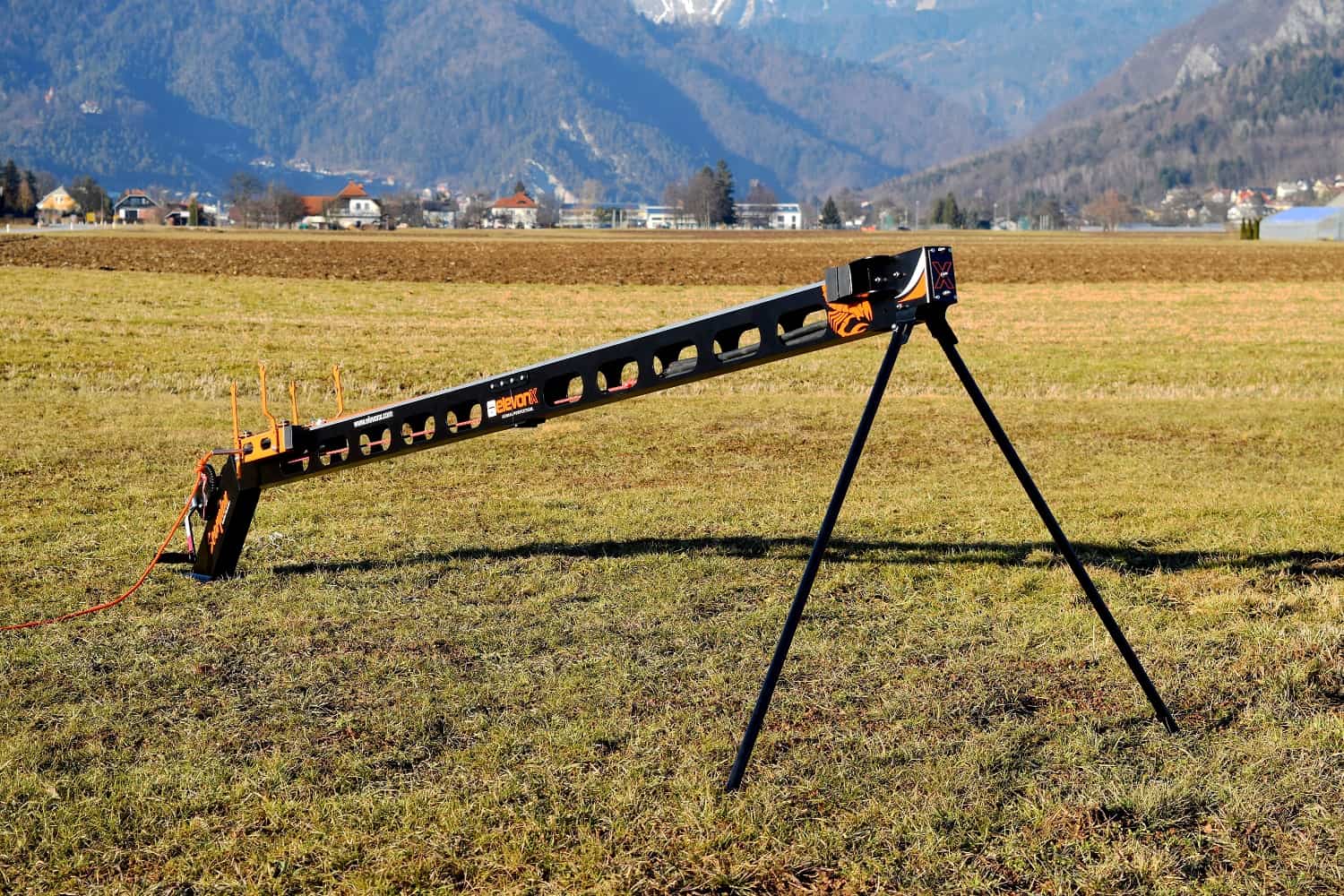

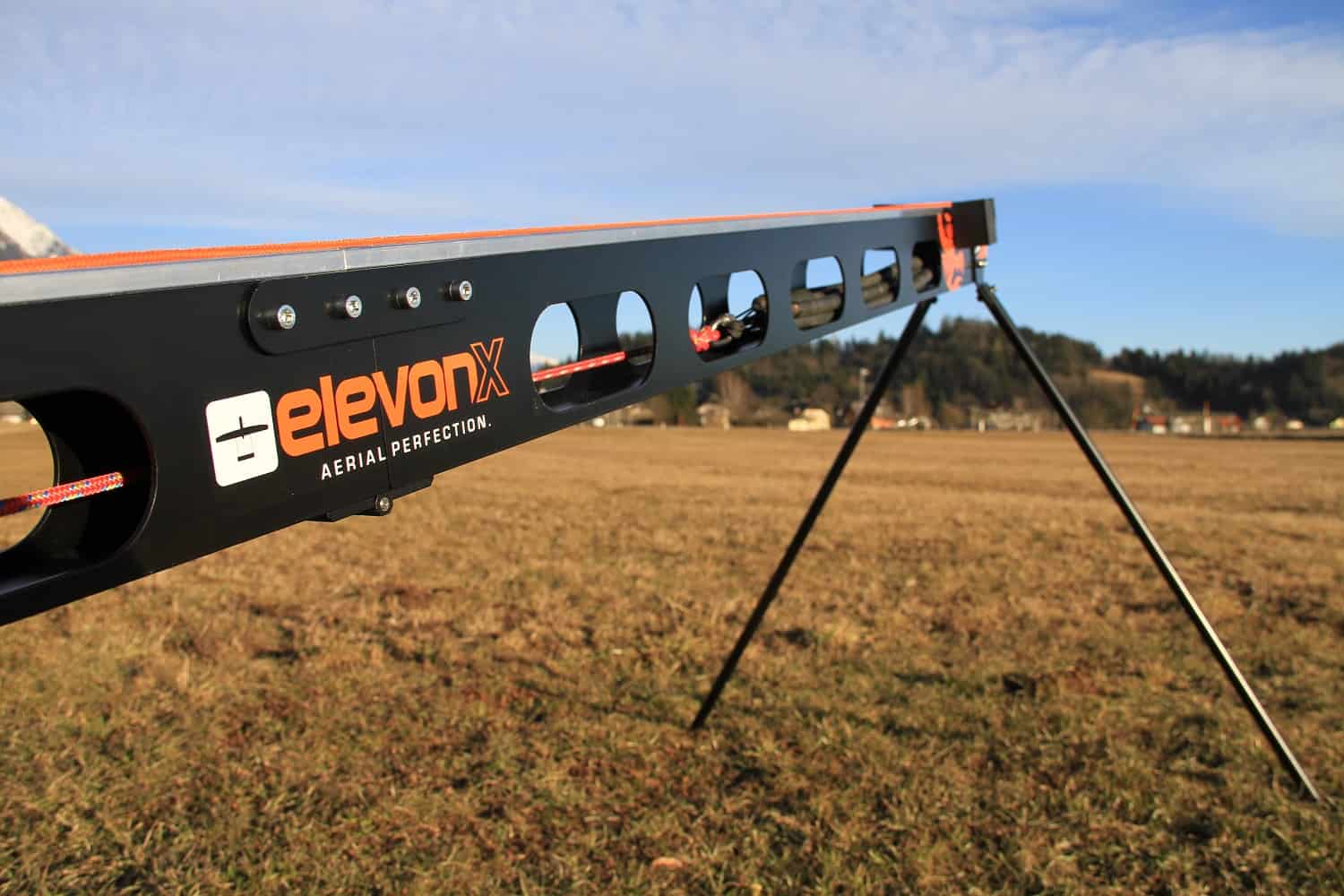

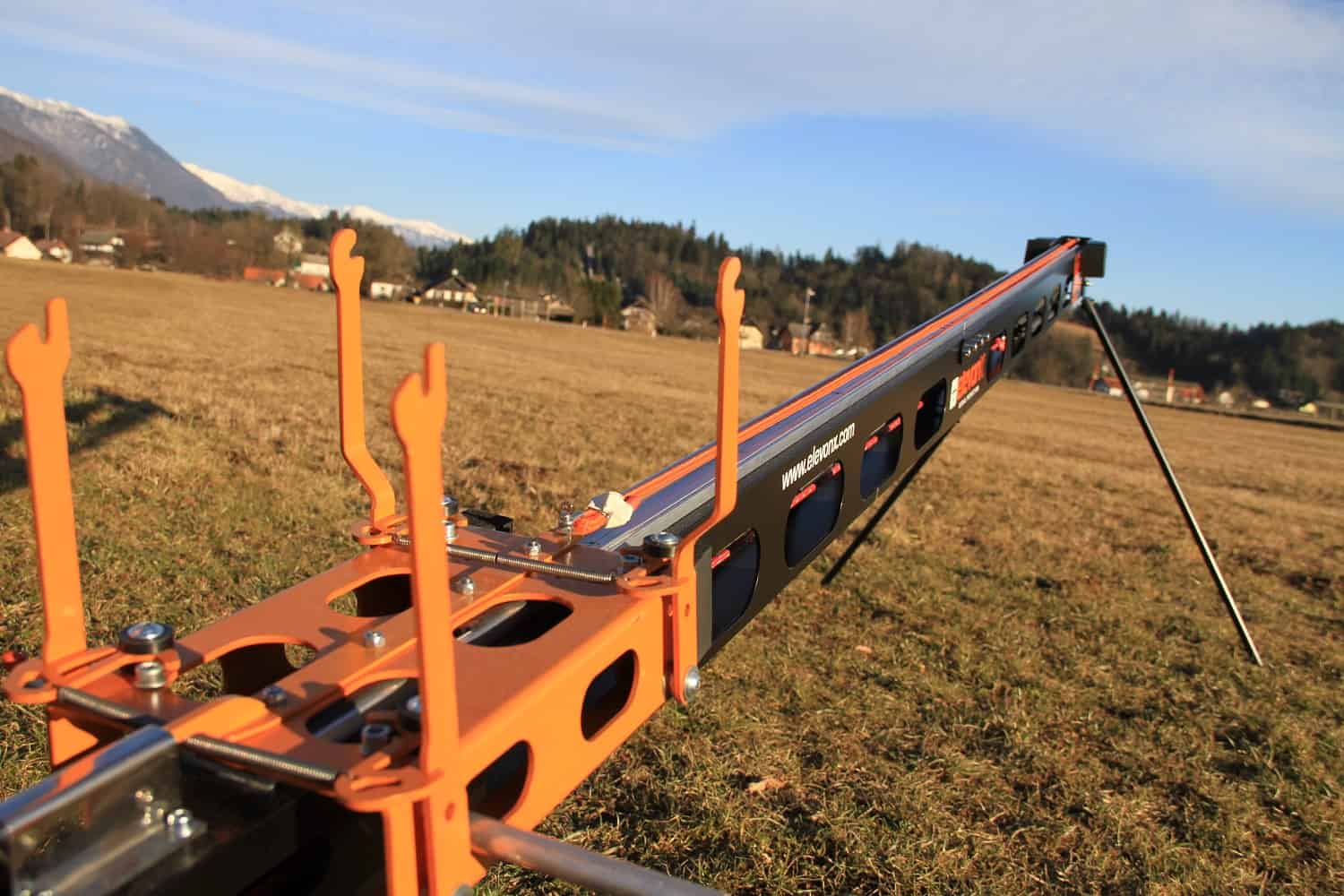

The ElevonX Scorpion is an elastic-powered UAV launcher that can be transported and set up by a single operator. Designed from the ground up with safety, durability and ease of use in mind, the catapult provides redundant safety features and can undertake hundreds of launches with only minimal maintenance. All elastic is enclosed within the launcher tube to eliminate risk to operator or equipment in case of band failure.
The system has been constructed from industrial-grade CNC-machined aluminium and stainless-steel components, with a marine-grade pulley system as well as powder coating for increased protection. The carriage and foldable arms have been designed as standard to support our SkyEye modular UAV system, but we can modify the system to support your unmanned aircraft, even providing a custom-machined adapter to connect the UAV to the carriage.

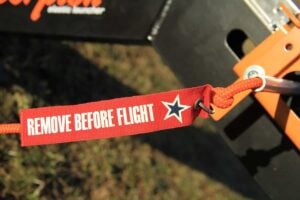

The Scorpion launcher is provided with a checklist, “remove before launch” tags and a comprehensive user guide. We can also deliver operation and maintenance training to give users all the knowledge they need to confidently operate the system.
Aerial Mapping
Our long-endurance VTOL UAVs can cover vast areas in a single flight, making them ideal for efficient high-productivity mapping and surveying applications.

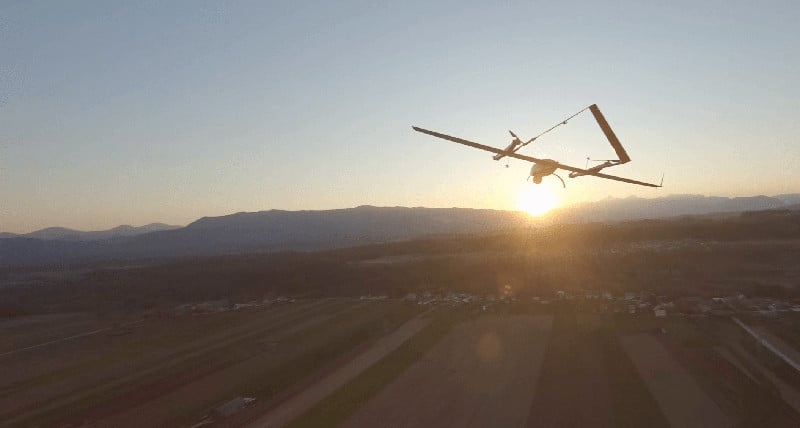

Surveillance

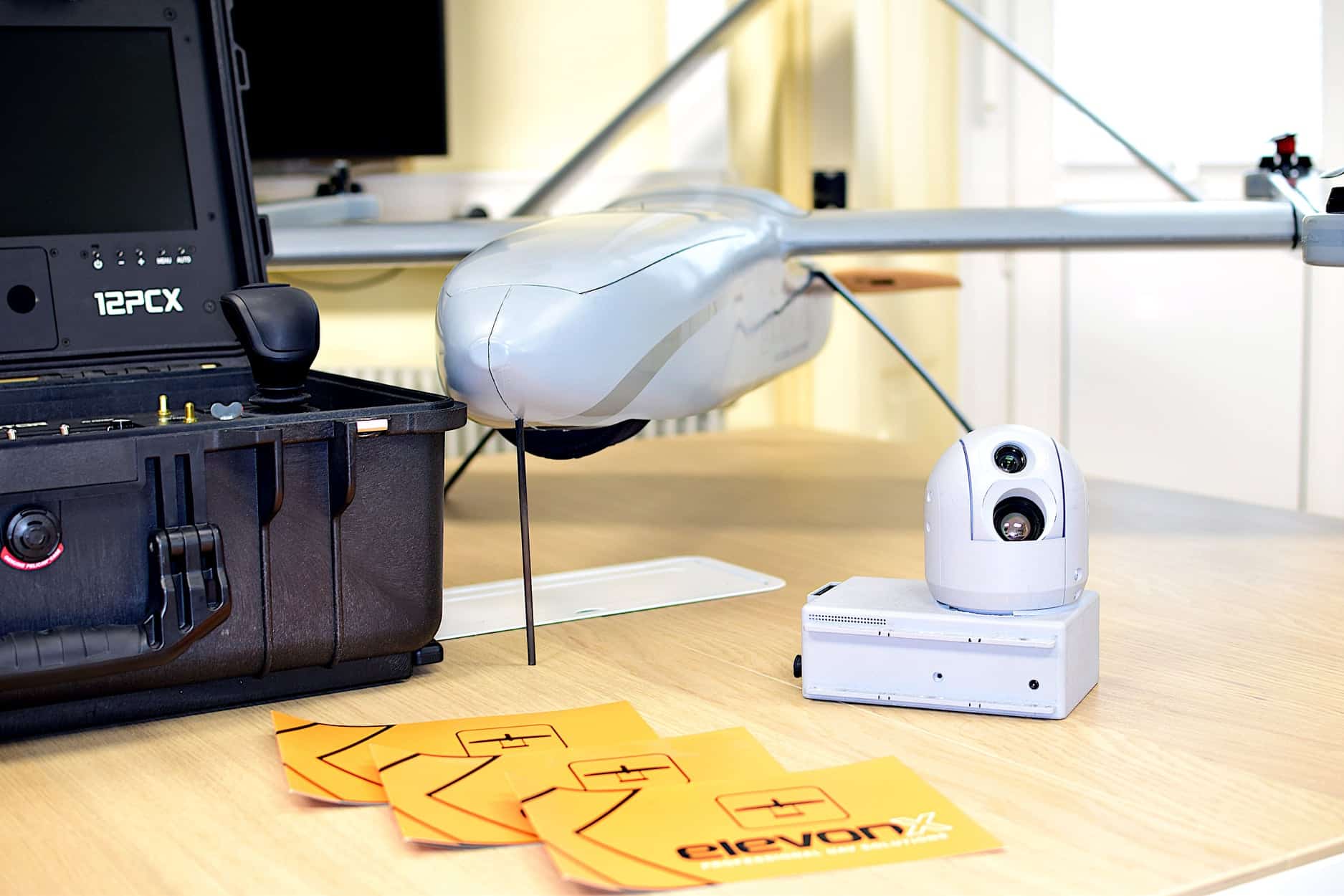

Featuring extremely quiet operation and the ability to field a variety of payloads, our electric VTOL drones can be used to provide enhanced situational awareness and a persistent eye-in the-sky for law enforcement, search and rescue, and other first responders.

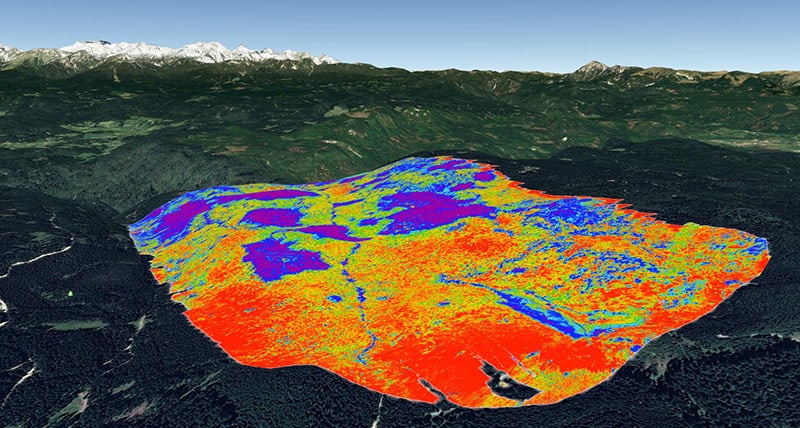

Multispectral Remote Sensing
When equipped with multispectral payloads, our fixed-wing VTOL drones can provide crucial insights into the status of crops and vegetation for applications such as precision agriculture, forestry and environmental research.
