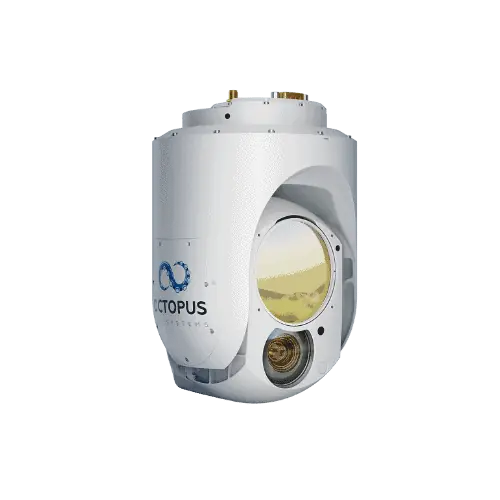

Octopus ISR E140Z G2 multiple application payload camera
The E140Z G2 is a state-of-the-art stabilized gimbal payload for UAVs, providing advanced surveillance capabilities with one global shutter EO sensor and one cooled LWIR sensor. Ruggedized to IP64, the gimbal is designed to withstand harsh operating environments.
The payload includes built-in video processing for superior image performance, with integrated target tracking, moving target indication and scene steering as well as artillery fire support. It also features a GPS/INS, high-precision geolocation and an optional laser pointer.
| Dimensions (D x H) | 140 x 189 mm (5.51 x 7.44”) |
| Weight | 1.40 kg (3.08 lbs) |
| EO Sensors | 1920 x 1080 (vFOV 37.9° - 1.3°) |
| Thermal Sensors | LWIR 640 x 512 (vFOV 30.9 – 6.7°) |
|
Max Optical Zoom: (EO camera) |
30x (@1080p) 67x (@480p) |
