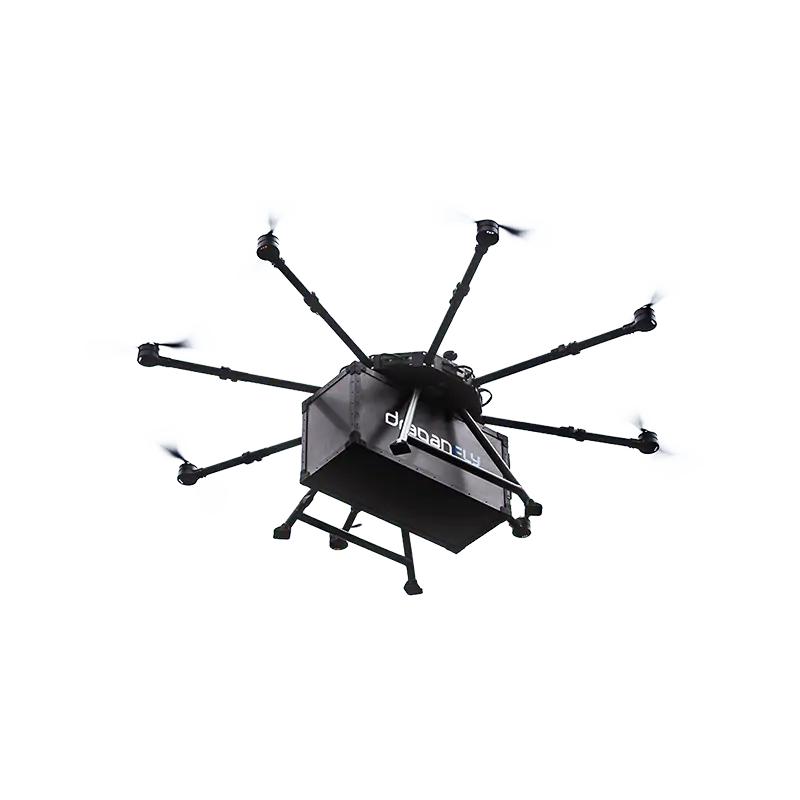

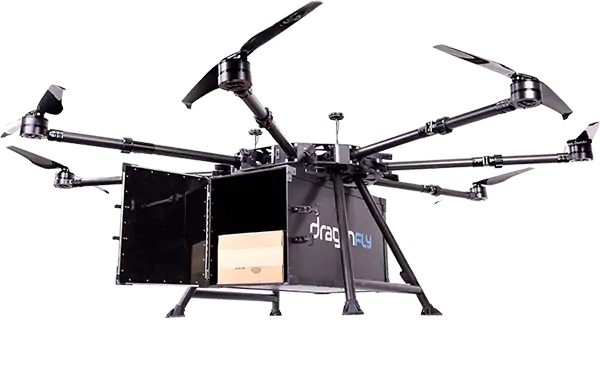

The Draganfly Heavy Lift Drone is an industrial heavy-duty platform designed to carry more and to fly further. With an endurance of up to 55 minutes and a lift capacity of 30kg (67lbs), it can be used for automated missions as well as manual flights. The system features a modular parcel delivery system that can fit objects up to 15″ x 17″ x 34″ in size, and can also be equipped to carry large payloads for wide-area survey, such as hyperspectral cameras and bathymetric LiDAR.

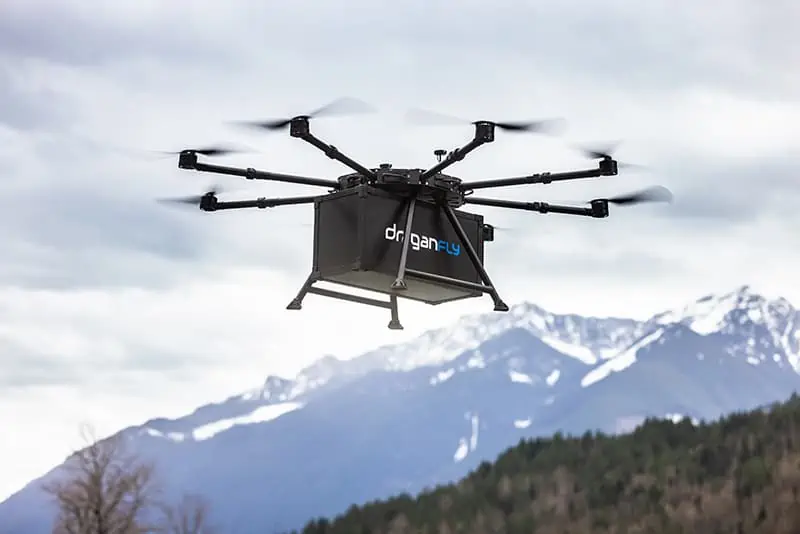

The rugged delivery drone operates in high winds and challenging weather with ease, and is capable of ranges of up to 30km (18.65 miles). The Draganfly Heavy Lift Drone can also be customized with cellular LTE-enabled autonomous navigation and advanced flight control for beyond visual line-of-sight (BVLOS) operations.
| Dimensions (D x H) |
843 x 364 mm (folded) Unfolded Diameter with Propellers 3168 mm Unfolded Diameter without Propellers 2448 mm Unfolded Height without landing gear 177 mm Unfolded Height with landing gear 770 mm |
| Max Payload Weight | 30 kg (67 lbs) |
| Aircraft Weight | 44 kg (97 lbs) |
| Max Airspeed | 22 m/s |
| Flight Times |
2kg (4.4lbs) - 54.5 min 10kg (22.04lbs) - 43.5 min 20kg (44.09lbs) - 34 min 30kg (67lbs) - 18 min |
| Max Range | 20 km |
