nano-OEM Mesh Rider Radio For the smallest robotic systems. The smallest, lowest-SWaP, high-performance mesh radio available.
Doodle Labs / products / nano-OEM Mesh Rider Radio
nano-OEM Mesh Rider Radio

For the smallest robotic systems. The smallest, lowest-SWaP, high-performance mesh radio available.

Visit Website Send Message
Saved
Save

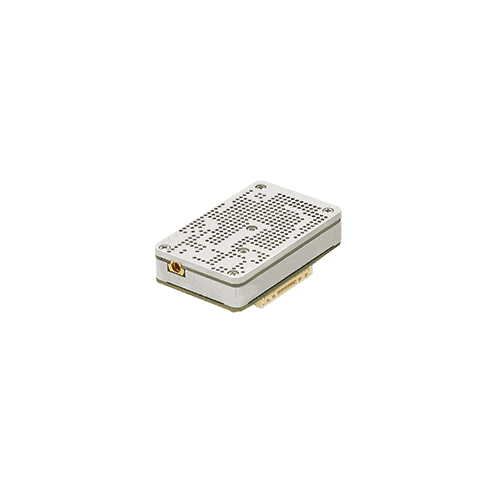

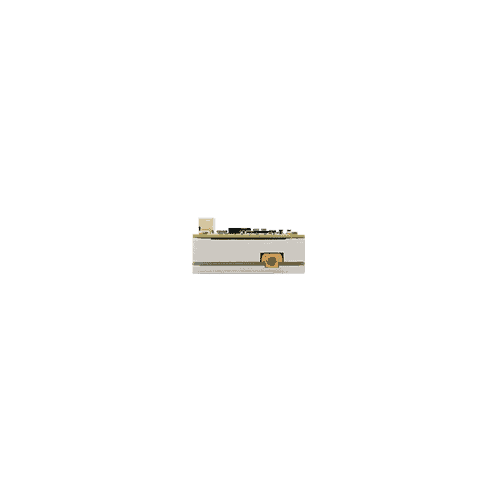

nano-OEM Mesh Rider Radio What makes the nano-OEM Smart Radio unique?

The smallest Mesh Rider Radio in the series and the lowest-SWaP, high-performance mesh radio available. It’s designed to provide reliable datalinks for even the smallest robotic systems. The nano-OEM is available in Helix, M1-M6 (1625 -2500 MHz) for the Blue UAS program.

At a glance
  • Max Throughput: 80 Mbps
  • Range: 80 kilometers
  • Dimensions: 28 x 47 x 11.5 mm
  • Weight: 12 grams
  • Encryption: FIPS 140-3 Level 1 Compliant
  • NDAA Compliant
  • Helix Smart Radio J/F-12 #13258
Key features
Designed for
Product Specifications
Product Line: nano-OEM Mesh Rider Radio
Frequency: 902-928 + 2400-2482 MHz (Dual-band ISM), 1350-2510 MHz (L, M2-M6), 1625-2510 MHz (M1-M6 Federal Band), 2400-2482 MHz (WiFi)
Type of System: AMR, Drone/UAV, Mobile Robotics, UGV
