900 MHz Smart Radio

The 900 MHz ISM Band is license-free in many parts of the world, including USA, Canada, Australia, New Zealand and 23 countries in the Americas. The 900 MHz band can be used for any commercial IoT application, making it a viable alternative to the more crowded 2.4 GHz band. On this frequency, our Smart Radio can provide an ideal solution for:

  • Industrial, Logistics, Warehouse Equipment and Unmanned Systems
  • Long Range data links for Unmanned Aerial Vehicles (UAVs) / drones operating in remote and challenging environments
  • Mesh communications for Unmanned Ground Vehicles (UGVs) and Robots in extreme environments like tunnels and mines
Order Samples

The 900 MHz Smart Radio is available in 2 different categories Pro and Xtreme. Samples are available to order from our online distributors. We also list Evaluation Kits to facilitate bench testing.

Summary of Technical Specifications (RM-915)

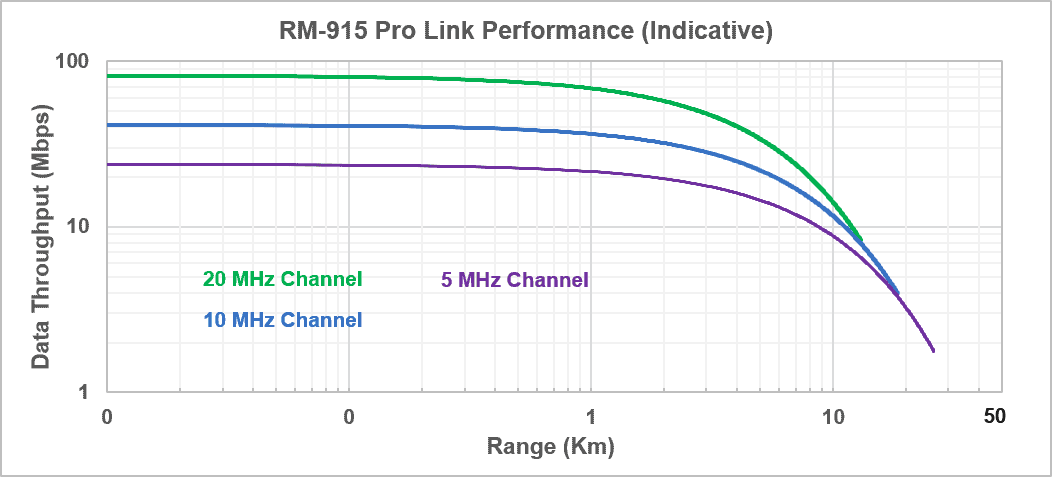

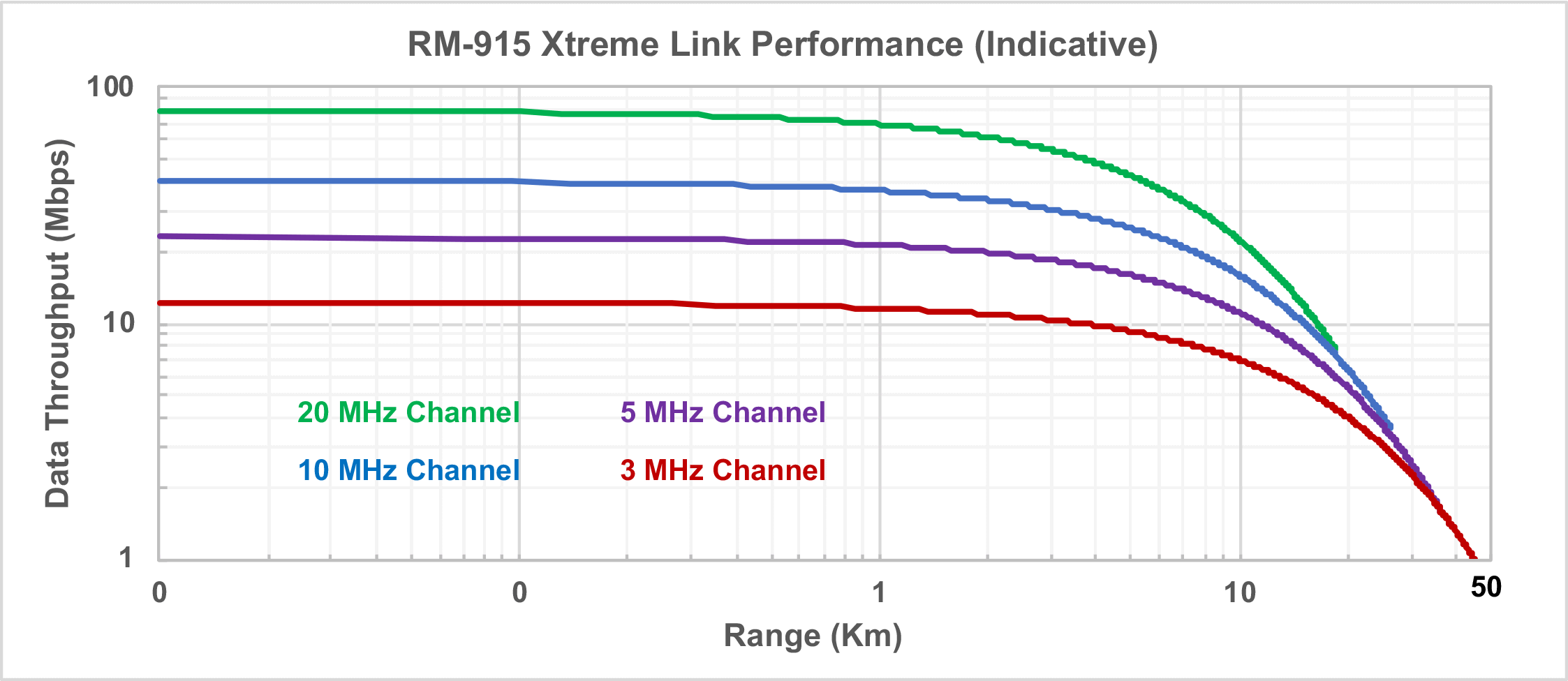

Remote Antenna = 3 dBi, Control Station Antenna = 6 dBi, Fade Margin = 10 dBm, Fresnel Zone 60% Clearance

MODEL CATEGORY Pro Xtreme
Ordering Codes RM-915-2H-PS (Embedded, Serial port) RM-915-2H-PU (Embedded, USB Host port) RM-915-2J-PM (Embedded, Serial and USB-Host ports) RM-915-2J-P(External, Serial and USB-Host ports) RM-915-2H-XS (Embedded, Serial port) RM-915-2H-XU (Embedded, USB Host port) RM-915-2J-XM (Embedded, Serial and USB-Host ports) RM-915-2J-X(External, Serial and USB-Host ports)
Model Options Integrated GPS – add G suffix PoE (External only) – add O suffix
Evaluation Kit EK-915-2J (Antennas, Cables and I/O ports to facilitate quick bench testing)
Radio Configuration 2×2 MIMO
Frequency Range 902-928 MHz Channel plans available for all countries in Americas, Australia, New Zealand, and China
Channel Bandwidths (Software Select-able) 5, 10, 20 MHz 3, 5, 10, 20, 26, 40 MHz
Max Data Throughput (UDP)  60 Mbps 100 Mbps
Max Operating Range (Indicative)  Up to 10 km >20 Km (Recommended), (Max field demonstrated range >100km)
Wireless Data Encryption 128-bit AES hardware data encryption 128-bit AES hardware data encryption 256-bit AES software data encryption channel for sensitive data
Wireless Waveform Mesh Rider
NETWORKING SPECIFICATIONS
Operating Modes Mesh, AP, Client, Transparent WDS Bridge, Internet Gateway
Command & Control channel Ultra-Reliable Low Latency Channel (URLLC) for Command and Control data. Latency 3-30 ms (Typical)
Video Channel Optimized video streaming with Unicast and Multicast transmission
Mesh Automatic Transmit Power Control (M-ATPC) Intelligently adjusts the transmit output power based on signal strength. Allows the Smart Radios to be utilized in a widely dispersed and dynamic mesh.
Multicast High Rate
HARDWARE SPECIFICATIONS
Operating Voltage 5.5~42V DC
I/O Interfaces Embedded: 2x Ethernet, USB (Host) or UART, GPS External: 2x Ethernet, 2x USB (Host), UART, 2x GPIO, GPS Pocketable: WiFi, Bluetooth, USB (Host), USB (Device), Ethernet, UART, GPIO, GPS
Dimensions Embedded: 65 x 57 x 12 mm, 70 grams External: 148 x 137 x 58 mm, 540 grams Pocketable: 70 x 95 x 15 mm, 100 grams
Temperature range (Operating) -40°C to +70°C -40°C to +85°C
Ingress Protection Embedded: IP50 (dust protected, no liquids) External: IP67 (immersion up to 1 meter under water) Pocketable: IP63 (Spray falling up to 60° from vertical)
Special Features – Extended lifespan with 3 years’ planned availability – Extreme Reliability, IPC Class 2 standard with Class 3 options – Extended lifespan with 7 years’ planned availability – Extreme Reliability, IPC Class 2 standard with Class 3 options – Compliant to MIL-STD-202G for high shock/vibration environments
REGULATORY SPECIFICATIONS
FCC ID 2AG87RM-915-2H
Industry Canada 21411-RM9152H
ANATEL Compliant

* Specifications are subject to change without prior notice.
