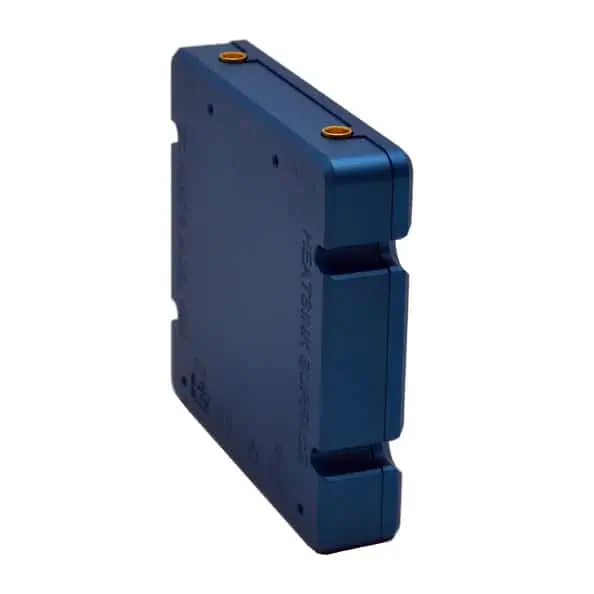

The SDR-M is a lightweight and ultra-compact software-defined IP mesh radio designed for low-SWaP UAVs and unmanned systems. Based on DTC’s advanced SOL8SDR architecture, it includes two COFDM transceivers providing 2x100mW of output power.
The radio enables the use of a wide range of IP Mesh and unidirectional COFDM waveforms, including DTC’s latest MeshUltra-X high-capacity narrowband waveform and cognitive IAS (Interference Avoidance Scheme).

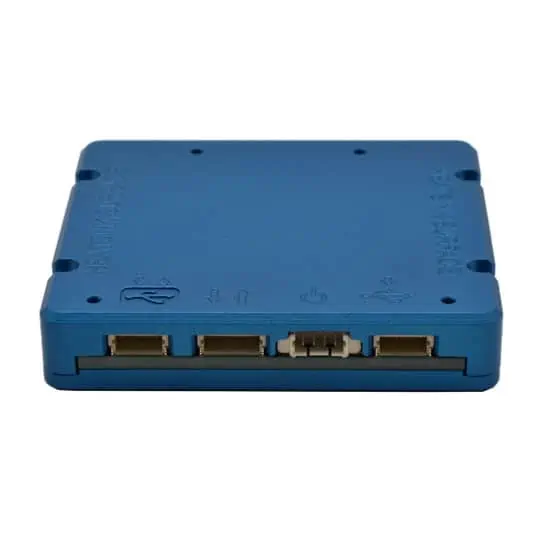

The SDR-M includes two USB interfaces and supports a wide range of peripherals including cameras, headsets and Wi-Fi, cellular and Ethernet dongles.
|1.20 – 1.70 GHz||1.67 – 2.35 GHz||2.10 – 2.50 GHz|
|Dimensions||54 x 55 x 11 mm||54 x 55 x 11 mm||54 x 50 x 11 mm|
|Power Consumption||3W typical||3W typical||3W typical|
|Tuning Step||125 kHz||125 kHz||125 kHz|
|Power Output||100mW (+20dBm) per output, 200mW total||100mW (+20dBm) per output, 200mW total||100mW (+20dBm) per output, 200mW total|
