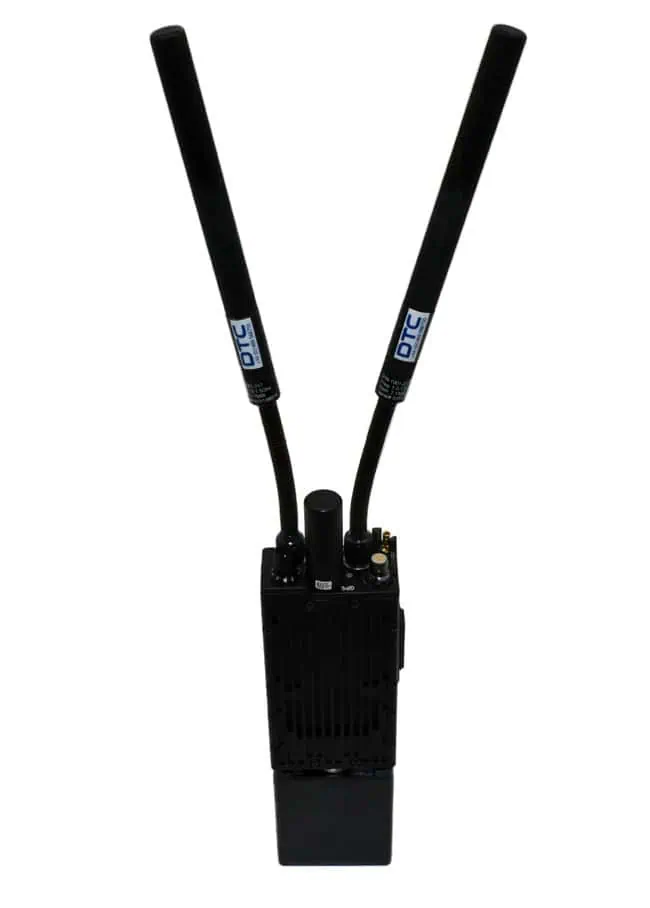

Based on DTC’s game changing software defined radio platform (SOL8SDR), the SOL8SDR-H2 is the enhanced next generation Special Role Radio designed to meet a diverse range of applications. With the same rugged body worn form factor, the SOL8SDR-H2 offers enhanced GPS performance with on-board magnetics for a simplified Ethernet interface and future support for dual push-to-talk (PTT) communications.
The versatile Special Role Radio can be operated as a mobile ad hoc network (MANET) IP Mesh node, a pointto-point (P2P) COFDM transmitter or a P2P receiver streaming video to a tablet PC. It also offers dual on-board HD-capable video encoders and support for a variety of different camera interfaces, an “open mic” full duplex audio channel and on-board SD card storage as well as 2W total output power.
Features and Benefits:
- MeshUltra™, MIMO and Standard IP Mesh capability
- Enhanced GPS performance
- On-board Ethernet magnetics
- Gigabit Ethernet via USB 2.0 adaptor
- 2W total output power
- Dual high profile HD H.264 independent video encoders
- Low latency Mesh radios – under 180ms for video; less than 20ms data only
- Optional AES128/256 encryption (accredited to FIPS140-2 for MeshUltra™ waveforms)
- Native SD/HD-SDI or composite/HDMI via adaptor
- Microphone inputs and headphone output for recording, transmission or talkback
- USB support for peripherals such as 3G/4G/Wi-Fi dongles
- Low power consumption, typically 7.5W to 10W
- Battery life – up to 12 hours
- Range NLOS – >1.5km single hop; >15km air to ground
