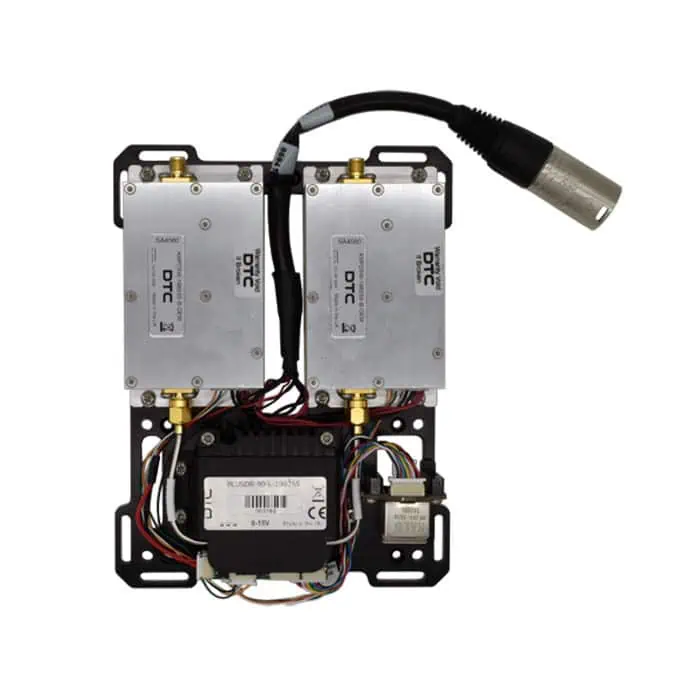

BluSDR-90

DTC’s BluSDR™-90 works best for long-range UAV products. With its small form factor and designed for environmental resistance, the BluSDR™-90 is designed for either mobile or fixed site applications, and is particularly suitable for drone platforms operating in long range applications up to 90km.

Based around DTC's SOL8SDR (software defined radio) architecture and offering a full 2x5W of output power, BluSDR™-90 includes MANET IP Mesh capability to allow up to 144 nodes in a self-healing network using DTC's industry leading MeshUltra-X™ waveform.

BluSDR™-90 includes a rich set of interface options including Ethernet, USB, serial data, built in GPS receiver (boxed variant), audio and HD-SDI video inputs.

Features and Benefits:

  • 2x5W COFDM transceivers, 10W total
  • Ideal for long range applications up to 90km
  • Rugged IP66 design for environmental resistance (boxed variant)
  • Lightweight variant for weight critical applications
  • MeshUltra™ MANET waveforms included to support up to 144 nodes in a self forming self healing Mesh network
  • Optional AES128/256 encryption (accredited to FIPS140-2 for MeshUltra™ waveforms)
  • USB support for peripherals such as 3G/4G/Wi-Fi dongles
  • RNDIS support for Ethernet over USB
  • Data capacity up to 90Mbps in 20MHz channel bandwidth
  • Built-in video encoders
  • Built-in GPS receiver (boxed variant)
  • Interlink mode for enhanced capability and large scale systems
  • 64GB built-in storage
