BluSDR-6

Weighing 0.9oz/26g, DTC’s BluSDR™-6 is designed specifically for size and weight critical UxV applications, and is particularly suitable for small drone platforms operating in short range applications up to 6km in range.

Based around DTC's SOL8SDR (software defined radio) architecture and offering up to full 2x200mW output power (frequency dependent), BluSDR™-6 includes MANET IP Mesh capability to allow up to 144 nodes in a self-healing network using DTC's industry leading MeshUltra-X™ waveform.

With two USB interfaces capable of supporting USB cameras and headsets as well as Wi-Fi, cellular and Ethernet dongles, BluSDR™-6 can also be connected to a range of host devices using RNDIS Ethernet over USB connectivity.

Features and Benefits:

  • Up to 2x200mW COFDM transceivers, 400mW total (frequency dependent)
  • Ideal for short range applications up to 6km
  • MeshUltra™ MANET waveforms included to support up to 144 nodes in a self forming self healing Mesh network
  • Optional AES128/256 encryption (accredited to FIPS140-2 for MeshUltra™ waveforms)
  • USB support for peripherals such as 3G/4G/Wi-Fi dongles
  • 128GB built-in storage
  • RNDIS support for Ethernet over USB
  • Compact packaging with ultra-miniature connectors
  • Low power consumption, typically 4W not including camera
  • Exceptionally small size and weight

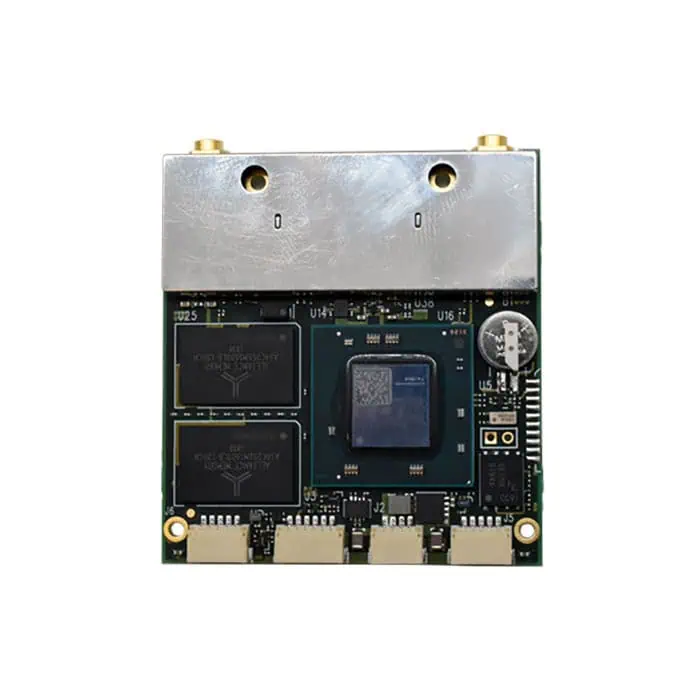

  • Available as a core PCB or a boxed module
