Software Defined Radios (SDRs) and IP Mesh Radios for UAV, Drones, UGVs and Robotics
BluSDR-200 Low SWAP-C 2x15W OEM radio module for extra-long range wireless communications
BluSDR-200

Low SWAP-C 2x15W OEM radio module for extra-long range wireless communications

Visit Website Contact
Saved
Save

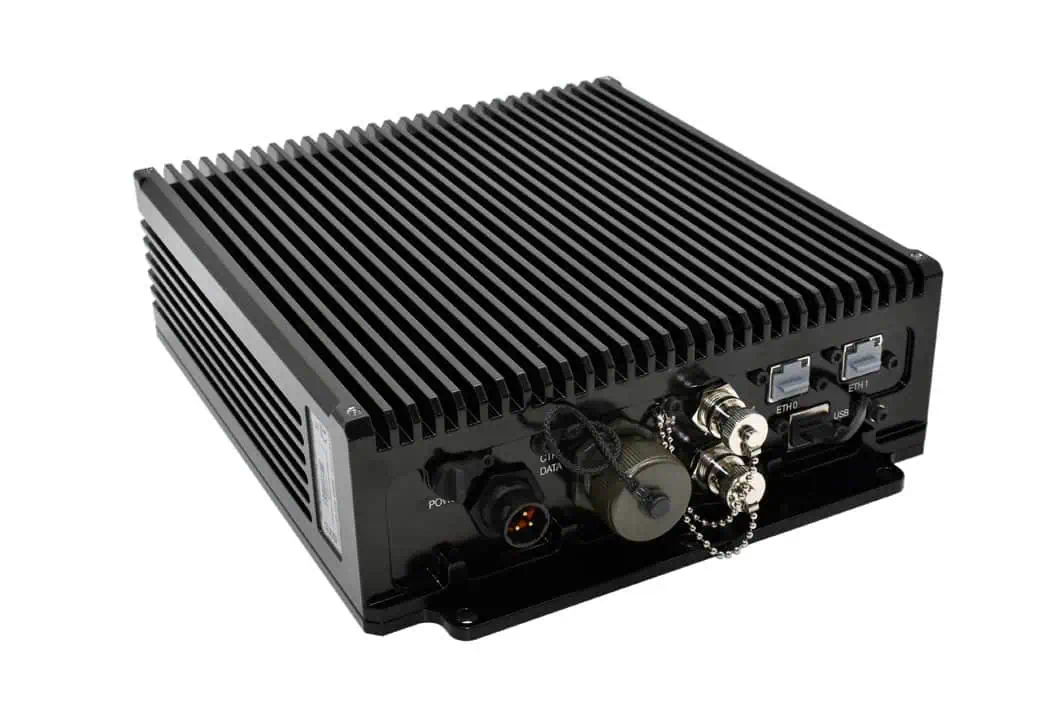

BluSDR-200

DTC's highest power Mesh product, BluSDR™-200 provides up to 30W total RF power output. BluSDR™-200 is designed for either mobile or fixed site applications, and is particularly suitable for drone platforms operating in extra-long range applications up to 200km.

Based around DTC's SOL8SDR (software defined radio) architecture and offering a full 2x15W of output power, BluSDR™-200 includes MANET IP Mesh capability to allow up to 144 nodes in a self-healing network using DTC's industry leading MeshUltra-X™ waveform.

BluSDR™-200 includes a rich set of interface options including Ethernet, USB, serial data, audio and dual HD-SDI video inputs.

Features and Benefits:

  • 2x15W COFDM transceivers, 30W total
  • Ideal for extra long range applications up to 200km
  • Rugged IP66 design for environmental resistance
  • MeshUltra™ MANET waveforms included to support up to 144 nodes in a self forming self healing Mesh network
  • Optional AES128/256 encryption (accredited to FIPS140-2 for MeshUltra™ waveforms)
  • USB support for peripherals such as 3G/4G/Wi-Fi dongles
  • RNDIS support for Ethernet over USB
  • Data capacity up to 90Mbps in 20MHz channel bandwidth
  • Built-in video encoders
  • Interlink mode for enhanced capability and large scale systems
  • 64GB built-in storage
