Cortex HF50 Hybrid Engine

Two-stroke hybrid heavy fuel (or Petrol) engine for UAVs

Visit Website Send Message

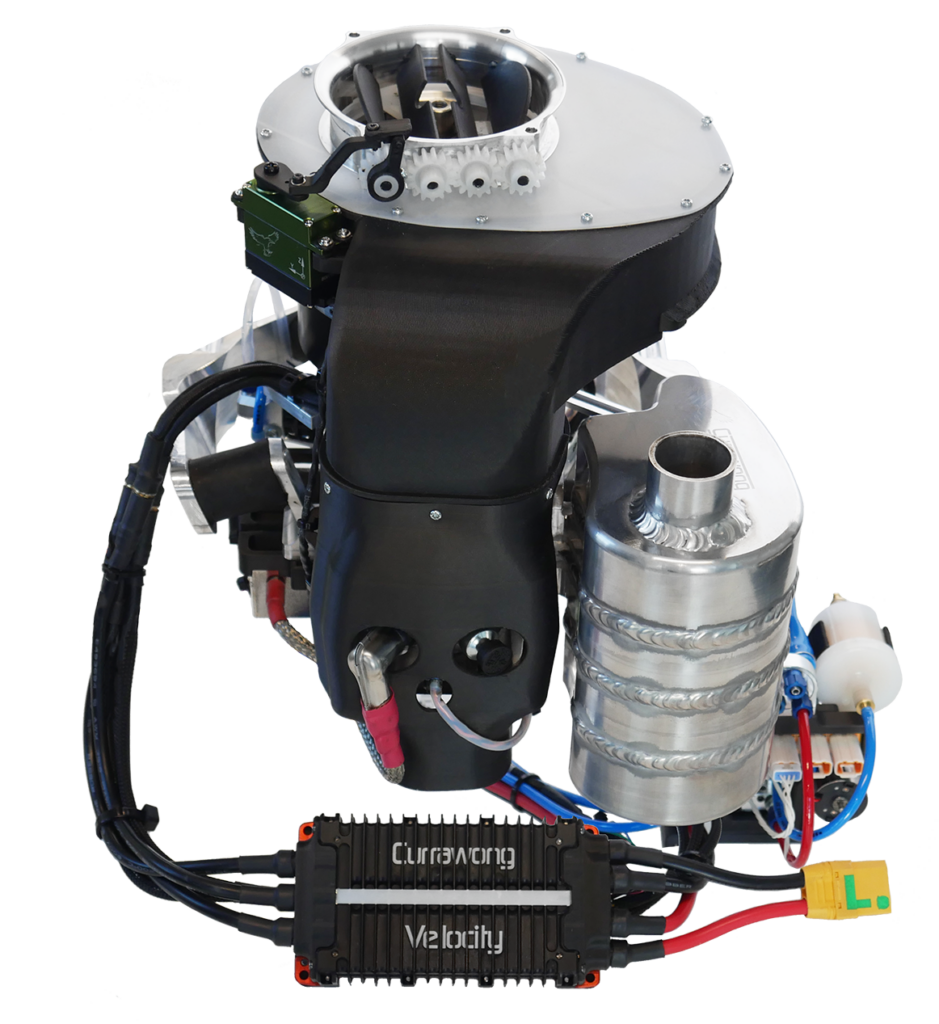

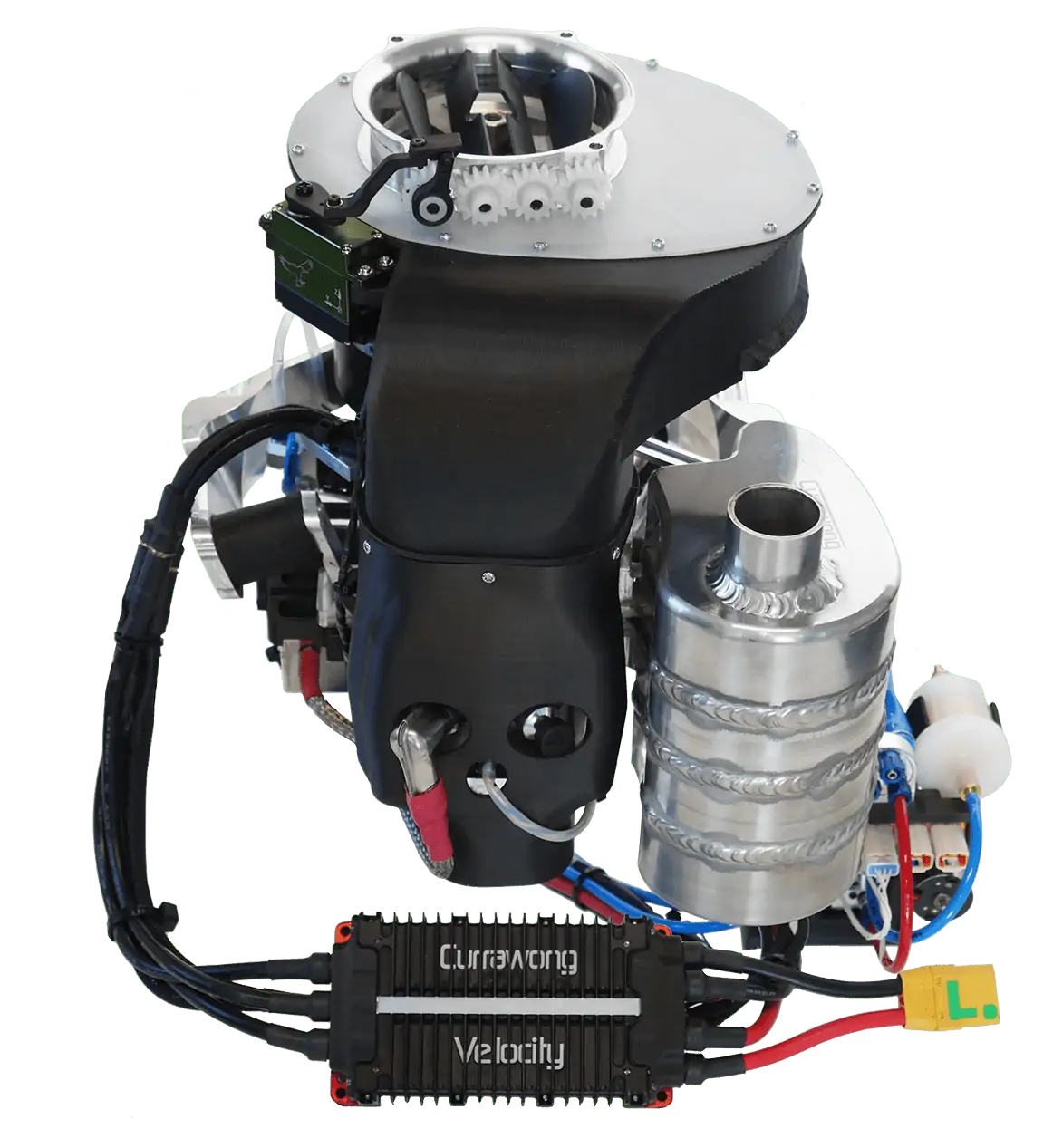

Cortex HF50 Hybrid Engine Hybrid Heavy Fuel (or Petrol) Engine for Drones

The Cortex HF50 Series Hybrid is a newly developed two-stroke hybrid heavy fuel (or Petrol) UAV engine system from Currawong Engineering.

Based on the industry proven Currawong Corvid-50, the Cortex HF50 is a heavy fuel engine with hybrid power capability. The Cortex HF50 Series Hybrid is suitable as a replacement for batteries, gasoline engine or existing hybrid power systems for UAV platforms with electrically driven motors such as multi-rotors.

The hybrid architecture of the system allows for bidirectional power flow between the electrical system and the engine. During normal operation the engine can provide power to onboard electrical systems and charge batteries while providing prop power for flight. This allows for lower battery weight and better aircraft range. Power can also be directed from the battery system to the engine for self-starting, power boost during flight and in-air engine restart.

UMAN-VP4F Heavy Fuel (Petrol variant also available)

Through research Currawong discovered previous investigations into the use of Isopar as an alternative fuel for gasoline powered engines. Isopar maintains the benefit of a high octane level while providing a high flash point, an important safety consideration and one of the primary benefits of heavy fuel. It also has lower risks for handling and is essentially odourless making it much more pleasant for operators.

Part Number CE2169
Engine Type 2-stroke Series Hybrid
Displacement 50cc
Weight 4.7kg (10.36lb) (Engine, Generator, Low Noise Exhaust, cooling system, Isolation Mount, EFI inc. Triplex pump, Transmuter and harness)
Fuel Type UMAN-VP4F Heavy Fuel (or Petrol)
Fuel Consumption 600 g/kW-hr (electrical) at 5000 RPM & 50% throttle*
Power 2.4kW (electrical) at 7500RPM
Generator 130 KV
Ignition CDI
Cooling Air-Cooled
Ambient Operating Range -20°C – 45°C+
TBO 300+ hrs
Recommended MTOW 40kg
Transmuter Voltage 60V/14S
Transmuter Current (Sustained/Peak) 150A/300A
Transmuter Power 7.5kW
Transmuter Operating Temperature -20°C – 100°C (Internal)
*This fuel may change performance numbers of the above and is dependent on the application

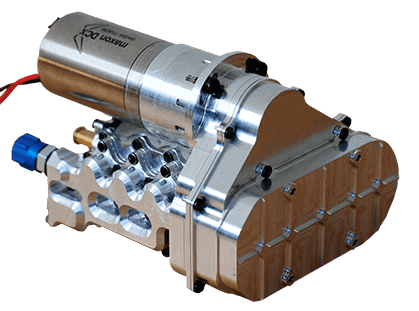

Triplex Pump

In order to suitably atomise UMAN-VP4F heavy fuel the Cortex-50 engine makes use of the Currawong designed Triplex pump.

The Triplex fuel pump’s unique three piston design provides high pressure, smooth fuel delivery and a tightly integrated control system allows for precise regulation of fuel delivery.

The Triplex pump is self-priming and capable of metering fuel flow with <1% error.

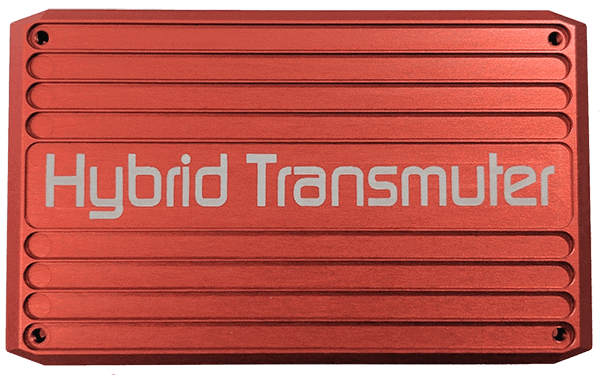

Hybrid Transmuter

The Currawong designed Hybrid Transmuter maintains a balance of energy flow through the system, managing battery charging and the changing load requirements of the UAV determining whether to deliver power from the engine to the batteries or from the batteries to the engine.

Based on the high power, high reliability Currawong Velocity ESC the Currawong Hybrid Transmuter provides the same unmatched level of robustness, testing and traceability.
