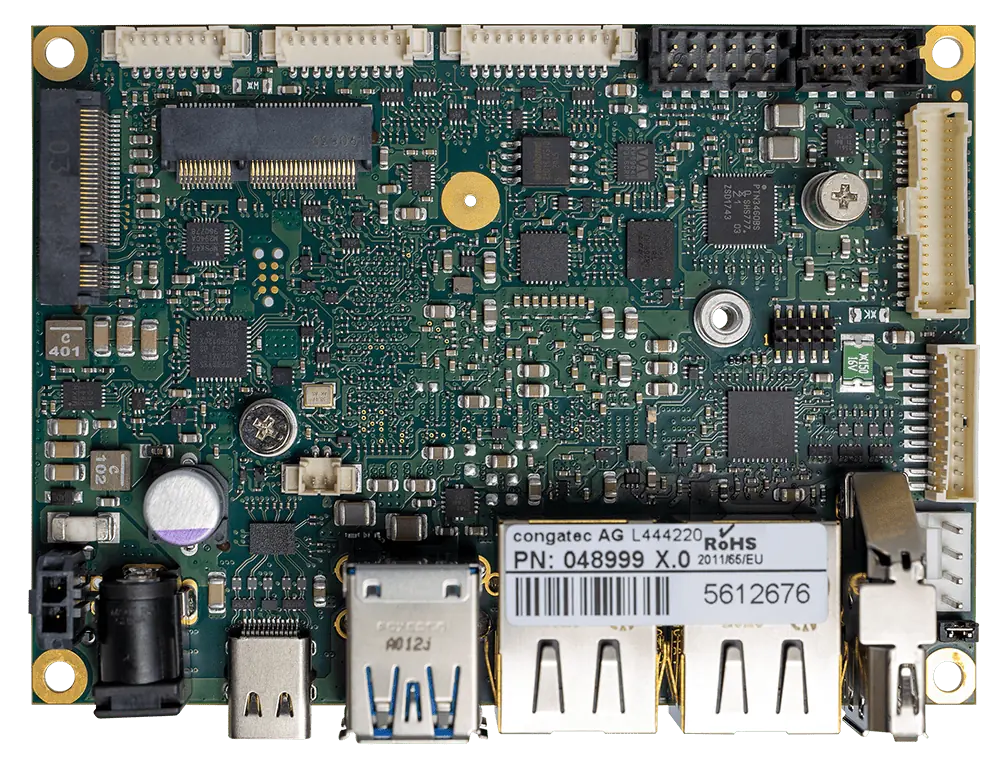

conga-PA7 Pico-ITX SBC with 11th Gen Intel Atom/Celeron/Pentium CPU

Pico-ITX SBC with 11th Gen Intel Atom/Celeron/Pentium CPU

Visit Website Send Message

The conga-PA7 is a high-performance SBC designed to the Industrial Pico-ITX form factor, with a SWaP-optimized footprint of just 100x72mm, and options for time-sensitive networking and time-coordinated computing for improved real-time capabilities. It features a choice of 11th-generation Intel Atom, Celeron and Pentium CPU options as well as Intel UHD Graphics capabilities and up to 16 GBytes of LPDDR4x RAM.

The industrial-grade single-board computer takes a 12V power input, and can handle operating temperatures from 0 to +60°C as standard, with an extended -40 to +85°C variant also available.


Dimensions 100 x 72mm
CPU Intel® Celeron® J6413
Intel® Pentium® J6426
Intel® Atom® x6414RE
Intel® Atom® x6425RE
Intel® Atom® x6212RE
Intel® Atom® x6211E
Intel® Atom® x6413E
Intel® Atom® x6425E
Graphics Intel Gen 10 UHD Graphics
DRAM Up to 4 Channels onboard LPDDR4x with up to 4267 MT/s, max. 16 GB
Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit with TSN support and Out-Of-Band Management
2x real-time trigger
Internal I/O 2x USB 2.0
1x LVDS 18/24bit or eDP (opt) or MIPI-DSI (opt)
2x COM (RS232/422/485)
3x Feature Connector
1x M.2 key ID B type 2280 (2 PCIe lanes/SATA, USB 2.0)
M.2 key ID E (1 PCIe lane, USB 2.0)
2x CAN (opt.)
External I/O 1 x DisplayPort DP++
2 x LAN RJ45
1 x USB 3.1 Gen2 Type C (with Power Delivery and DP)
1 x DC-In (external input)
2 x USB 3.1 Gen2 Type A
