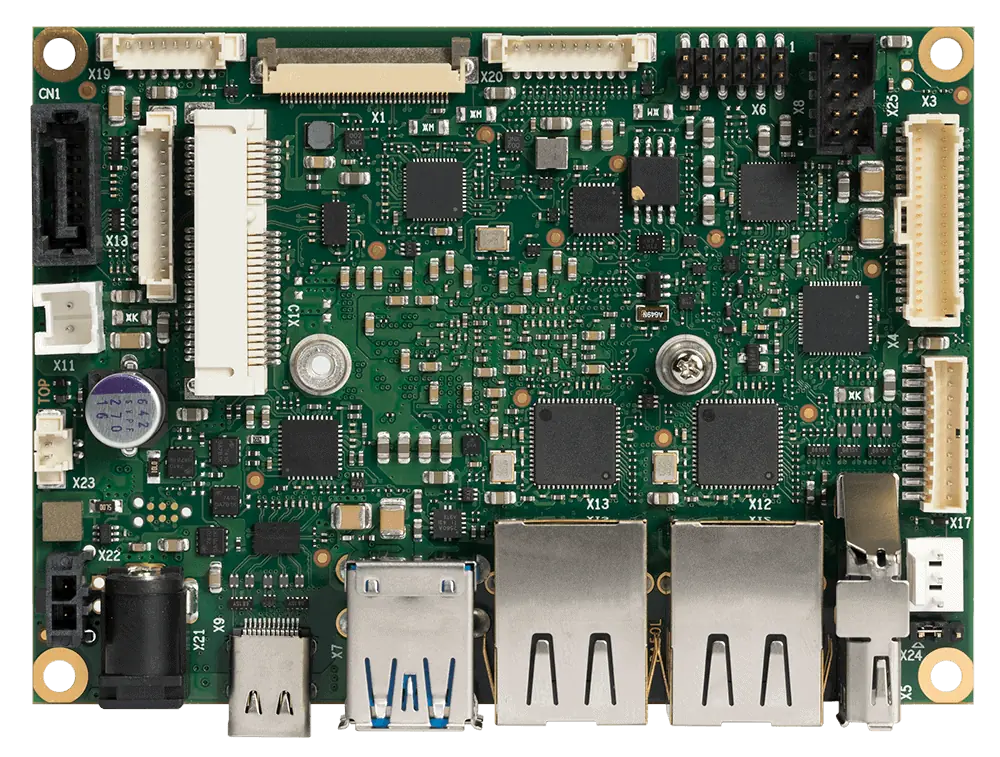

conga-PA5 Pico-ITX SBC with 5th Gen Intel Atom/Celeron/Pentium CPU

Pico-ITX SBC with 5th Gen Intel Atom/Celeron/Pentium CPU

Visit Website Send Message

The conga-PA5 is a high-performance SBC designed to the Industrial Pico-ITX form factor, with a SWaP-optimized footprint of just 100x72mm, long-life components for 24/7 robotics applications, and a low TDP of 6 to 12W. It features a choice of 5th-generation Intel Atom, Celeron and Pentium CPU options as well as Intel HD Graphics capabilities and up to 8 GBytes of LPDDR4 RAM.

The industrial-grade single-board computer takes a 12V power input, and can handle operating temperatures from 0 to +60°C as standard, with an extended -40 to +85°C variant also available.


Dimensions 100 x 72mm
CPU Intel® Atom™ x7-E3950
Intel® Atom™ x5-E3940
Intel® Atom™ x5-E3930
Intel® Celeron® N3350
Intel® Celeron® J3455
Intel® Pentium® N4200
Graphics Intel Gen 9 HD Graphics with support for DirectX12
DRAM Up to 4 Channels onboard LPDDR4 (V1.1) with up to 2400 MT/s, max. 8 GB
Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit
Intel Gigabit Ethernet i211 controller (i210 for industrial temperature)
Internal I/O 1x LVDS (18/24 bit)
1x miniPCIe or mSATA full size
1x SATA (6G) (with auxiliary +5V power connector for 2.5" HDD)
2x USB 2.0
1x S/PDIF Out
2x COM (RS232 / RS-485 / RS422)
3x Feature Connector
1x microSD card slot MIPI CSI-2
External I/O 2 x USB 3.0
1 x DisplayPort
2 x LAN RJ45
1 x USB 3.0 Type C (with PD and DP++)
1 x DC-In (only for commercial variants)
