conga-PA3 Pico-ITX SBC with 3rd Gen Intel Atom CPU

Pico-ITX SBC with 3rd Gen Intel Atom CPU

Visit Website Send Message

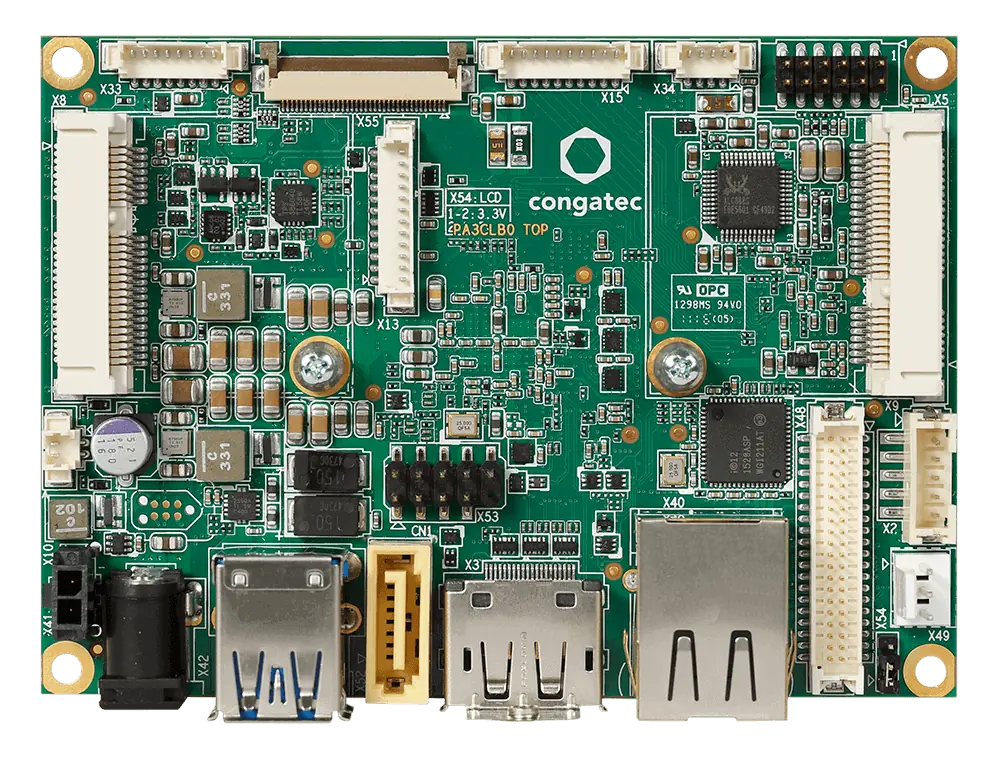

The conga-PA3 is a high-performance SBC designed to the Industrial Pico-ITX form factor, with a footprint of just 100x72mm, long-life components for 24/7 robotics applications, and a low TDP of 5 to 10W. It features a choice of 3rd-generation Intel Atom CPU options as well as Intel HD Graphics capabilities and up to 4 GBytes of dual-channel DDR3L RAM.

The industrial-grade single-board computer takes a 12V power input, and can handle operating temperatures from 0 to +60°C as standard, with an extended -40 to +85°C variant also available.


Dimensions 100 x 72mm
CPU Intel® Atom™ E3845
Intel® Atom™ E3826
Graphics Intel Gen 7 HD Graphics with support for DirectX11.1
DRAM Max. 4GB single channel DDR3L-1600
Ethernet LAN Gbit / 100 Mbit / 10 Mbit
Intel Gigabit Ethernet i211 controller (I210 for industrial temperature)
Internal I/O 1x mPCIe Half Size
1x mPCIe Half Size shared with mSATA
1x mSATA Half Size shared with miniPCIe
2x USB 2.0
1x LVDS (2x24 bit)
1x COM (RS-232)
1x Feature Connector
2x SATA (3G)
External I/O 1 x DisplayPort
1 x LAN RJ45
2 x USB 3.0
1 x DC-In (external input)
