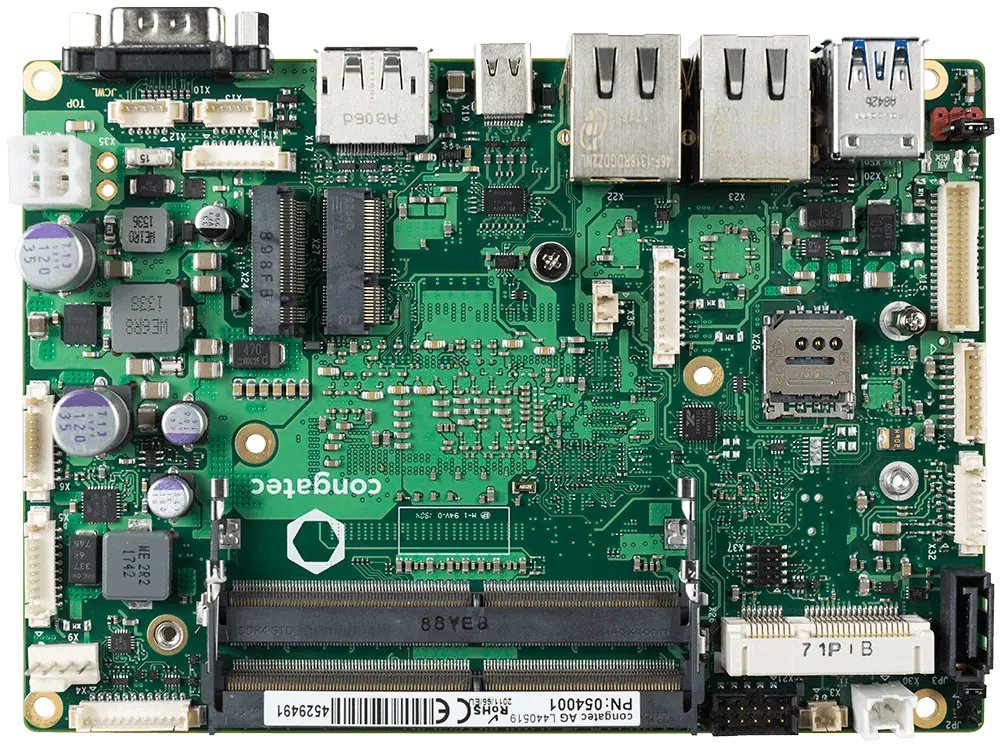

conga-JC370
The conga-JC370 is a high-performance SBC designed to the 3.5" form factor, with a SWaP-optimized footprint of just 146x102mm, and multiple expansion card sockets and video interfaces. It features a choice of 8th-generation Intel Core and Celeron CPU options as well as Intel UHD Graphics capabilities and up to 64 GBytes of dual-channel DDR4 RAM.
The industrial-grade single-board computer takes a wide range of power inputs from 12 to 24V. It can handle operating temperatures from 0 to +60°C, and this can be extended to -25 to +80°C or -40 to +85°C upon request.
Specifications:
| Dimensions | 146x102mm |
| CPU | Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE Intel® Celeron® 4305UE |
| Graphics | Intel UHD Graphics 610/620 (up to 24 execution units) |
| DRAM | Dual channel DDR4 up to 2400 MT/s, 2x SO-DIMM , max 2x 32 Gbyte |
| Ethernet | Intel® 2.5GbE with TSN support under Linux Intel® 1GbE with AMT support (AMT with i7 or i5 only) |
| Internal I/O | LVDS 24bit Dual channel (or opt. eDP) opt. 2nd LVDS via external adapter SATA/eSATA/SATADOM 2x USB 2.0 internally COM port (RS232/422/485) 2 x 4 pin COM ports (RS232) opt. CAN 8 bit general purpose I/O Management I/O (opt. 8 GPIOs) I²C/SM Bus |
| External I/O | DisplayPort++ USB 3.1 Gen.2 Type C (PD and DP Alt. Mode) Dual USB 3.1 Gen.2 Type A Dual LAN RJ45 COM DE9 RS232/422/485 |
