conga-IC370

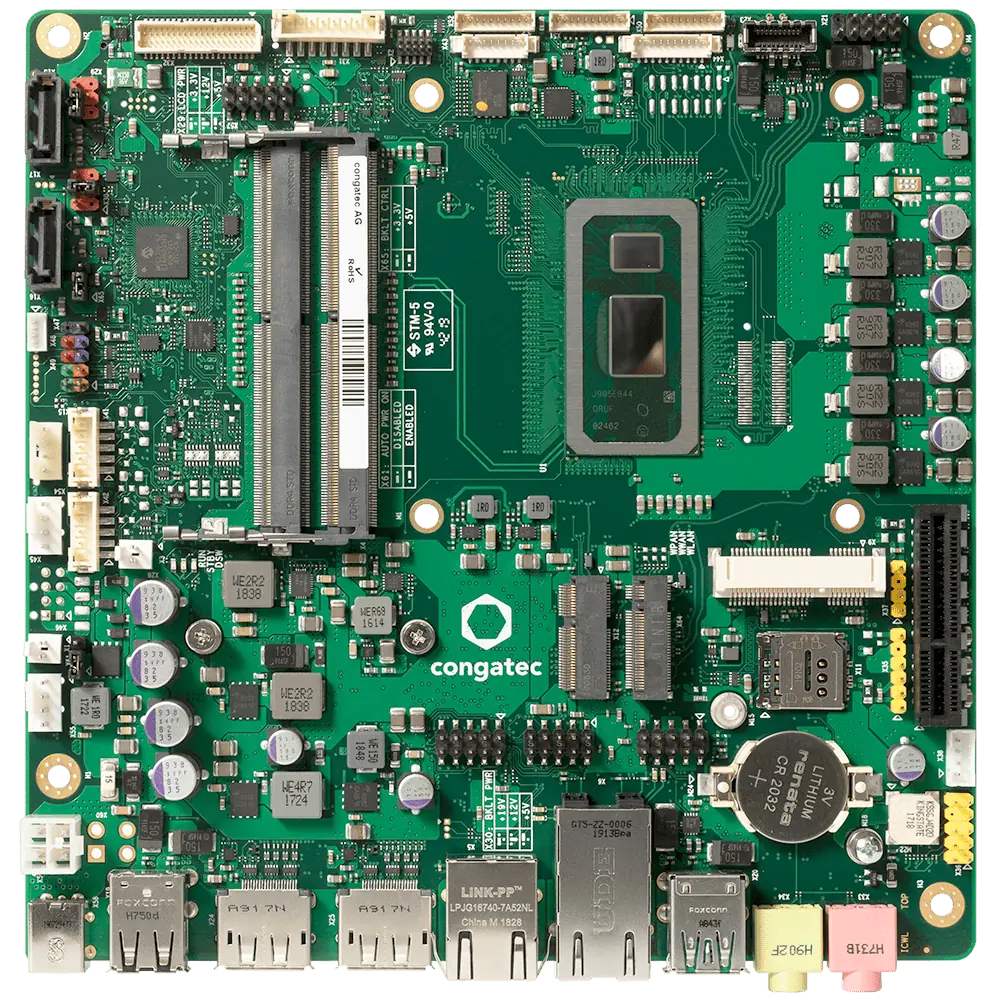

The conga-IC370 is a Thin Mini-ITX SBC with a low profile and small footprint of just 170 x 170 x 20mm, making it ideal for space-constrained applications. It features a variety of Intel Core CPU options as well as Intel UHD Graphics capabilities and up to 64 GBytes of dual-channel DDR4 RAM.
The industrial-grade single-board computer takes a wide range of power inputs from 12 to 24V. It can handle operating temperatures from 0 to +60°C, and this can be extended to -25 to +80°C or -40 to +85°C upon request.
Specifications:
| Dimensions | 170 x 170 x 20mm |
| CPU | Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE Intel® Celeron® 4305UE |
| Graphics | Intel® UHD-Graphics 610/620 Graphics, up to 24 Execution Units |
| DRAM | Dual channel DDR4 up to 2400 MT/s | 2x SO-DIMM | up to 2x 32 GByte |
| Ethernet | Intel® 2.5GbE with TSN support under Linux Intel® 1GbE with AMT support (AMT with i7 or i5 only) |
| Expansion Sockets | PCIe slot (PCIe x4) miniPCIe card slot full/half-size (PCIe/USB/opt. SIM) M.2 key B size 2242/3042/2280 (PCIe x2/USB/SATA/SIM) M.2 key E size 2230 (PCIe/CNVi/USB) microSIM card slot microSD card slot |
| Internal I/O | LVDS 24bit Dual channel or eDP opt. internal DP (shared with external DP++) 2x SATA/eSATA/SATADOM (6Gbs) with support for VCC pin 7 and 8 Dual USB 2.0 USB 3.1 Gen. 2 2x COM ports (RS232/422/485) 2x COM ports (RS232) 2x 8Bit general purpose I/O opt. Feature connector (Mgmt. pins) I²C/SM Bus |
| External I/O | 1x DC-In (12-24 V) 2x USB 3.1 Gen.2 (10 Gb/s) 2x DisplayPort DP++ 1x LAN Gbit 1x LAN 2.5 Gbit 2x USB 2.0 Audio In Line Out |
