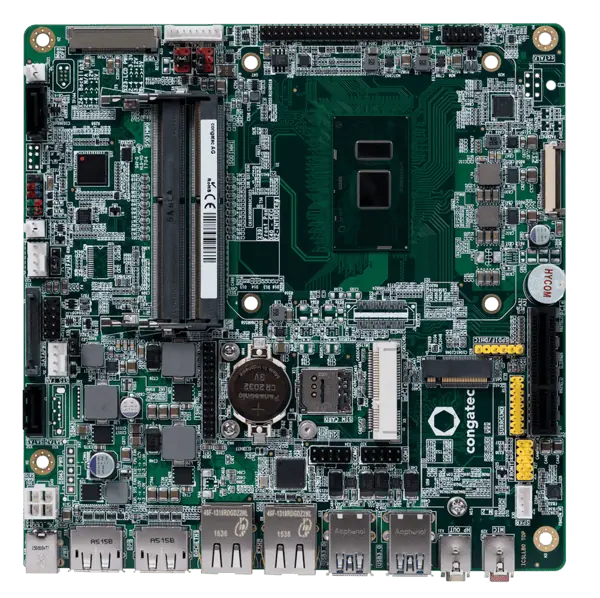

conga-IC175 Thin Mini-ITX SBC with 7th Gen Intel Core Mobile CPU

Thin Mini-ITX SBC with 7th Gen Intel Core Mobile CPU

Visit Website Send Message

The conga-IC175 is a high-performance SBC designed to the Industrial Thin Mini-ITX form factor, with a footprint of just 170 x 170 x 20mm that makes it ideal for SWaP-limited drones and robotics. It features a variety of 7th-generation mobile Intel Core CPU options as well as Intel HD Graphics capabilities and up to 32 GBytes of dual-channel DDR4 RAM. The board is also ready for Intel Optane memory technology on M.2.

The industrial-grade single-board computer takes a wide range of power inputs from 12 to 24V, and can handle operating temperatures from 0 to +60°C.


Dimensions 170 x 170 x 20mm
CPU Intel® Core™ i7-7600U
Intel® Core™ i5-7300U
Intel® Core™ i3-7100U
Intel® Celeron® 3965U
Graphics Integrated Intel HD Graphics 600 series with dynamic frequency up to 1.15 GHz
DRAM Support for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s) | max. 2x 16 GByte
Ethernet Dual LAN Gbit / 100 Mbit / 10 Mbit
1x Intel Gigabit Ethernet PHY i219LM (with AMT support)
1x Intel Gigabit Ethernet Controller i211 (i210 optional)
Internal I/O 1x PCIe x4 slot (gen3)
1x Full/Half-size Mini PCIe slot
M.2 key B 2242/3042 connector (2x PCIe lanes for Intel® Optane™ key)
3x SATA (6G), one shared with M.2
4x USB 2.0 1x LVDS (2x24 bit)
1x Embedded DisplayPort (x4)
2x Serial Port COM2 (opt. as ccTALK)
1x Feature connector - congatec custom (8 Bit General Purpose I/O)
1x microSIM card slot
1x microSD card slot
1x I²C Bus
External I/O 1 x DC-In (external input) 12-24 V
2 x DisplayPort
1 x Audio In
1 x Line Out
2 x LAN RJ45
4 x USB 3.0
