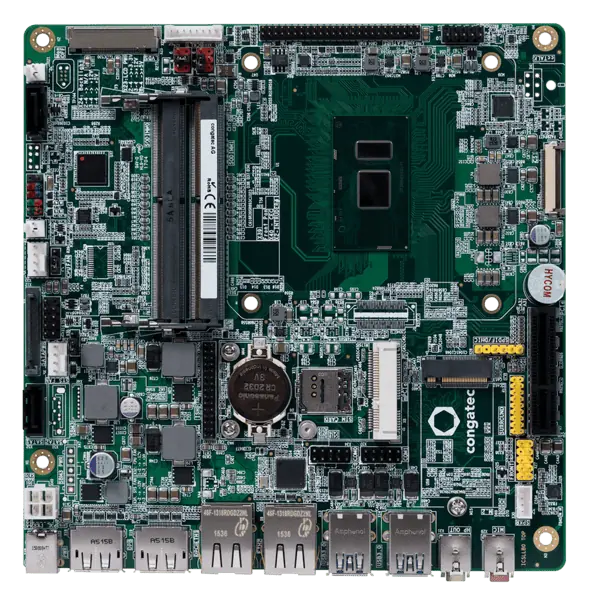

conga-IC170
The conga-IC170 is a high-performance SBC designed to the Industrial Thin Mini-ITX form factor, with a footprint of just 170 x 170 x 20mm that makes it ideal for SWaP-limited drones and robotics. It features a variety of 6th-generation mobile Intel Core CPU options as well as Intel HD Graphics capabilities and up to 32 GBytes of dual-channel DDR4 RAM.
The industrial-grade single-board computer takes a wide range of power inputs from 12 to 24V, and can handle operating temperatures from 0 to +60°C.
Specifications:
| Dimensions | 170 x 170 x 20mm |
| CPU | Intel® Core™ i7-6600U Intel® Core™ i5-6300U Intel® Core™ i3-6100U Intel® Celeron® 3955U |
| Graphics | Integrated Intel HD Graphics 500 series with dynamic frequency up to 1.05 GHz |
| DRAM | Support for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s) | max. 2x 16 GByte |
| Ethernet | 1x Intel I219-LM (GbE PHY) 1x Intel I211-AT (GbE controller) |
| Internal I/O | 3x SATA (6G, can be configured as RAID) 4x USB 2.0 1x LVDS (2x24 bit) 1x Embedded DisplayPort (x4) 1x Feature connector - congatec custom (8 Bit General Purpose I/O) 2x Serial Port COM2 (opt. as ccTALK) 1x miniPCI Express 1x M2 (Supported card sizes: 3042 and 2242) |
| External I/O | 1 x Line Out 2 x LAN RJ45 1 x DC-In (external input) 12-24 V 2 x DisplayPort 1 x Audio In |
