CHC Navigation offers to geospatial professionals a premium high-performance, vehicle-independent mobile mapping solution to capture 3D mass data in continuously changing world environments. Whatever the application, the Alpha3D mobile mapping system significantly increases your return-on-investment by completing work quicker and more accurately.

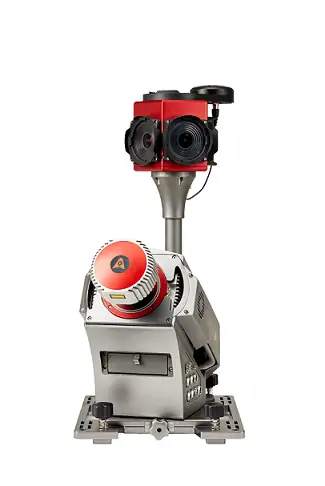

The Alpha3D combines state-of-the-art high-performance hardware, such as long range, ultra-high speed, precise laser scanner, high-resolution HDR panoramic camera in combination with advanced GNSS receiver and high precision IMU, in one instrument with lightweight and compact but in same time rugged design. All these features keep Alpha3D as one of most innovative mobile mapping system in the market today.
| Size | 51.3 x 31 x 67.2 cm 20.08" x 12.2" x 26.37" |
| Weight | 19.2 kg |
| Power Consumption | 240W |
| Accuracy | < 0.030 m RMS typical (horizontal) < 0.025 m RMS typical (vertical) |
| LiDAR scan speed | Up to 250 scans/sec |
| Camera resolution | 30 MP (5 MP x 6 sensors) |
| IMU gyro bias instability | ≤ 0.1 deg/hr, 1σ (max) ≤ 0.025 deg/hr, 1σ (typical) |
